Hood Lock Control: Components

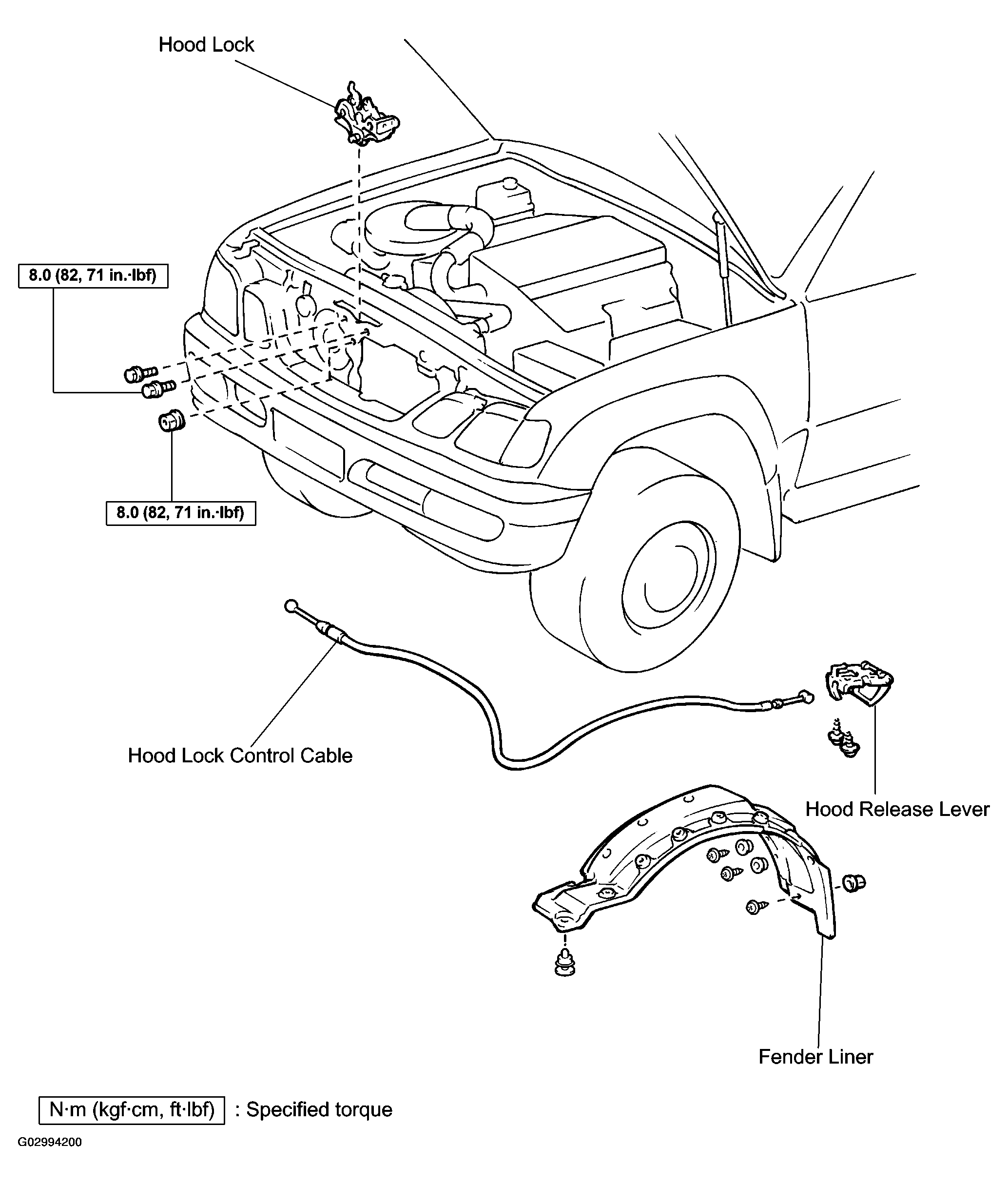

Fig 1: Identifying Hood Lock Control Components Location
G02994200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
