Back Door Glass: Components

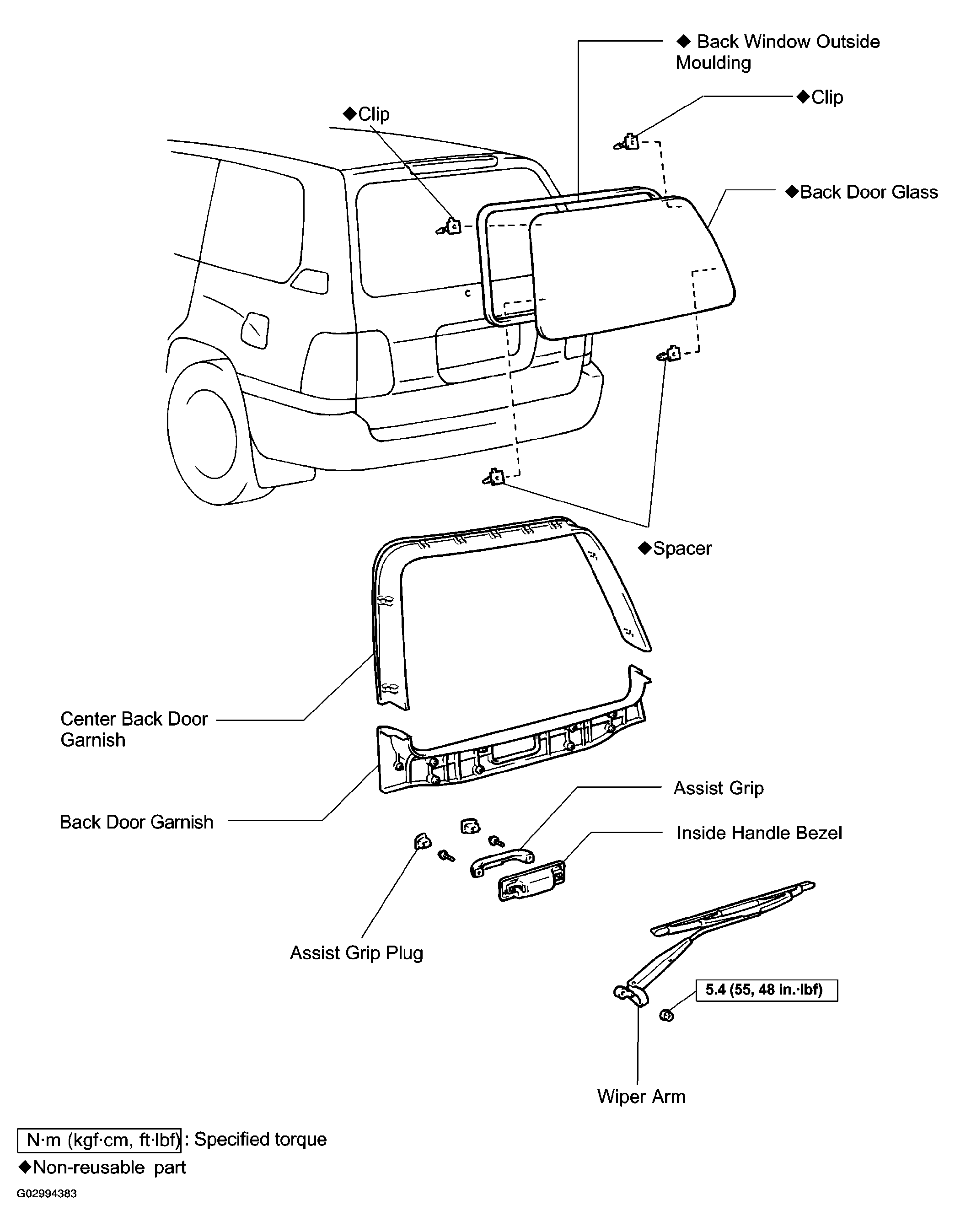

Fig 1: Identifying Back Door Glass And Component

G02994383

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
