How To Proceed With Troubleshooting

HINT:

The ECU is connected to the multiplex communication system. Therefore, be sure to check that there is no troubles in the multiplex communication system before performing the troubleshooting.

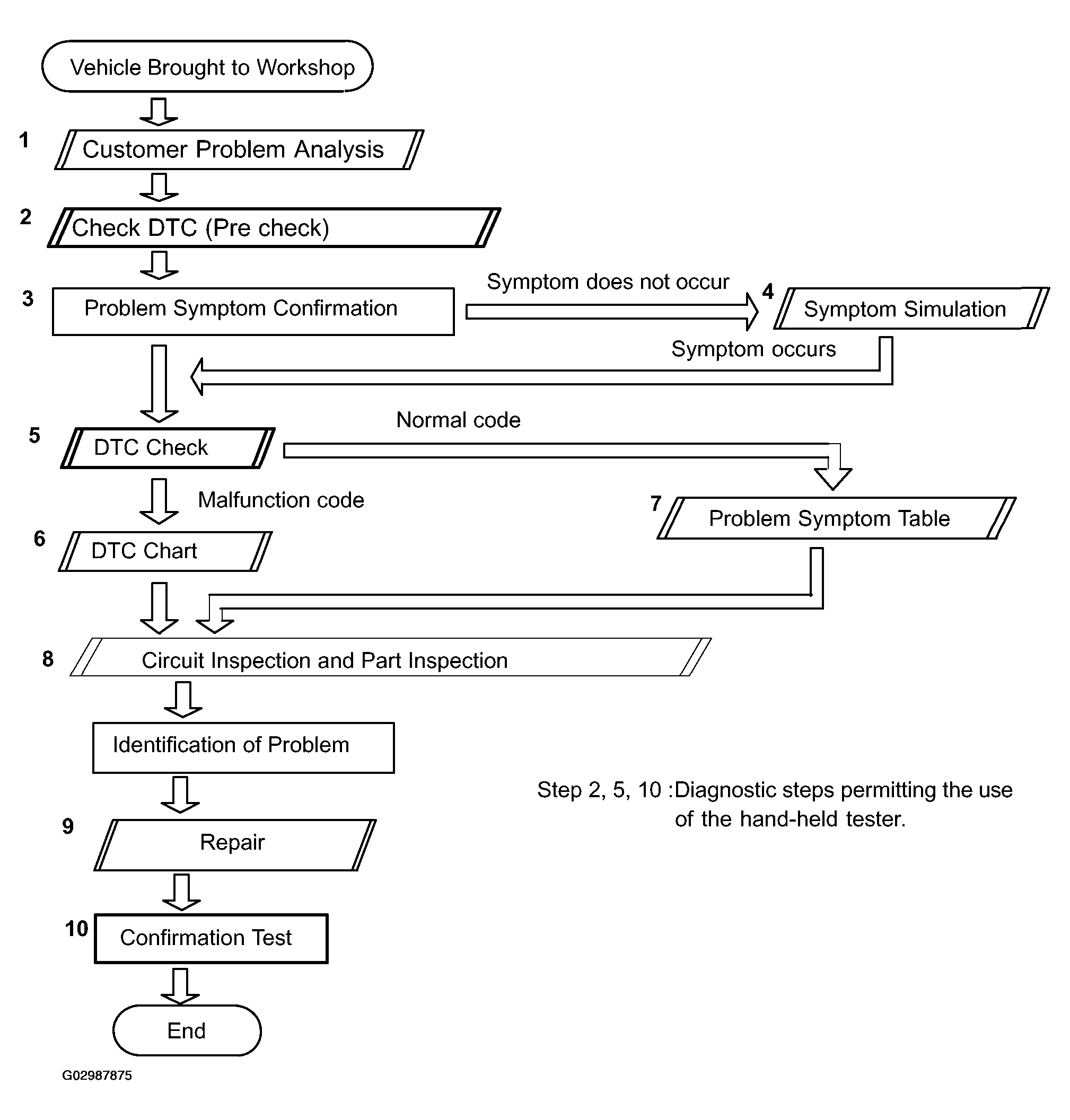

Fig 1: Driver Door Control System Troubleshooting Flowchart
