Engine Immobilizer System: Location

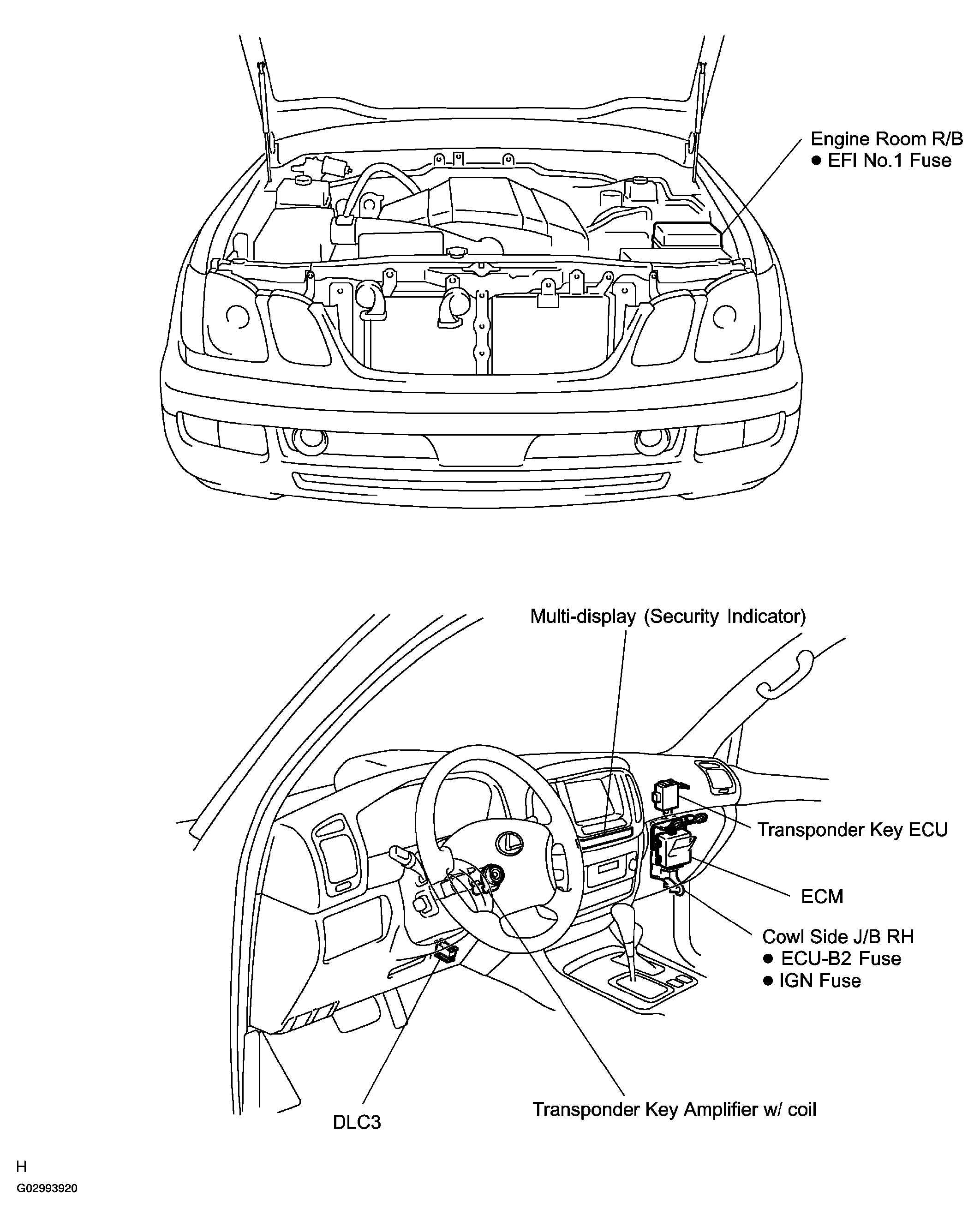

Fig 1: Identifying Engine Immobilizer System Components Location

G02993920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
