Wireless Door Lock Control System
›
Location
Wireless Door Lock Control System: Location

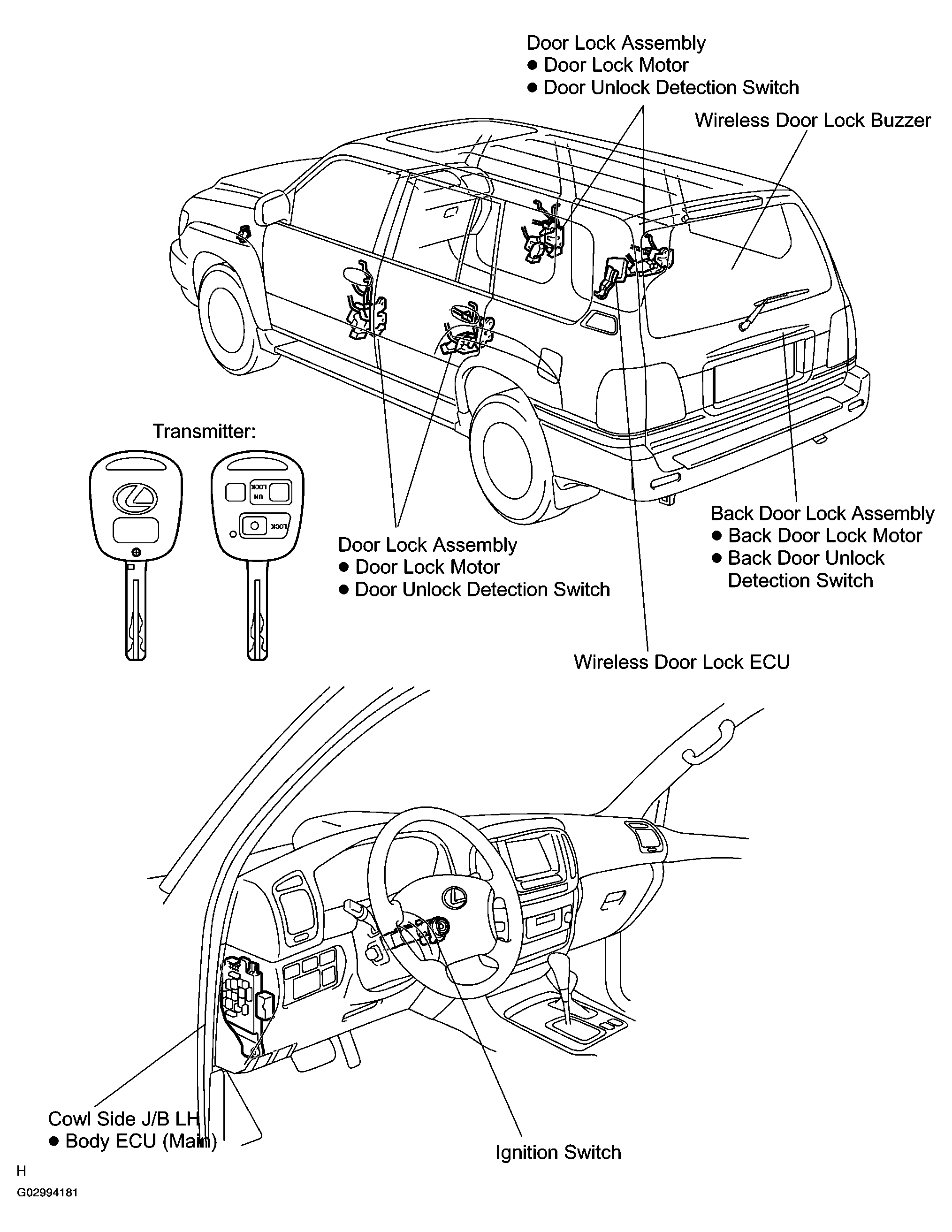

Fig 1: Identifying Component Location Of Wireless Door Lock Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
