Body Outside Moulding: Installation

1. Using a heat light, heat the body mounting surface to 40 - 60 °C (104 - 140 °F).
   NOTE: Do not heat the body excessively.
2. Remove adhesive tape from the body.
3. Wipe off stains with a cleaner.

If reusing the moulding.

1. Using a heat light, heat the moulding to 20 - 40 °C (68 - 86 °F).
   NOTE: Do not heat the moulding excessively.
2. Remove the adhesive tape from the moulding.
3. Wipe off stains with a cleaner.
4. Apply new adhesive tape to the moulding as shown in the illustration.

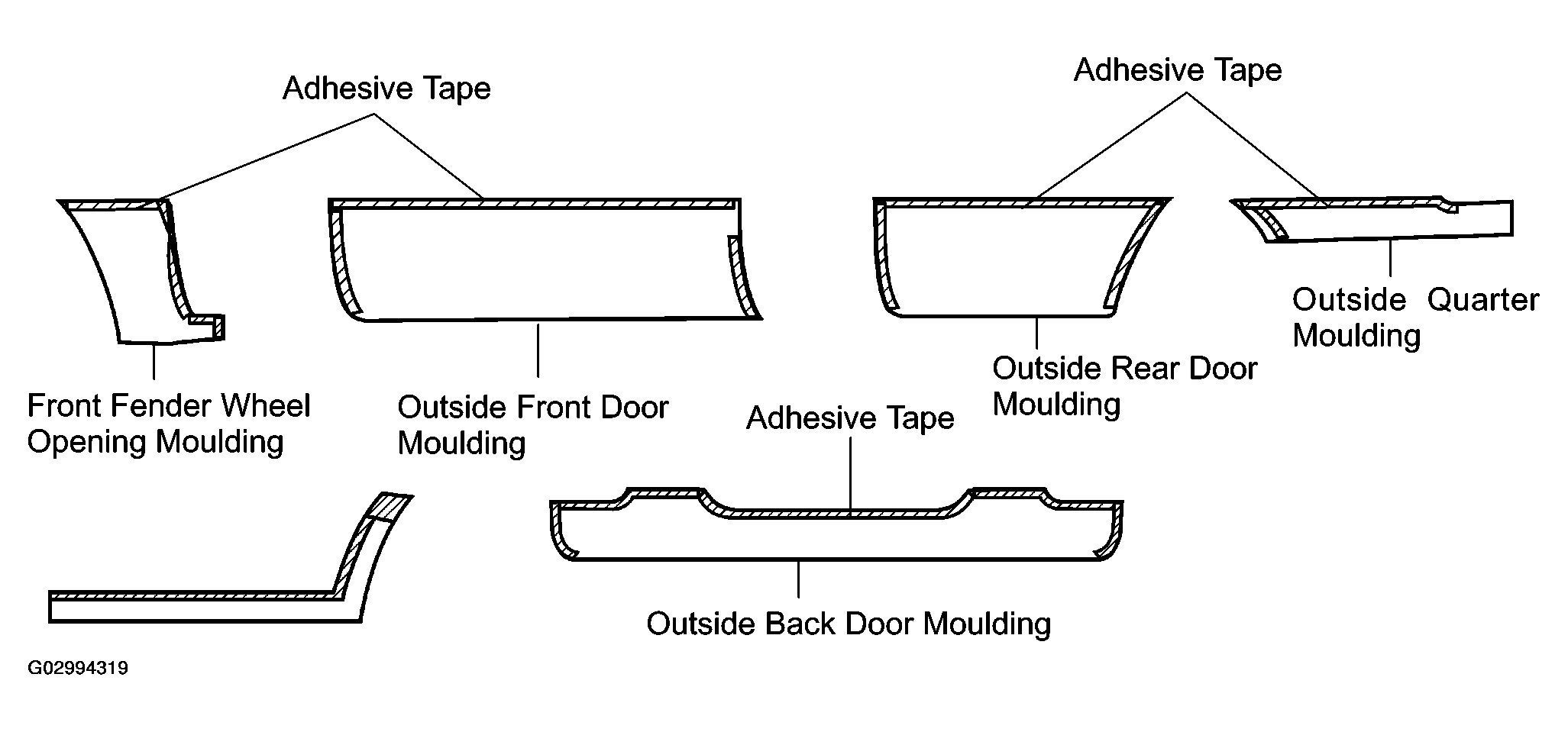

Fig 1: Identifying Adhesive Tape On Moulding

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a heat light, heat the body and the moulding.

   Body: 40 - 60 °C (104 - 140 °F)

   Moulding: 20 - 30 °C (68 - 86 °F)

   NOTE: Do not heat the moulding excessively.
2. Remove the moulding release sheet from the face of moulding.
   NOTE: When the moulding release sheet is removed, make sure that no dirt or dust can get onto the coated area.
3. Align the bosses with their corresponding holes in the body, and press firmly on the moulding.
   NOTE: Do not apply excessive force onto the moulding, but apply steady pressure with your thumbs.
4. Install the moulding.

Install the rocker panel moulding with the 10 screws.

Install the front mudguard with the 2 screws and the bolt.

Fig 2: Installing Front Mudguard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL SIDE STEP ASSEMBLY

Install the side step assembly with the 8 bolts.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

Fig 3: Installing Side Step Assembly (W/ Except Full Cover Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL RUNNING BOARD LIGHTS ASSEMBLY

Install the running board lights assembly with the 8 bolts and connect the connector.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

Fig 4: Installing Running Board Lights Assembly (W/ Running Board Lights)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
