Fuel Lid: Components

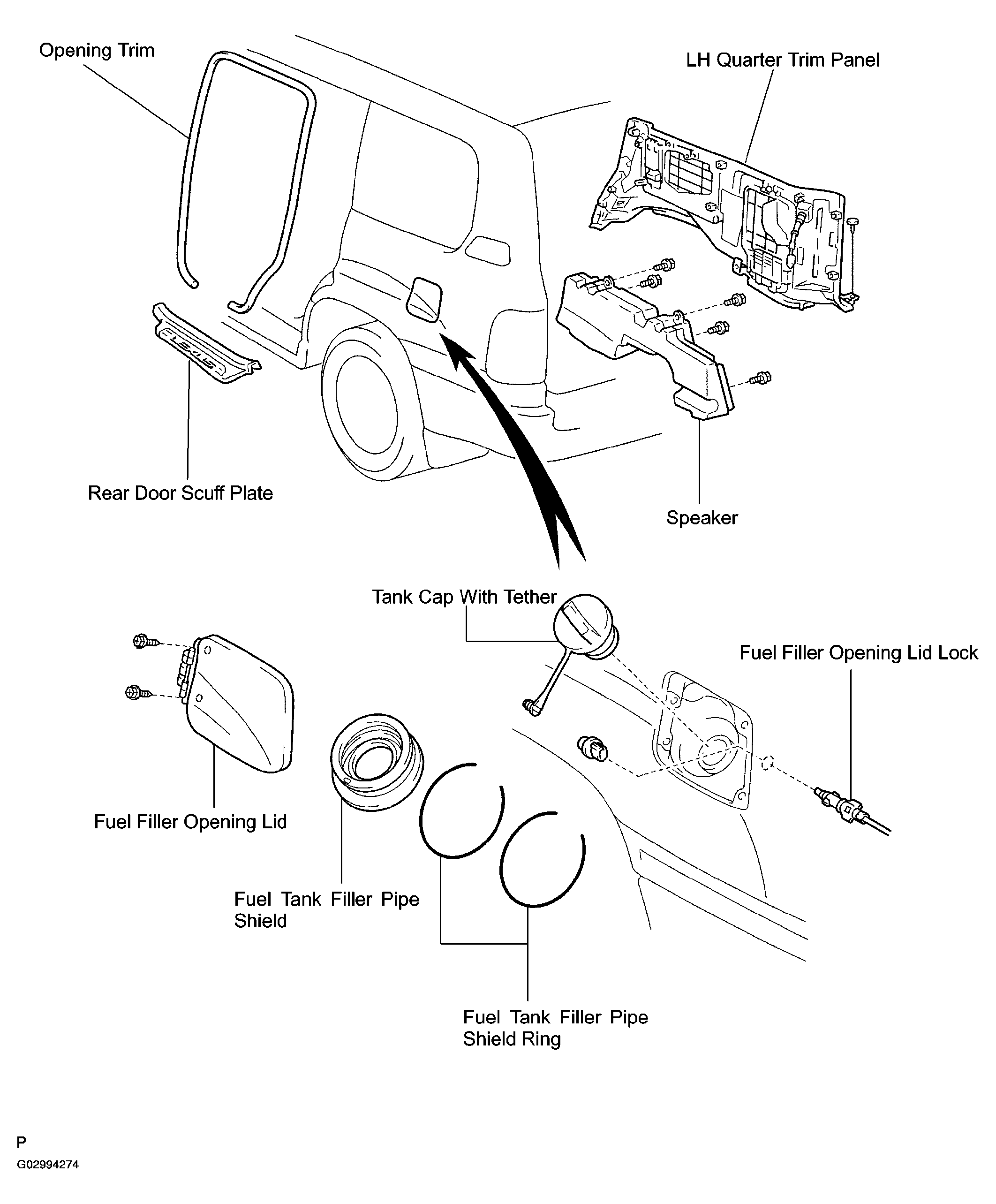

Fig 1: Identifying Fuel Lid Components

G02994274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
