Exterior/Interior Trim: Hood: Components

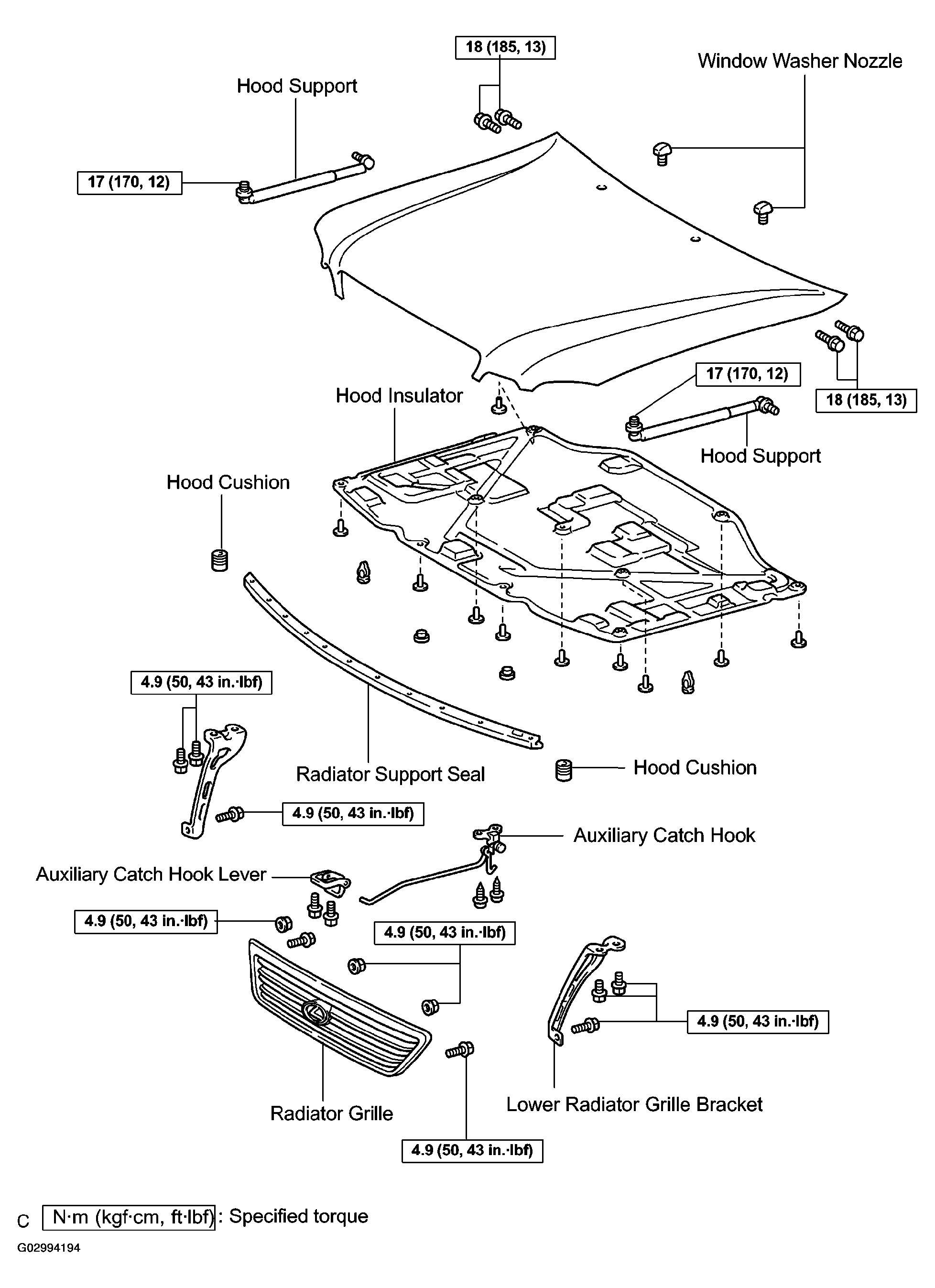

Fig 1: Identifying Hood Components Location
G02994194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
