Front Seat: Components

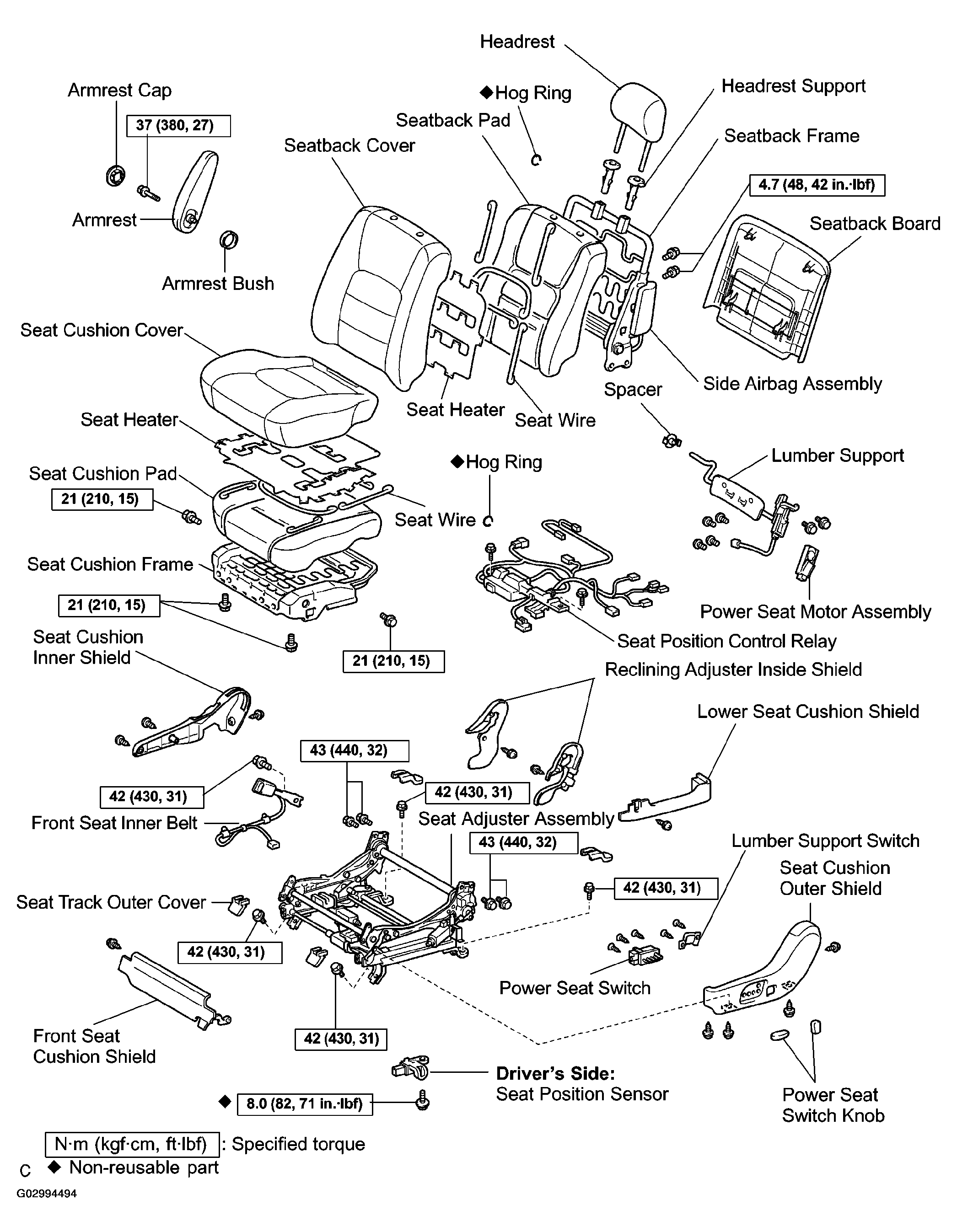

Fig 1: Identifying Front Seat And Component

G02994494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
