Inspection Procedure

  1. Check motor.

    PREPARATION:

    1. Remove the seat.
    2. Disconnect each motor connector.

    CHECK:

    Check the seat movement when battery positive voltage is applied to each motor. Slide Motor

    CHECK:

    Connect battery positive (+) terminal to terminal 2 and battery negative (-) terminal to terminal 1 of the slide motor connector.

    OK:

    1. The seat moves forward.

    CHECK:

    Connect battery negative (-) terminal to terminal 2 and battery positive (+) terminal to terminal 1 of the slide motor connector.

    OK:

    The seat moves backward.

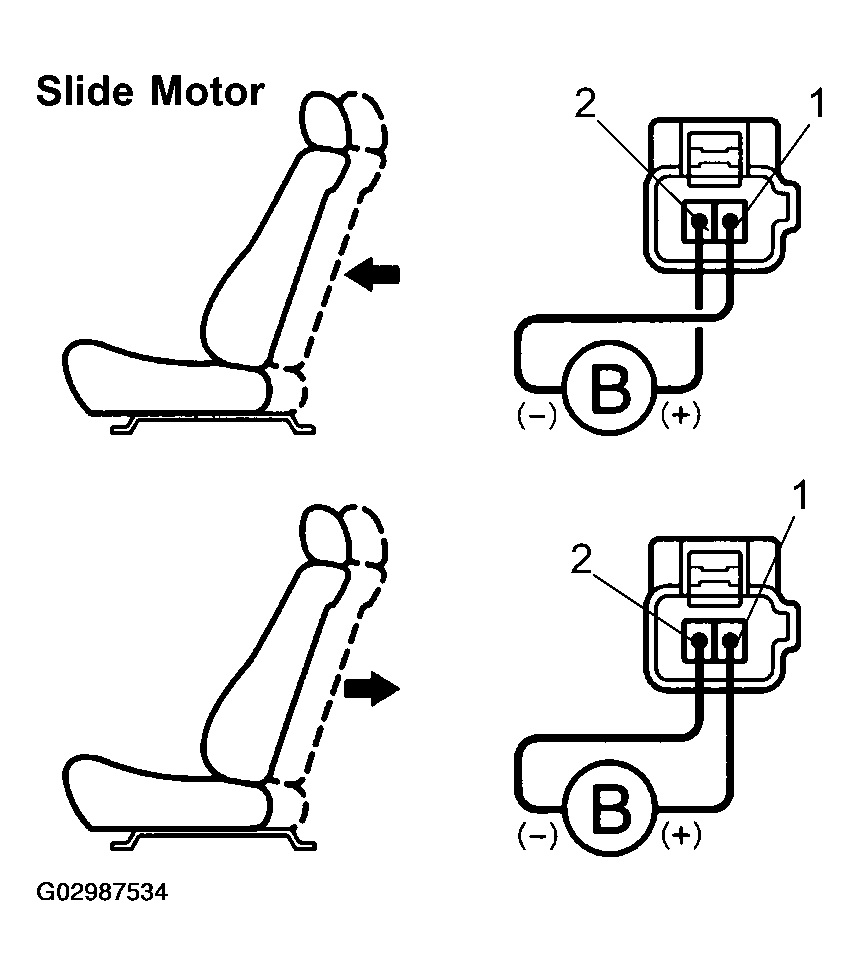

    Fig 1: Checking Seat Movement
    G02987534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Front Vertical Motor

    CHECK:

    Connect battery positive (+) terminal to terminal 1 and battery negative (-) terminal to terminal 2 of the front vertical motor connector.

    OK:

    1. The front of the seat cushion rises.

    CHECK:

    Connect battery negative (-) terminal to terminal 1 and battery positive (+) terminal to terminal 2 of the front vertical motor connector.

    OK:

    1. The front of the seat cushion lowers.

    Lifter Motor

    CHECK:

    Connect battery positive (+) terminal to terminal 1 and battery negative (-) terminal to terminal 2 of the rear vertical motor connector.

    OK:

    1. The front of the seat cushion rises.

    CHECK:

    Connect battery negative (-) terminal to terminal 1 and battery positive (+) terminal to terminal 2 of the rear vertical motor connector.

    OK:

    1. The front of the seat cushion lowers.

    Reclining Motor

    CHECK:

    Connect battery positive (+) terminal to terminal 2 and battery negative (-) terminal to terminal 1 of the reclining motor connector.

    OK:

    1. The seat back returns to up right.

    CHECK:

    Connect battery negative (-) terminal to terminal 2 and battery positive (+) terminal to terminal 1 of the reclining motor connector.

    OK:

    1. The seat back is reclining.

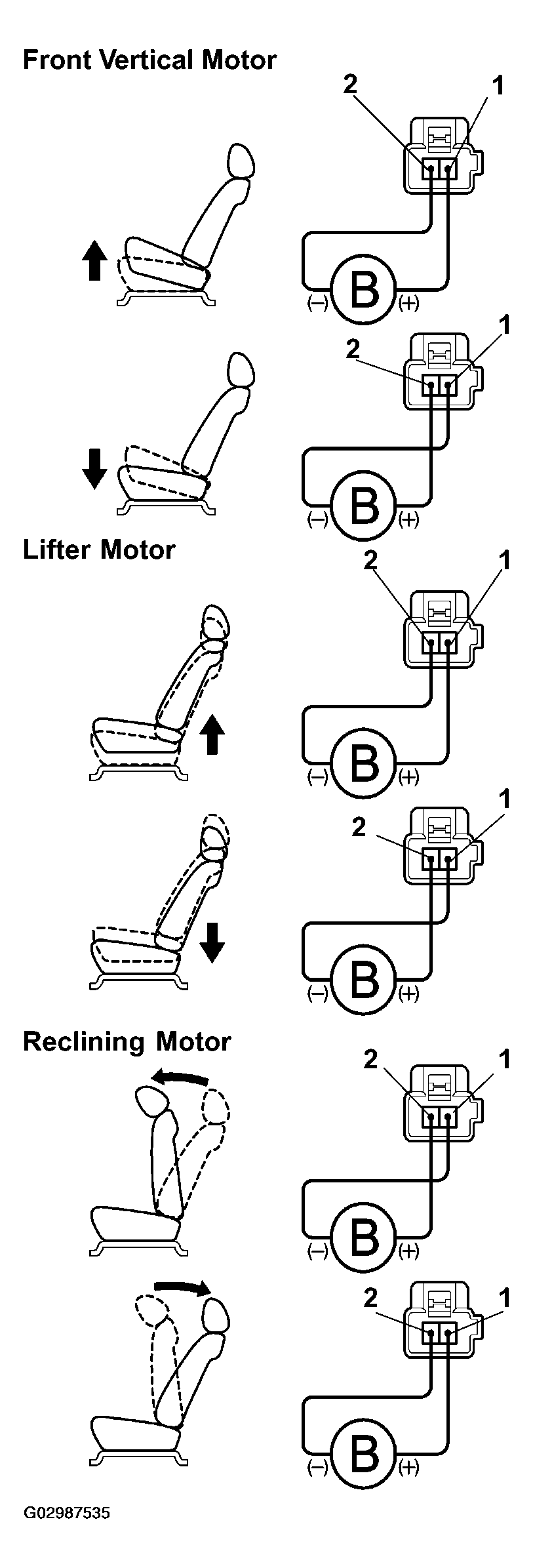

    Fig 2: Checking Seat Operation
    G02987535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Replace motor.
    2. OK: Go to Next Step.
  2. Check harness and connector between Power Seat ECU and motor (See  PROCEDURE  ).
    1. NG: Repair or replace harness or connector.
    2. OK: Proceed to next circuit inspection shown on problem symptom table (See  PROBLEM SYMPTOMS TABLE   ).
