Position Sensor Power Source Circuit: Wiring Diagram

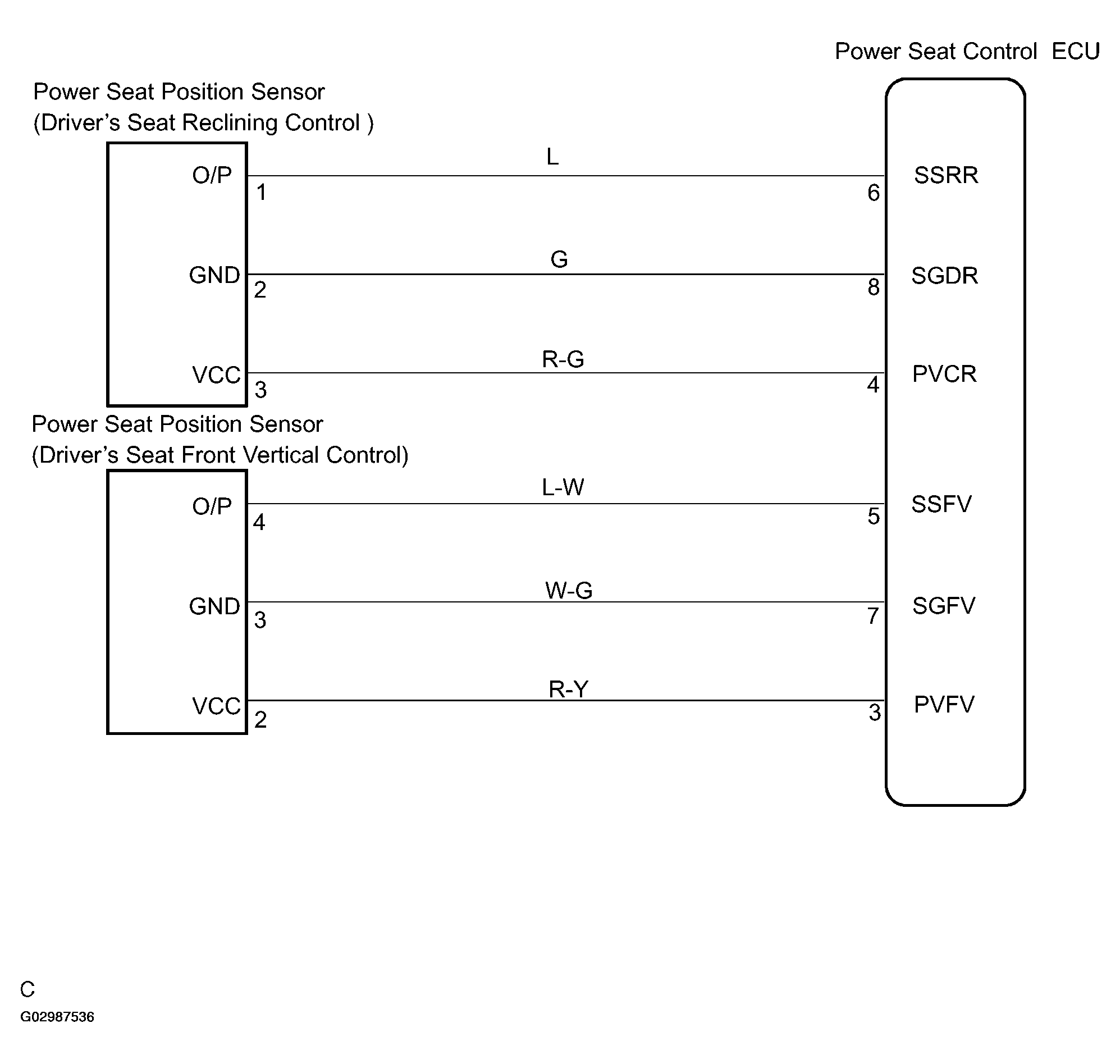

Fig 1: Wiring Diagram - Position Sensor Circuits
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
