Power Seat Control System: Location

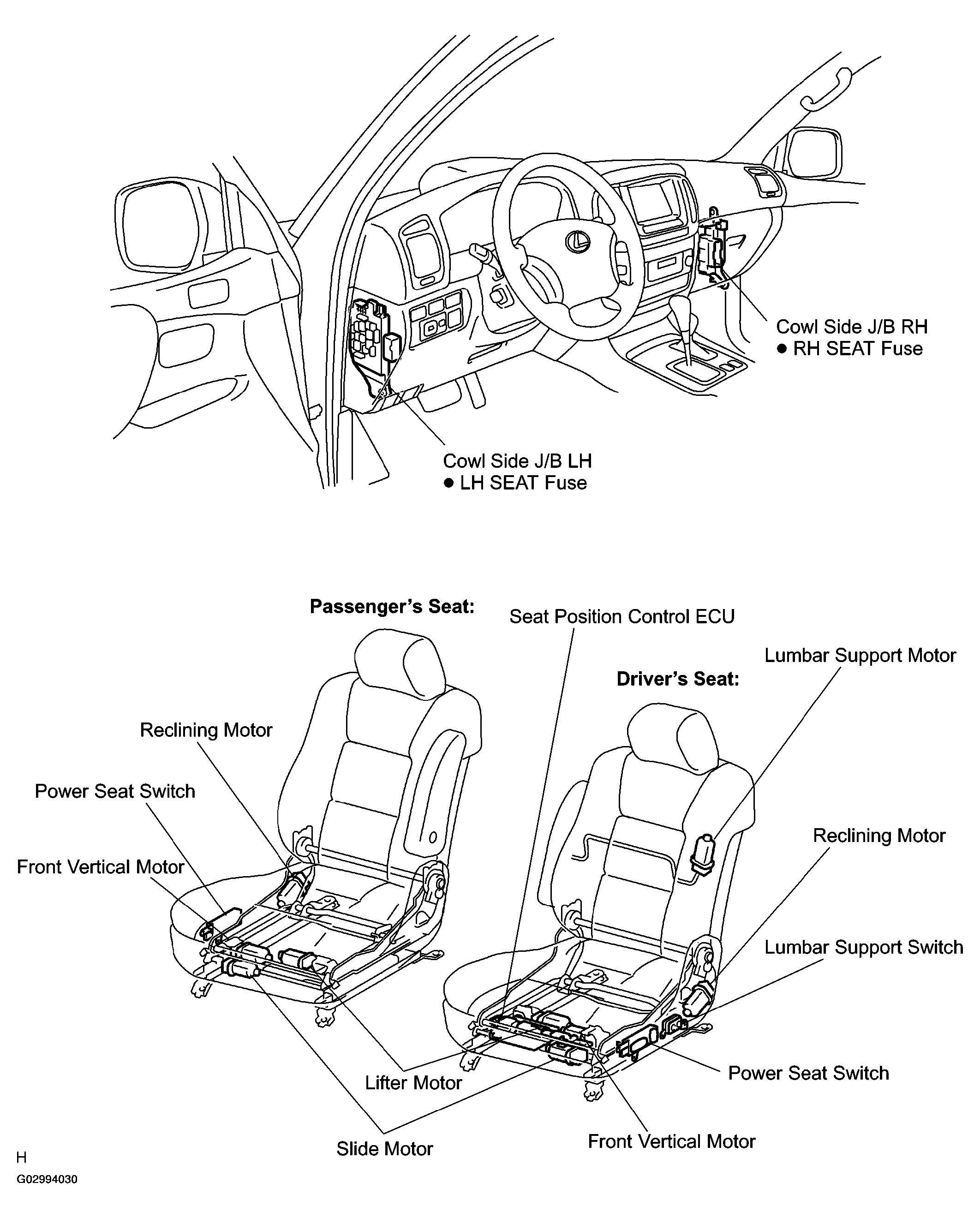

Fig 1: Identifying Component Location Of Power Seat Control System
G02994030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
