Front Door: Components

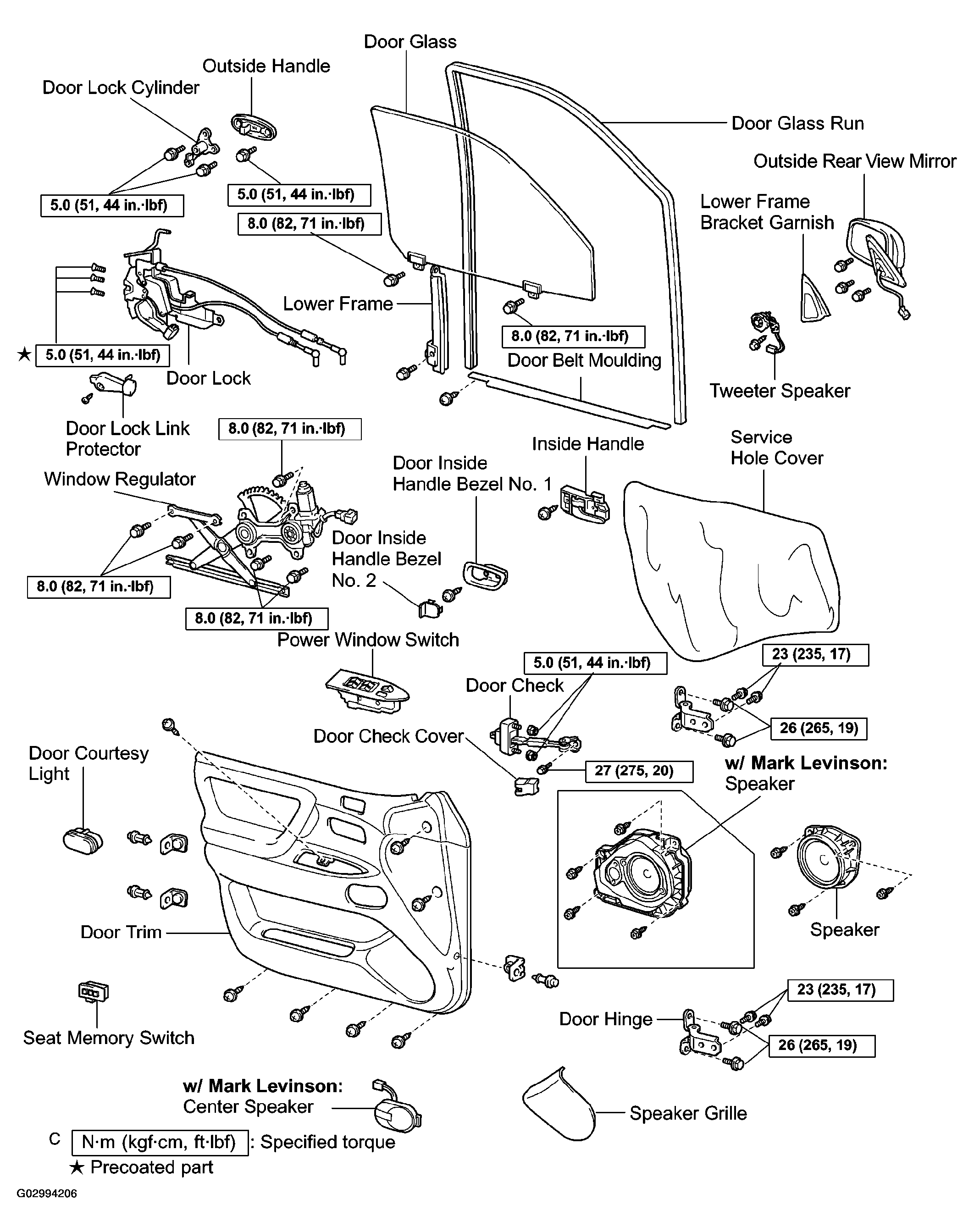

Fig 1: Identifying Front Door Components Location
G02994206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
