Inspection Procedure
HINT:
Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using the hand-held tester.
- Check operation of the VSC OFF indicator light.
PREPARATION:
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch ON and push the hand-held tester main switch ON.
- Select the ACTIVE TEST mode on the hand-held tester.
CHECK:
Check that "ON" and "OFF" of the VSC OFF indicator light can be shown on the combination meter with the hand-held tester.
- NG : Go to step 3
- OK : Go to Next Step.
- Is DTC output for VSC?
- YES : Repair circuit indicated by the output code.
- OK : Go to Next Step.
- Does the warning lights other than VSC OFF indicator lights up?
- YES : Go to step 5
- NO : Go to next step

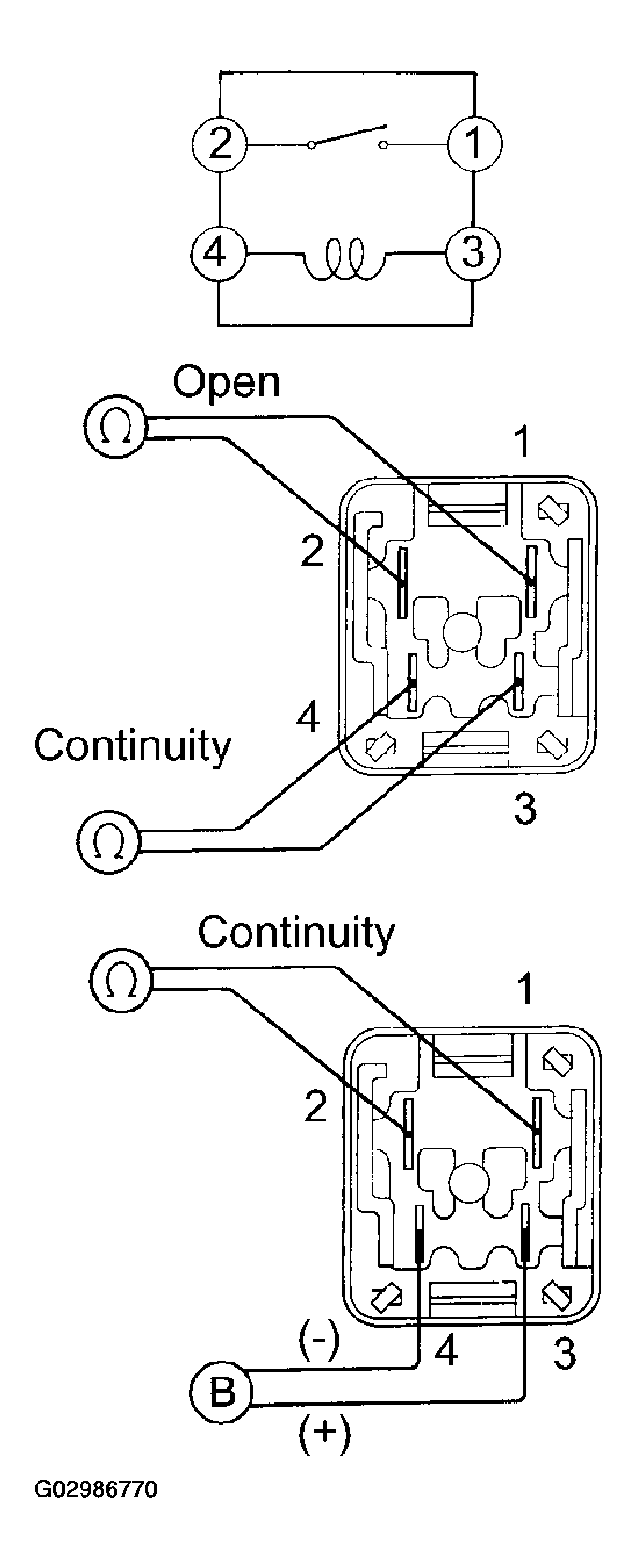

- Check IG1 No. 1 relay.
PREPARATION:
Remove the IG1 No. 1 relay from the engine room J/B.
CHECK:
Check continuity between each pair of terminal of IG1 No. 1 relay.
OK:
IG1 NO 1 RELAY TERMINALS AND CONTINUITY DETAILTerminals 3 and 4 Continuity Terminals 1 and 2 Open CHECK:
- Apply battery positive voltage between terminals 3 and 4.
- Check continuity between terminals.
OK:
IG1 NO 1 RELAY TERMINALS AND CONTINUITY DETAILTerminals 1 and 2 Continuity - NG : Replace IG1 No. 1 relay.
- OK : Check for open circuit in harness and connector between IG1 No. 1 relay and combination meter (See PROCEDURE ).
- Check VSC OFF indicator light.
Open circuit in the combination meter (See CIRCUIT ).
- NG : Repair VSC OFF indicator light bulb or combination meter assembly.
- OK : Go to Next Step.
- Check for short circuit in harness and connector between VSC OFF indicator light and skid control ECU (See PROCEDURE
).
- NG : Repair or replace harness or connector.
- OK : Go to Next Step.
- Check if center diff. lock switch remains ON, or check wire harness between center diff. lock switch and body ground for short circuit.
- NG : Repair center diff. lock switch or repair or replace wire harness.
- OK : Check and repair skid control ECU.
