Combination Meter: Location

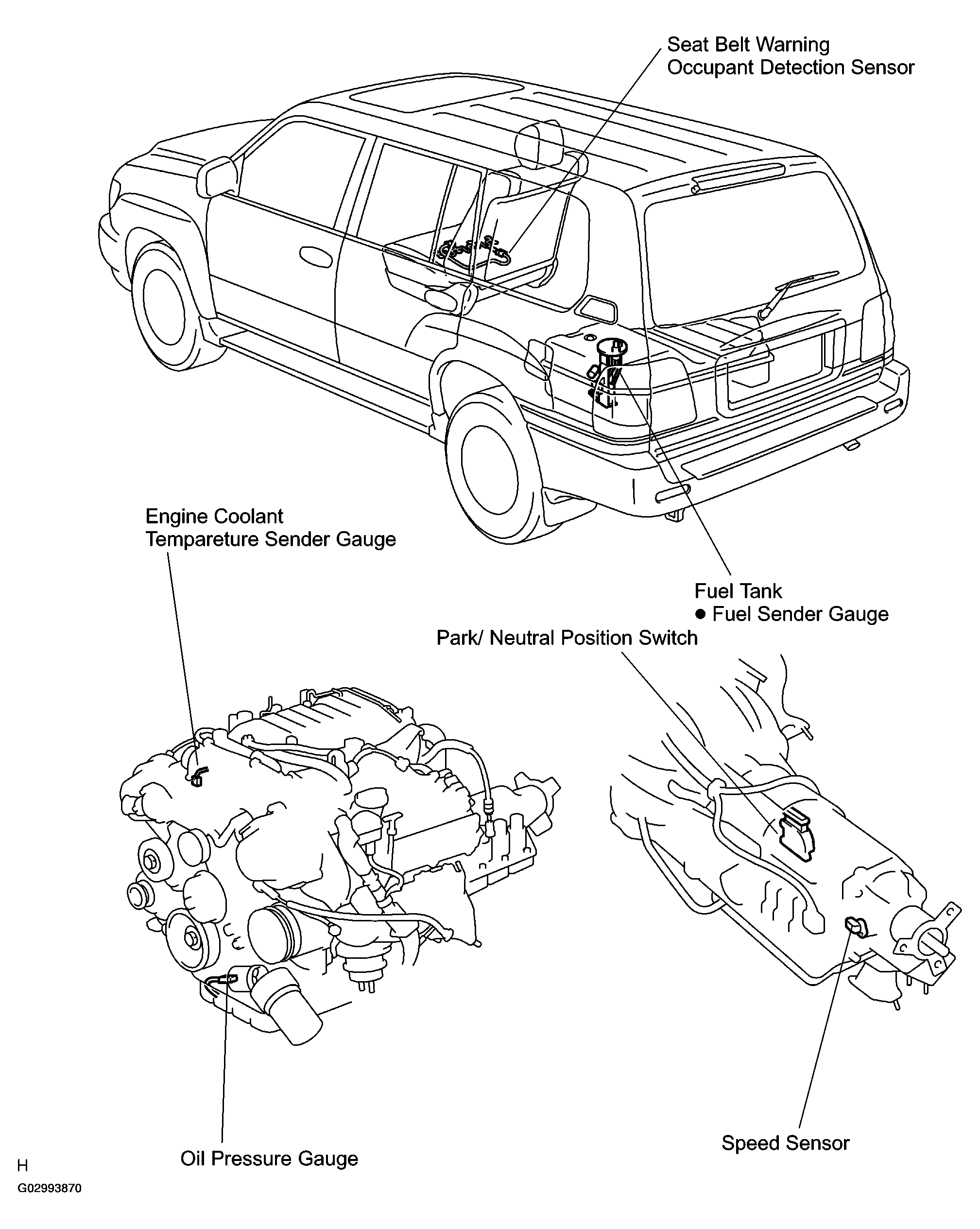

Fig 1: Locating Combination Meter Components (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

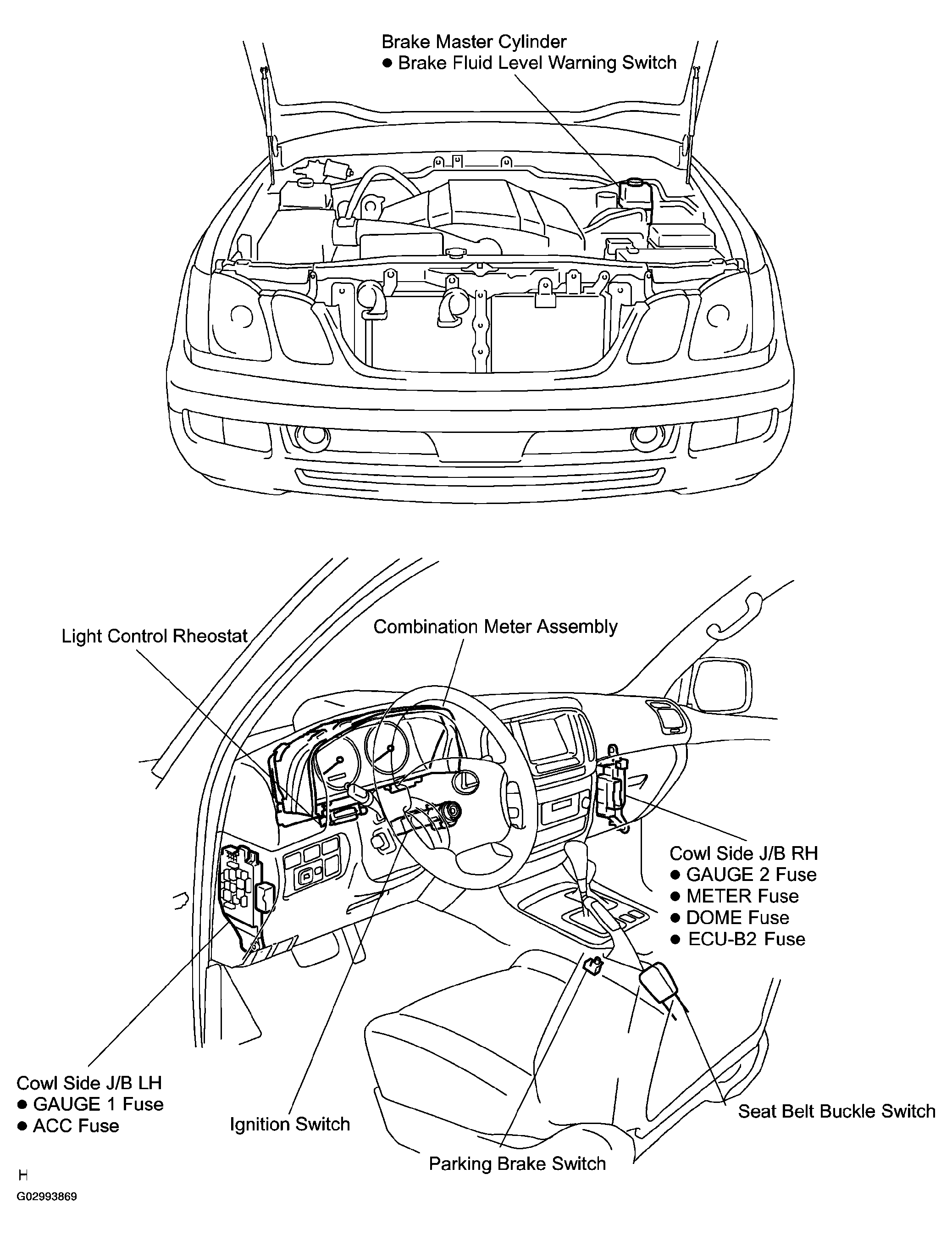

Fig 2: Locating Combination Meter Components (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
