Parts Layout And Schematic Drawing: Location

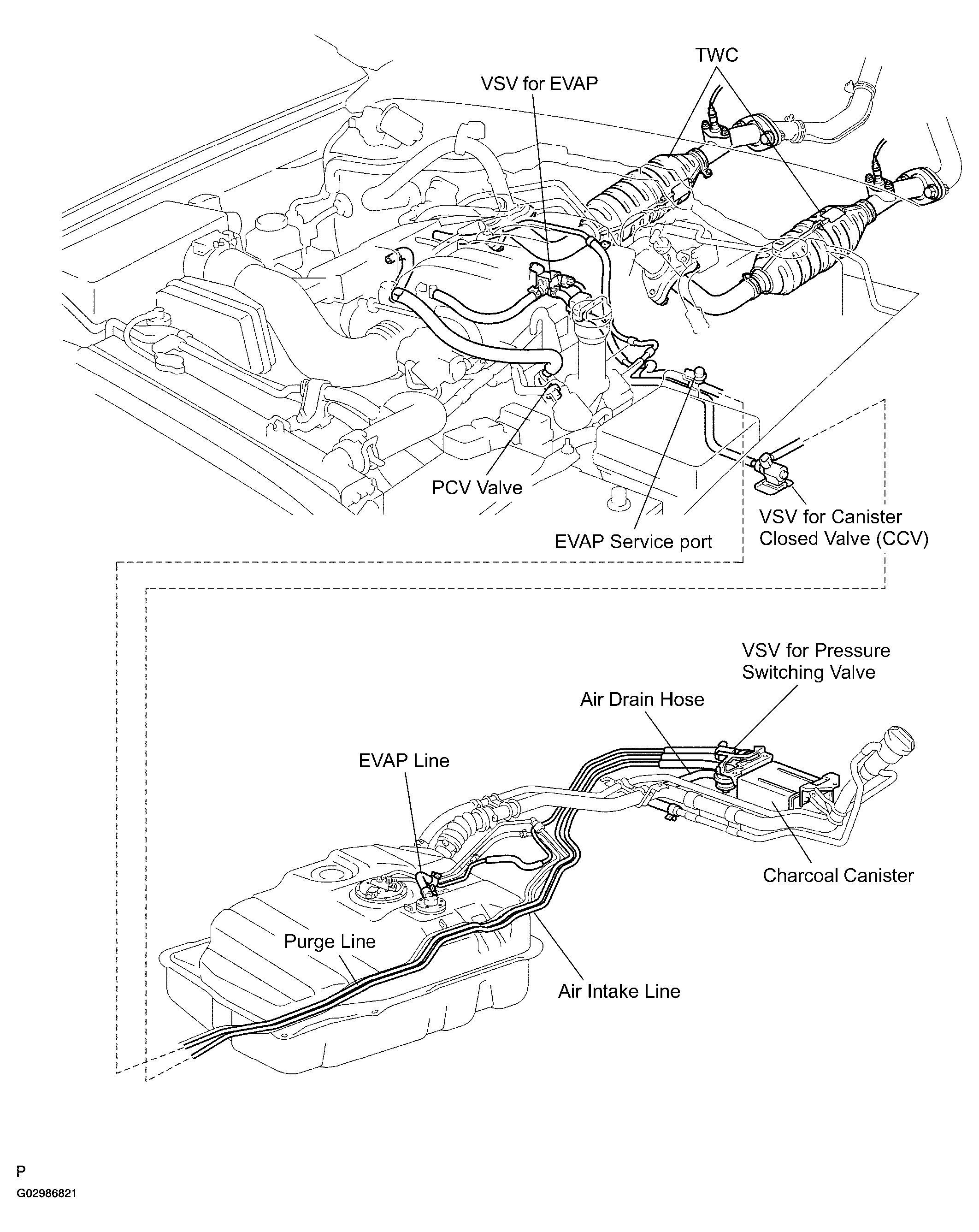

Fig 1: Identifying Emission Control Component Location
G02986821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
