Camshaft Position Sensor: Removal

REMOVE V-BANK COVER
DRAIN ENGINE COOLANT
DISCONNECT UPPER RADIATOR HOSE
REMOVE LH NO. 3 TIMING BELT COVER
(See REMOVAL )
REMOVE CAMSHAFT POSITION SENSOR
Remove the bolt, stud bolt and camshaft position sensor.

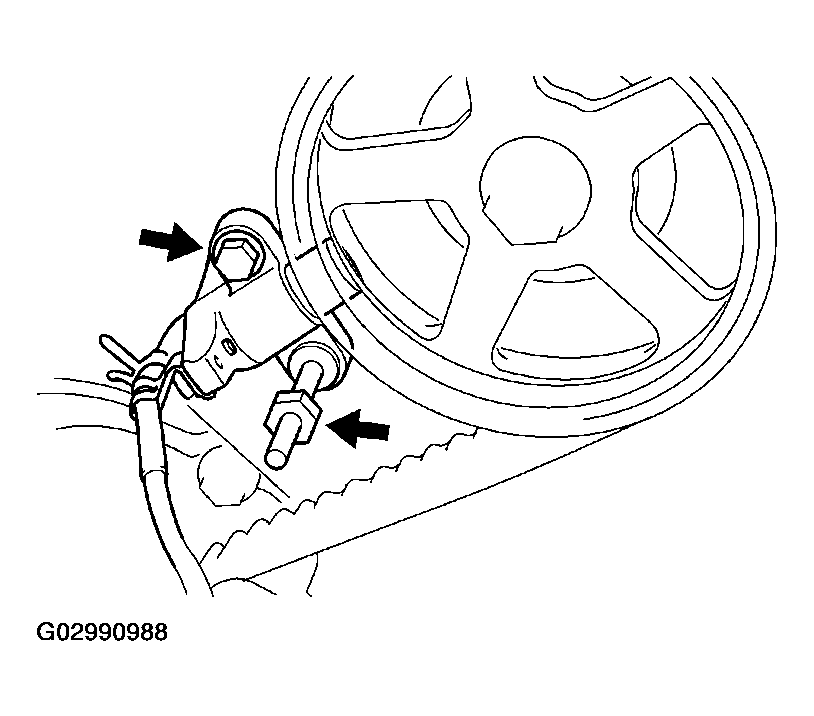

Fig 1: Removing Stud Bolt And Camshaft Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
