(Special Service Tools)

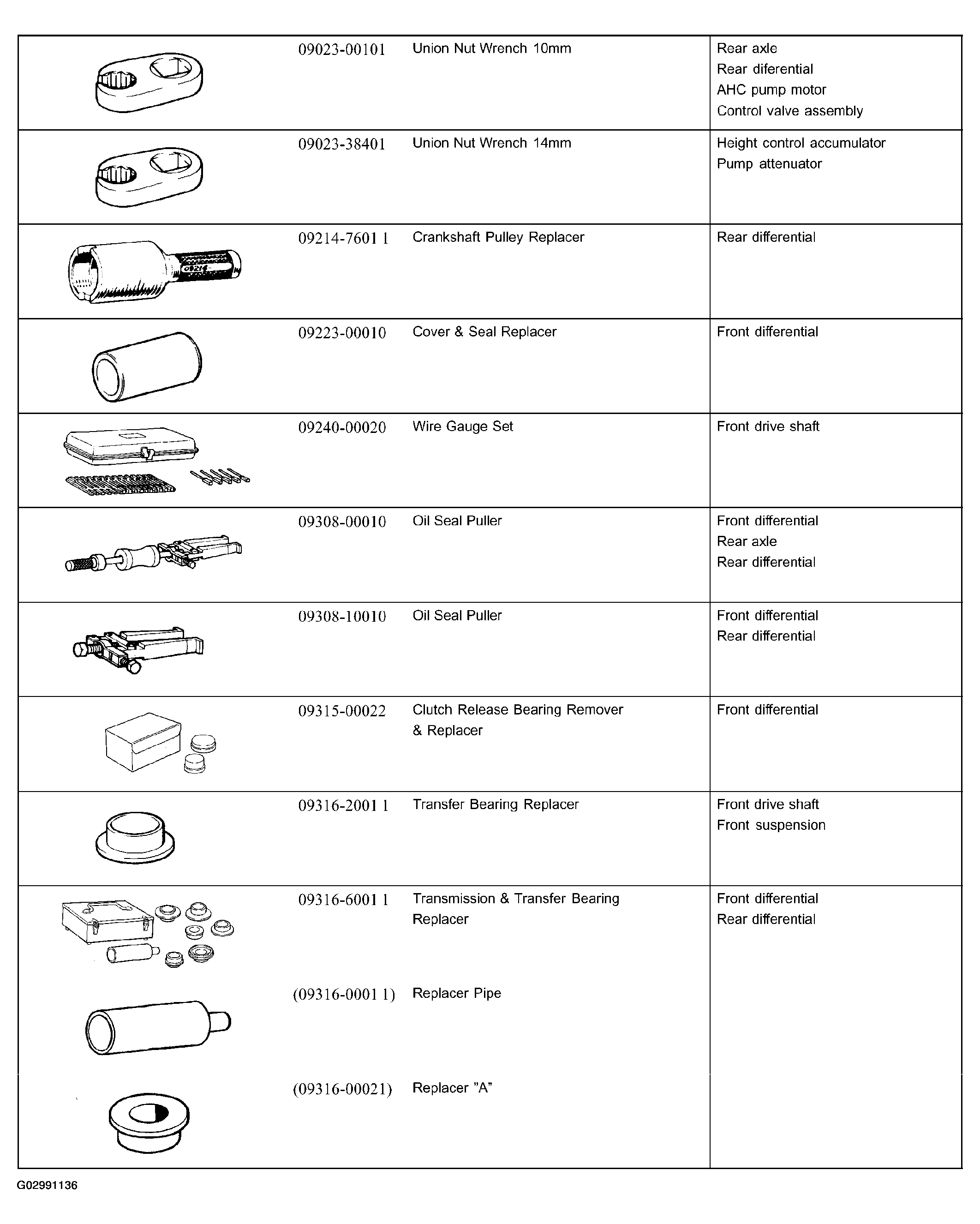

Fig 1: Identifying Recommended Tools - Suspension And Axle (1 Of 7)
G02991136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

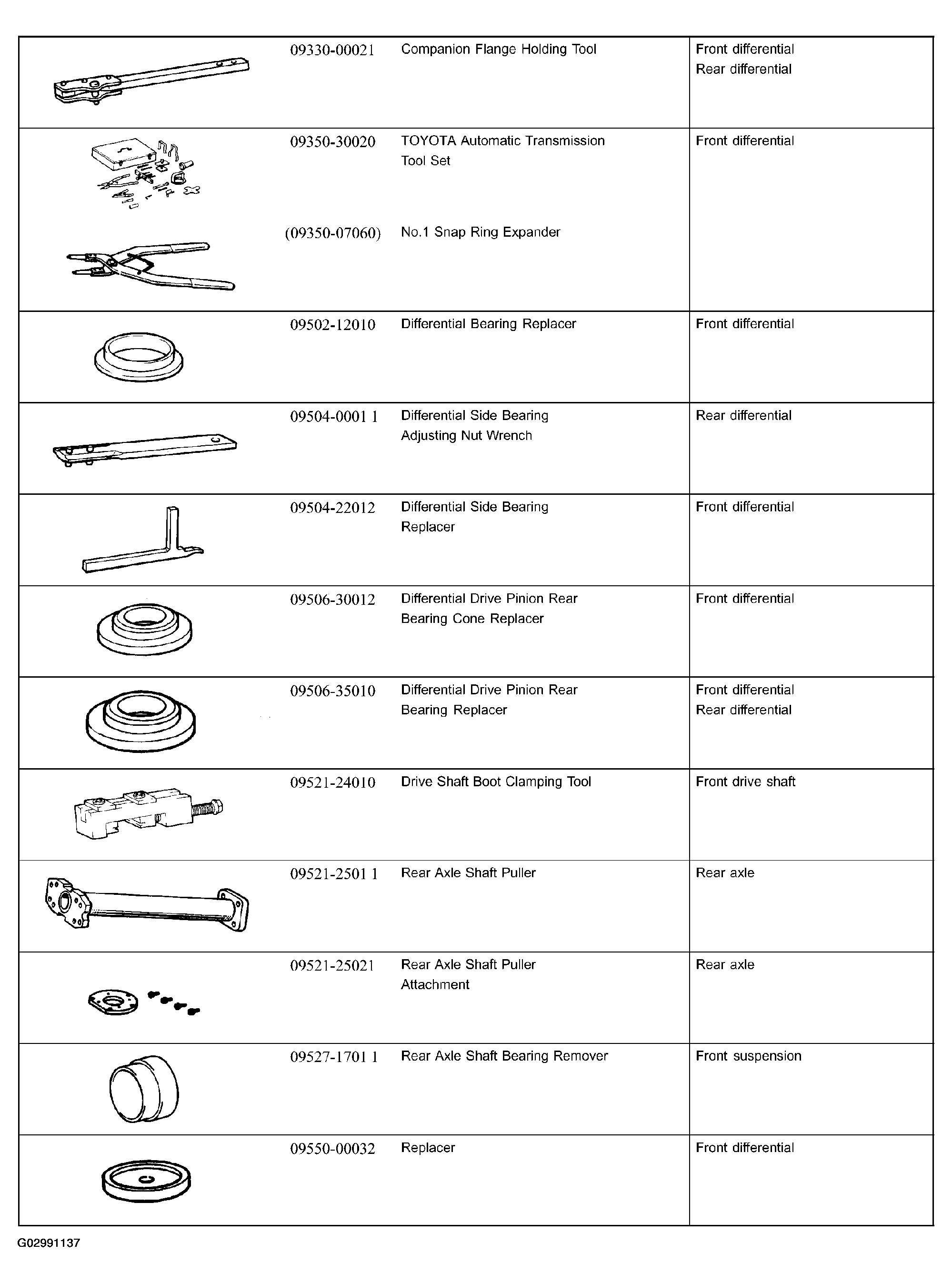

Fig 2: Identifying Recommended Tools - Suspension And Axle (2 Of 7)
G02991137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

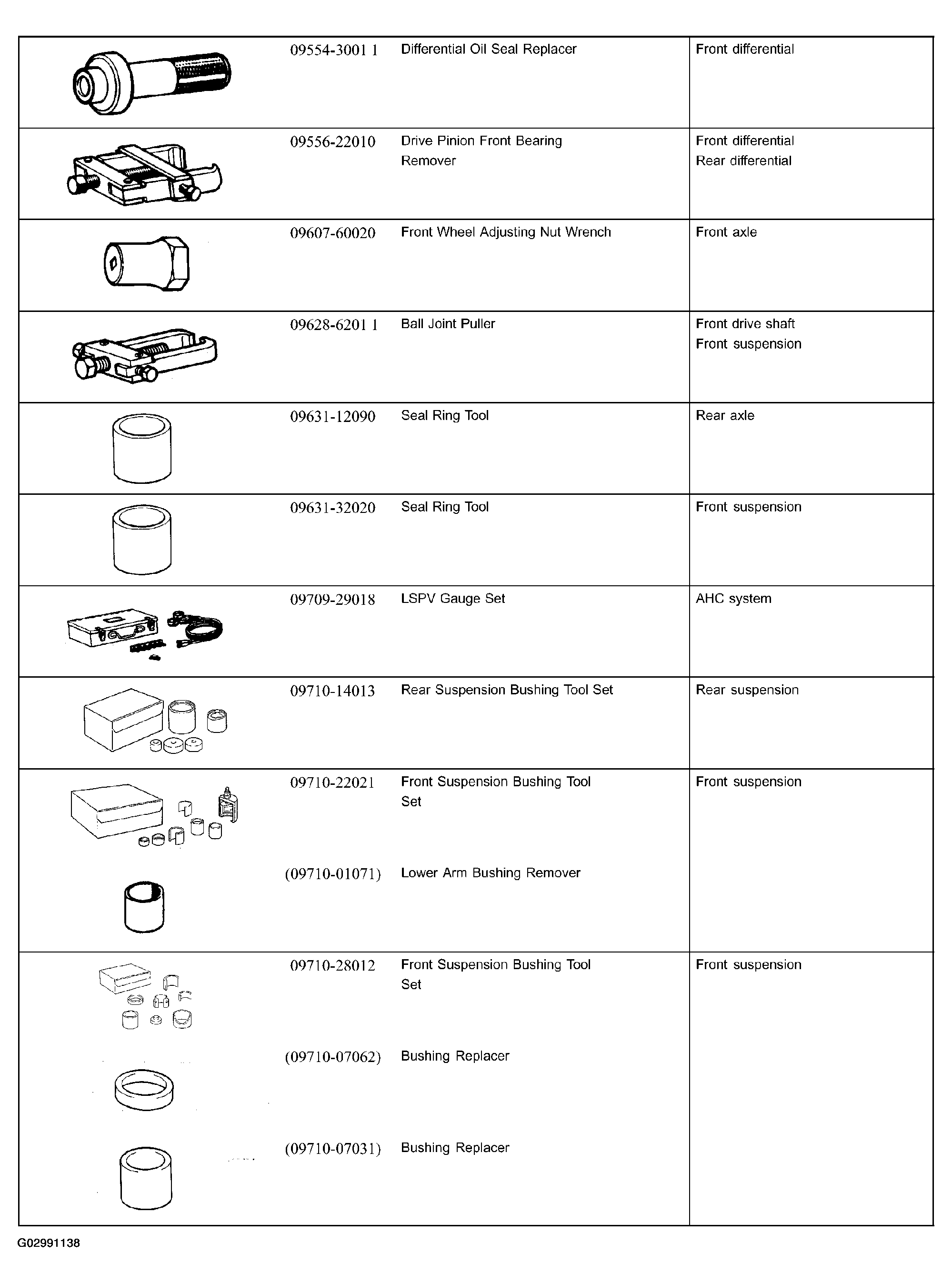

Fig 3: Identifying Recommended Tools - Suspension And Axle (3 Of 7)
G02991138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

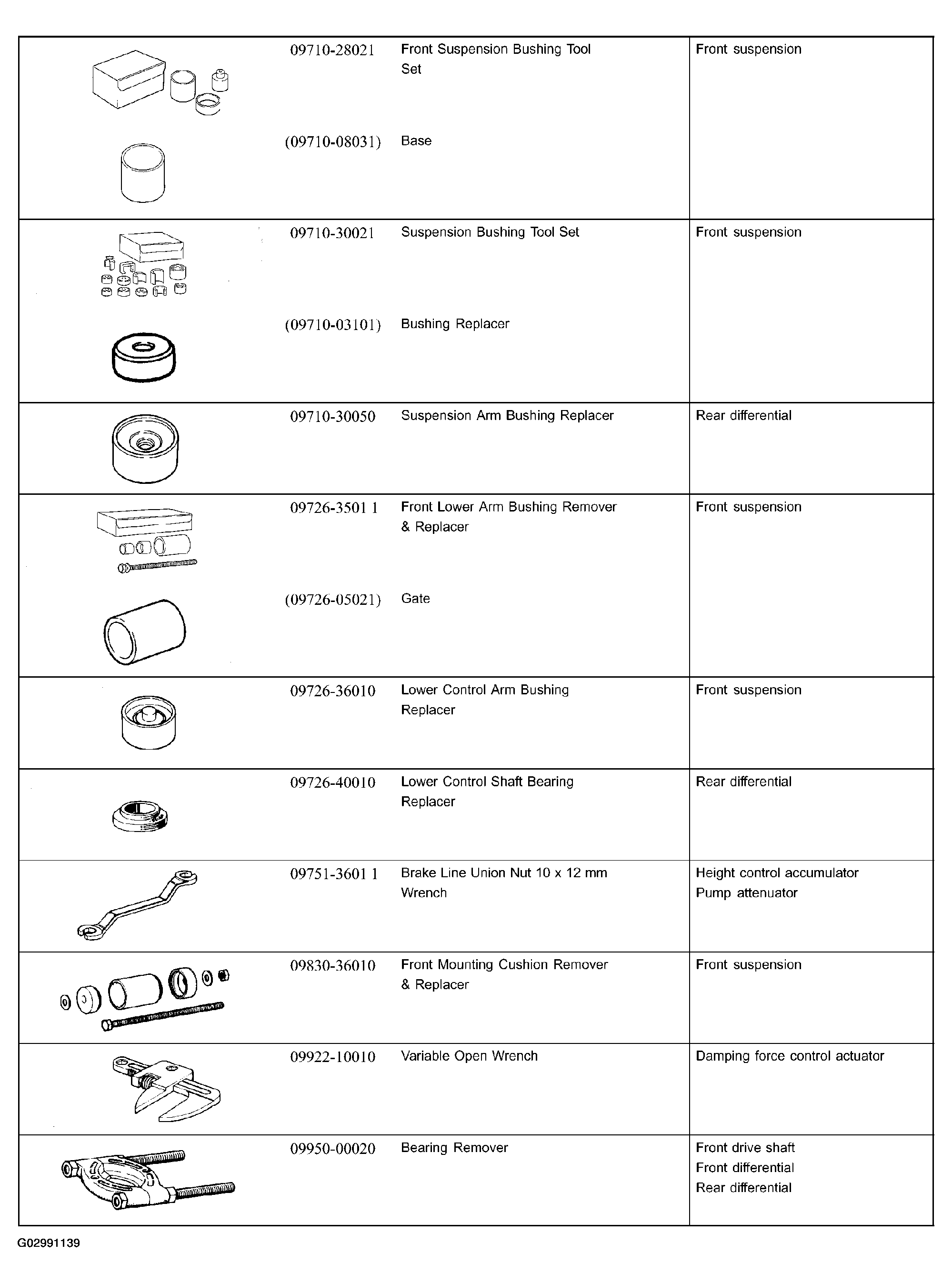

Fig 4: Identifying Recommended Tools - Suspension And Axle (4 Of 7)
G02991139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

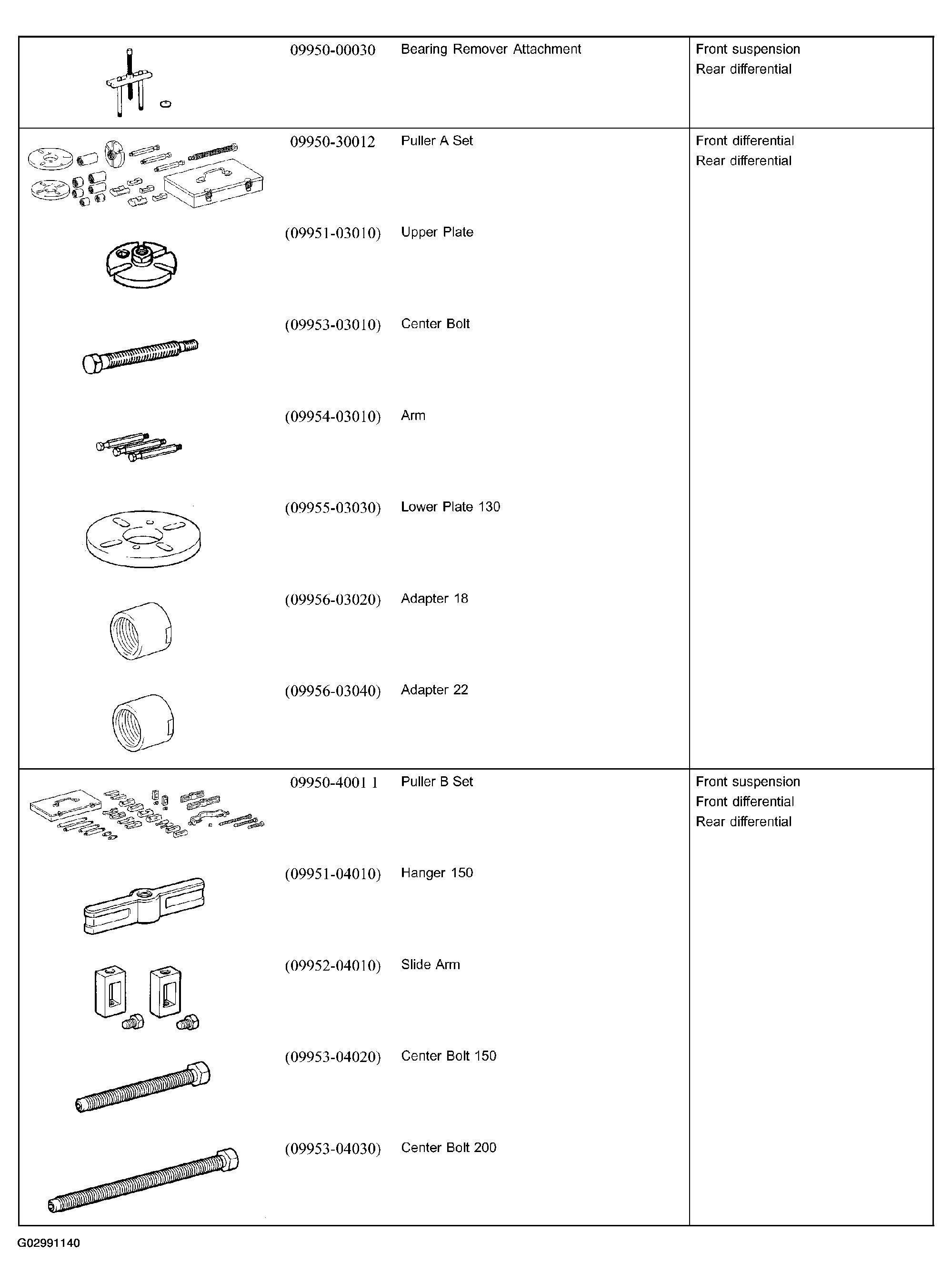

Fig 5: Identifying Recommended Tools - Suspension And Axle (5 Of 7)
G02991140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Identifying Recommended Tools - Suspension And Axle (6 Of 7)
G02991141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

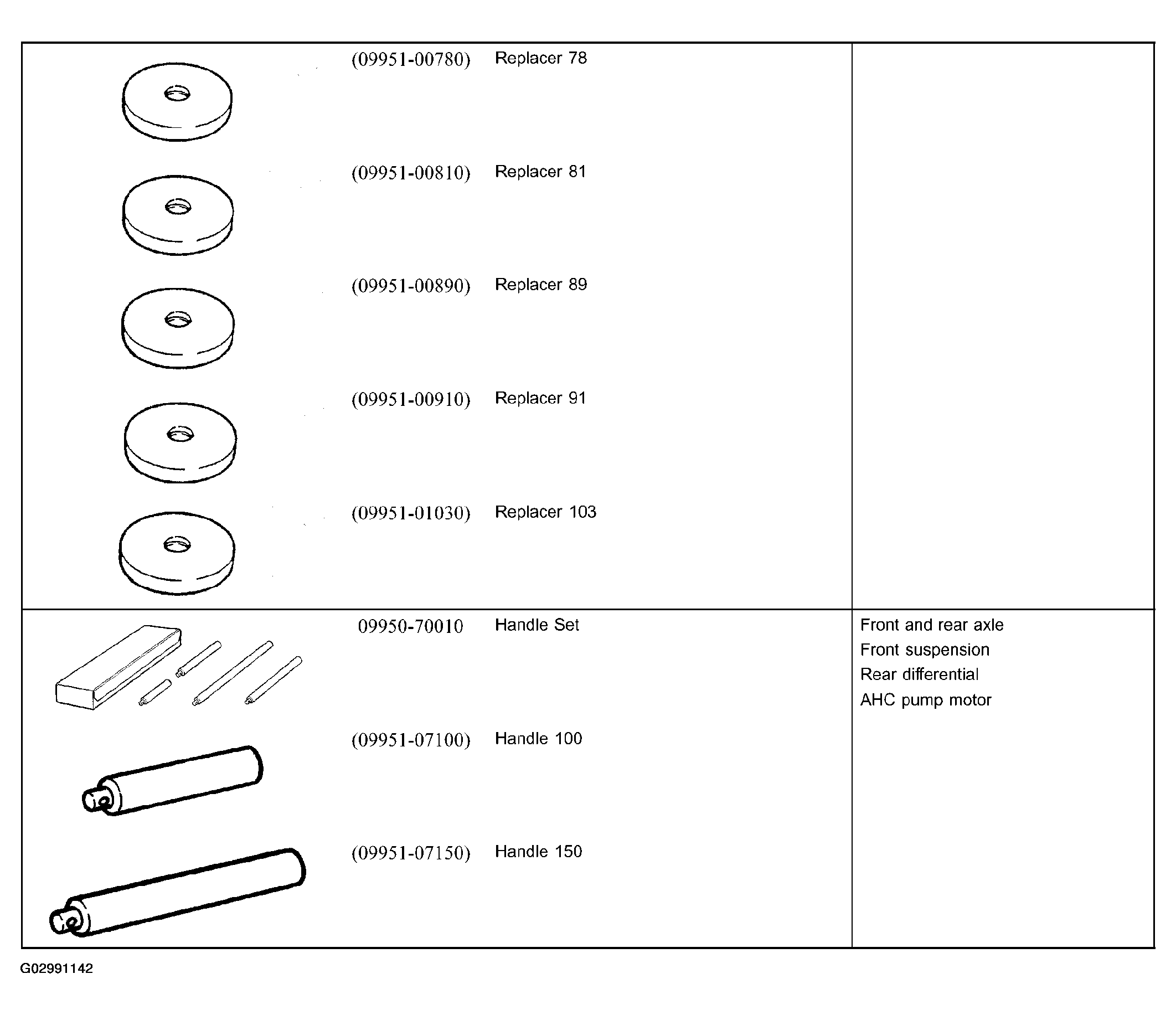

Fig 7: Identifying Recommended Tools - Suspension And Axle (7 Of 7)
G02991142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
