SST (Special Service Tools)

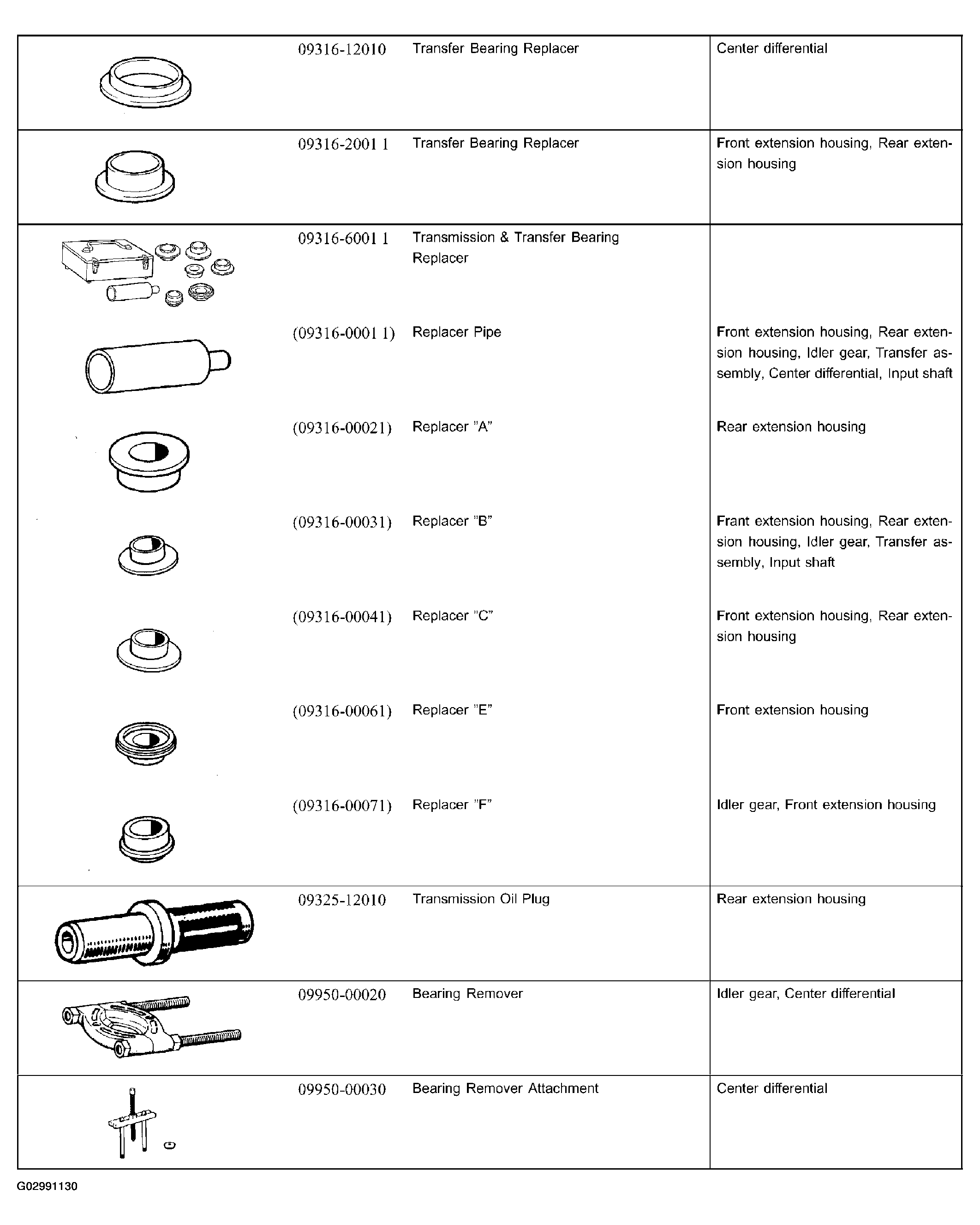

Fig 1: Identifying Special Service Tools - Transfer (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

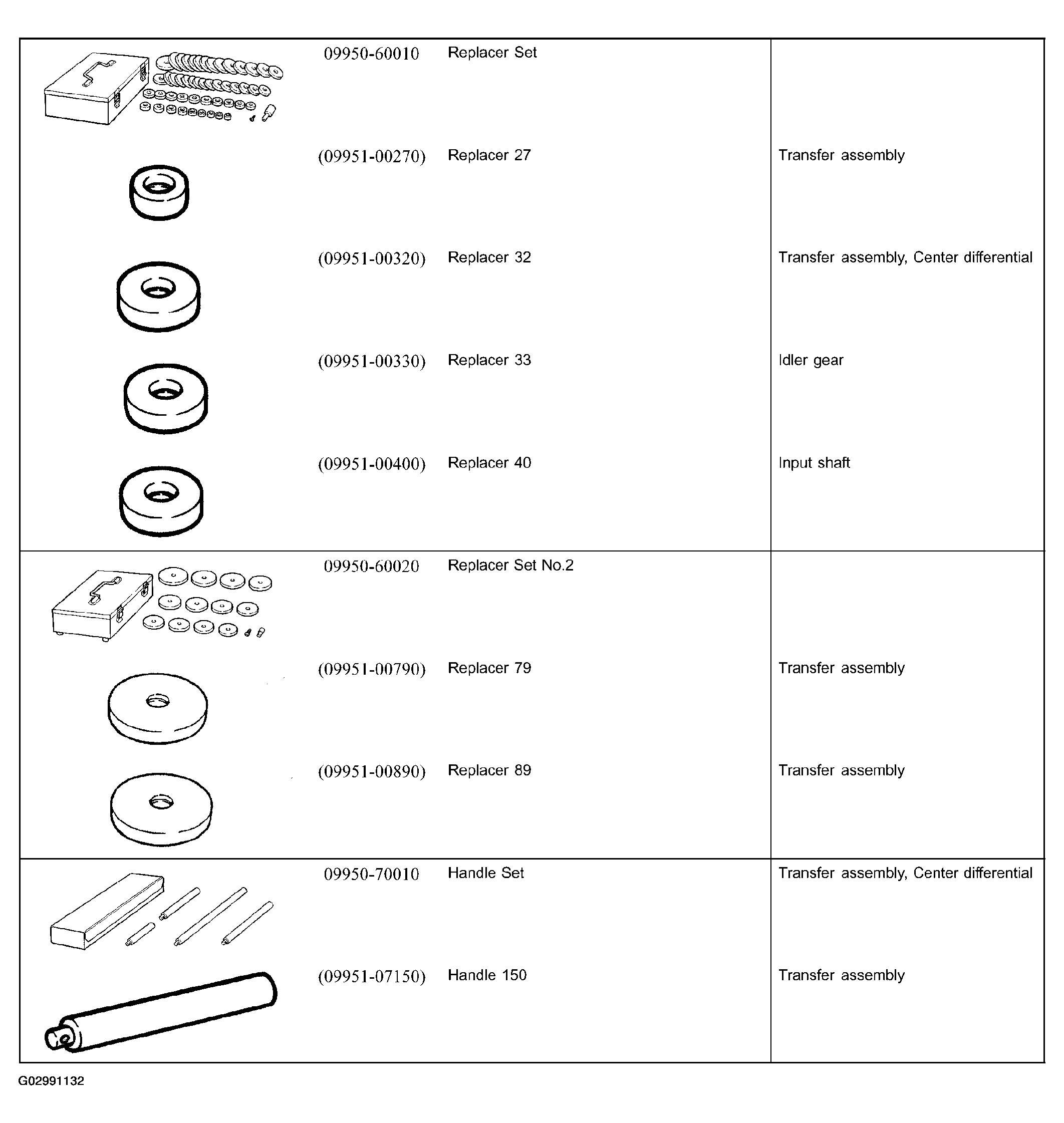

Fig 2: Identifying Special Service Tools - Transfer (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

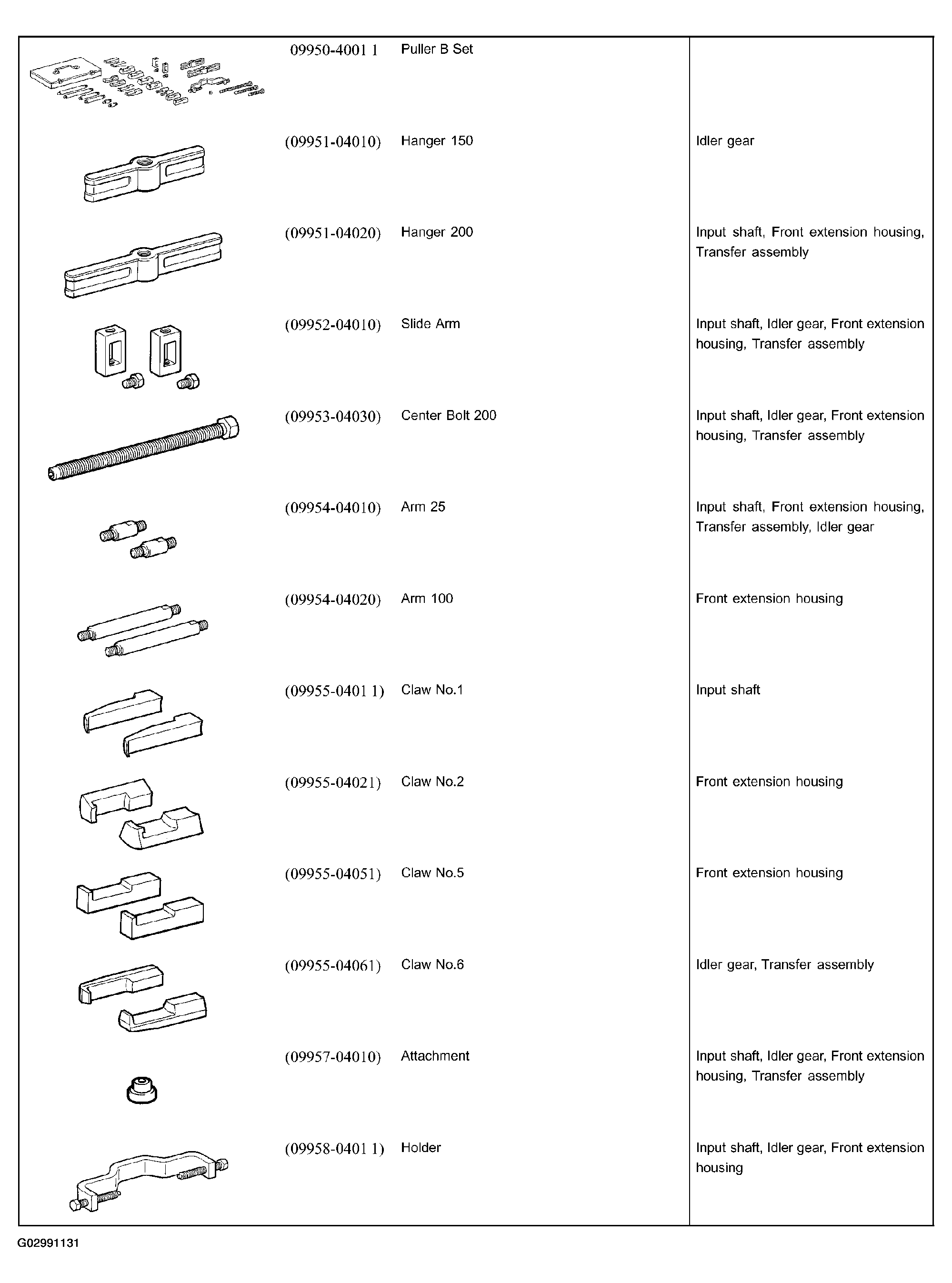

Fig 3: Identifying Special Service Tools - Transfer (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
