Service Specifications
›
Standard Bolt
›
Specified Torque For Standard Bolts
Specified Torque For Standard Bolts

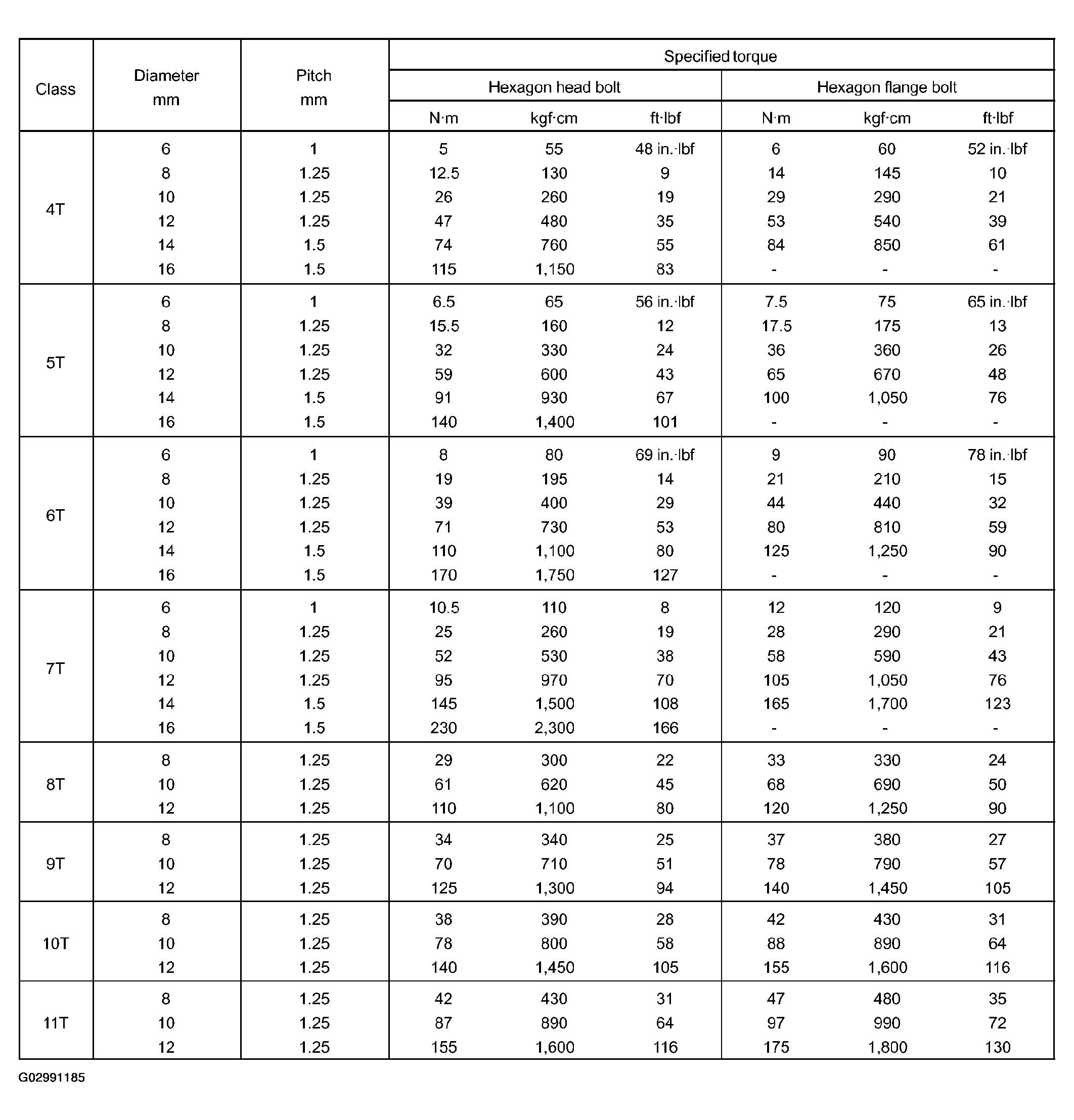

Fig 1: Specified Torque For Standard Bolts Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
