Front Axle Hub: Reassembly

INSTALL DISC
1. Mount the disc in a soft jaw vice.
  NOTE: Close vice until it holds disc, do not tighten further.
2. Align the matchmarks on the axle hub and disc.

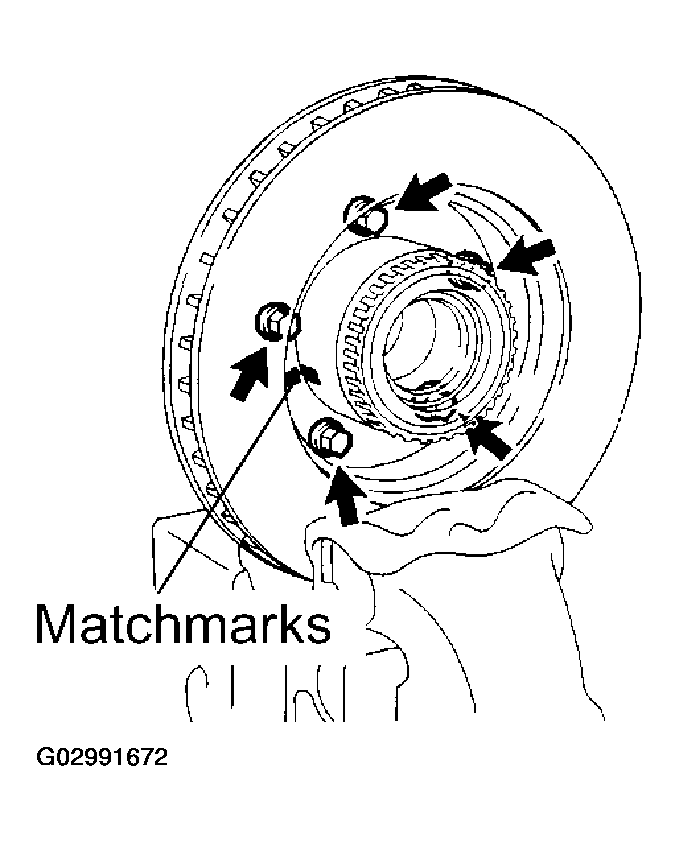

  Fig 1: Aligning Matchmarks On Axle Hub And Disc
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 5 bolts to the axle hub.
  Torque: 74 N.m (750 kgf.cm, 54 ft.lbf)
INSTALL NEW BEARING OUTER RACES
1. Using SST and a hammer, carefully install a new outside bearing outer race.
  SST 09950-60020 (09951-00730),

  09950-70010 (09951-07100)

  Fig 2: Installing New Outside Bearing Outer Race Using SST And Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, carefully install a new inside bearing outer race.
  SST 09950-60020 (09951-00890),

  09950-70010 (09951-07100)
NOTE: Be careful not to damage the ABS speed sensor rotor.

Fig 3: Installing New Inside Bearing Outer Race Using SST And Hammer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PACK BEARING WITH MP GREASE
1. Place MP grease in the palm.
2. Pack grease into the bearing, continuing until the grease oozes out from the other side.
3. Employ the same manner around the bearing circumference.
Fig 4: Packing Bearing With MP Grease
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COAT INSIDE OF AXLE HUB WITH MP GREASE

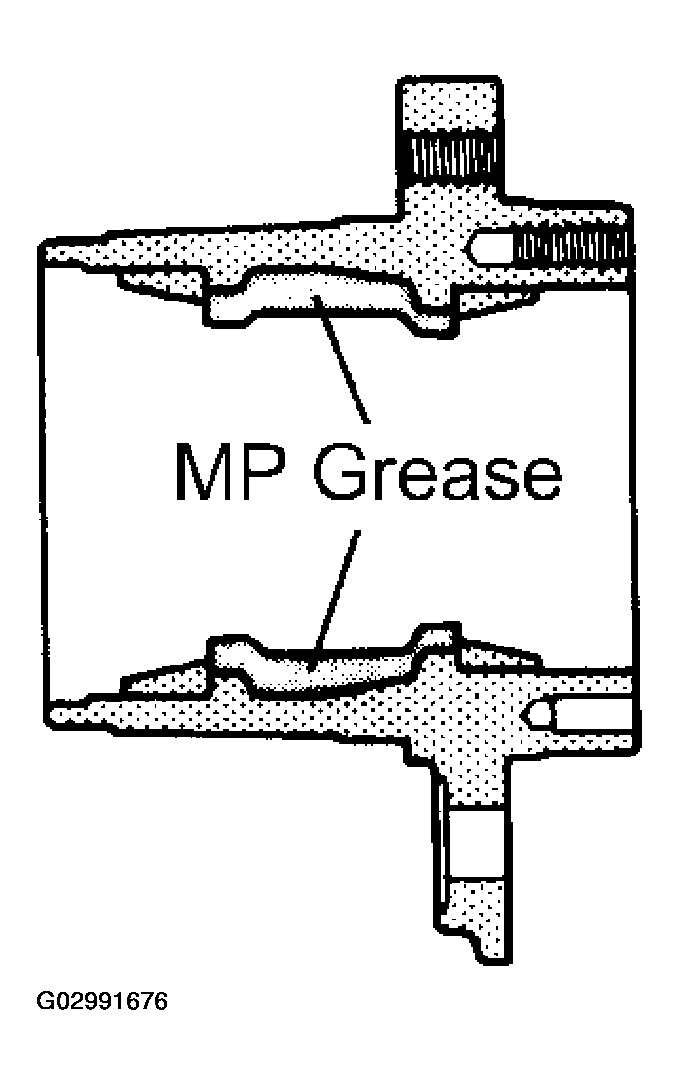

Fig 5: Coating Inside Of Axle Hub With MP Grease
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INNER BEARING AND NEW OIL SEAL
1. Place the inner bearing into the axle hub.
2. Using SST and a hammer, install a new oil seal into the axle hub.
  SST 09950-60020 (09951-01030),

  09950-70010 (09951-07100)

  NOTE: Be careful not to damage the ABS speed sensor rotor.

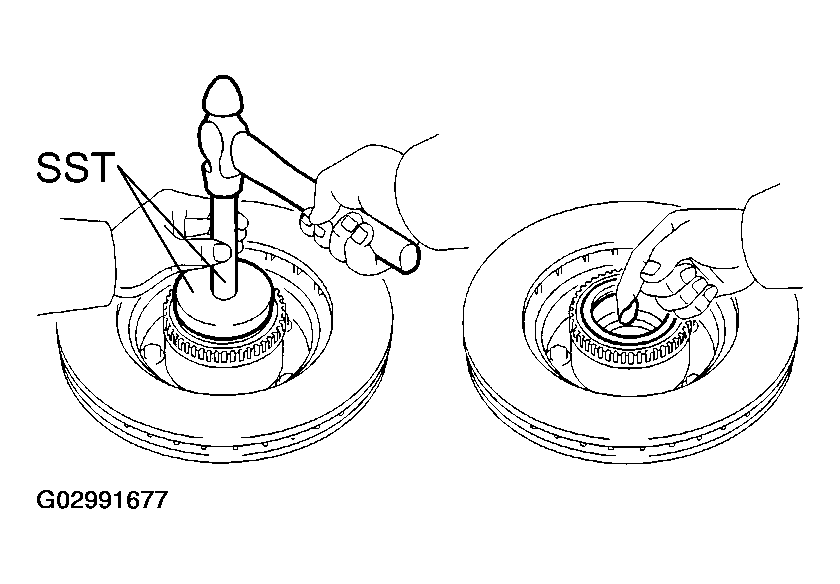

  Fig 6: Installing New Oil Seal Into Axle Hub Using SST And Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Coat the lip of the oil seal with MP grease.
