Front Stabilizer Bar: Components

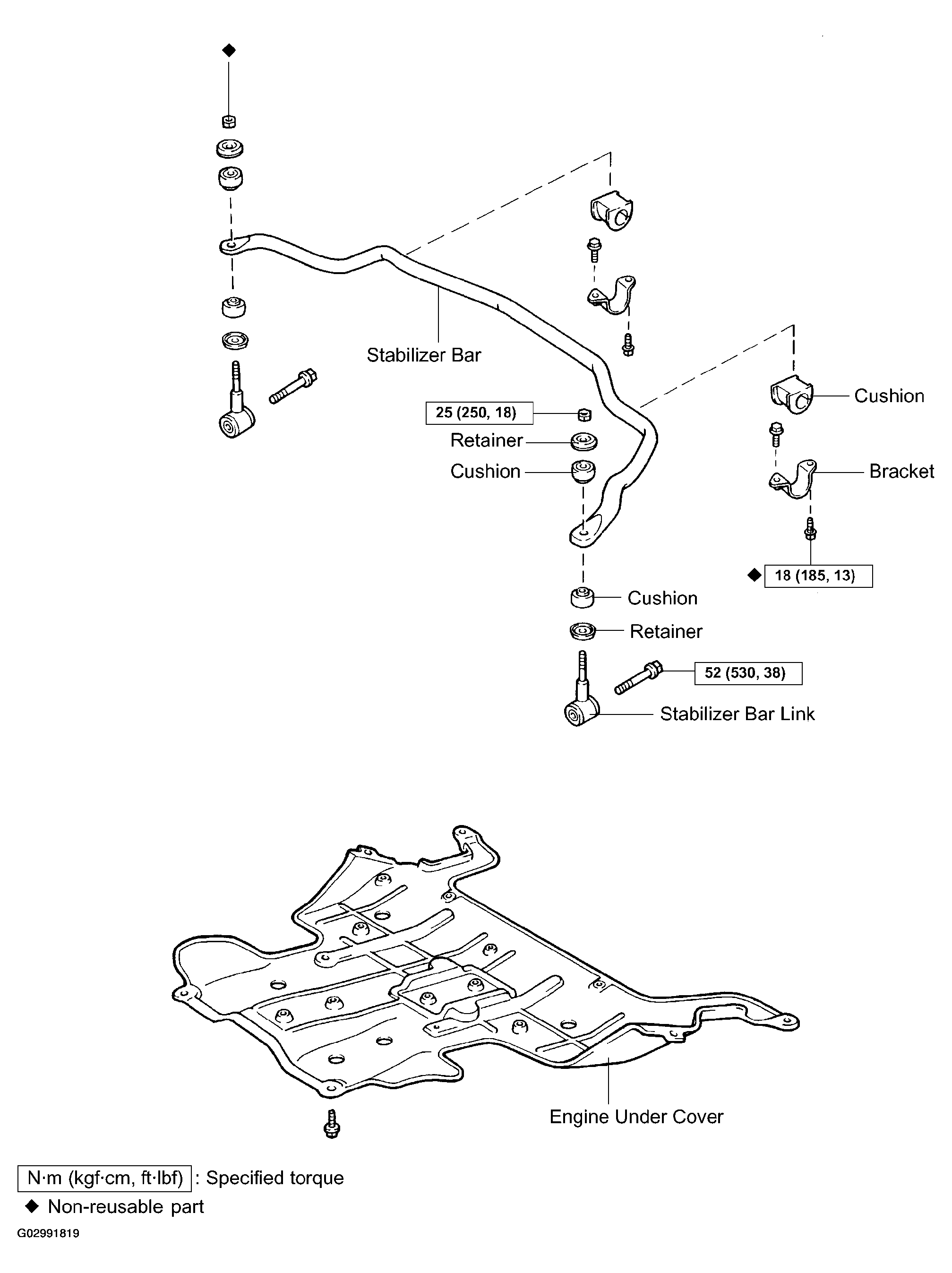

Fig 1: Exploded View Of Front Stabilizer Bar With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
