Rear Lateral Control Rod: Components

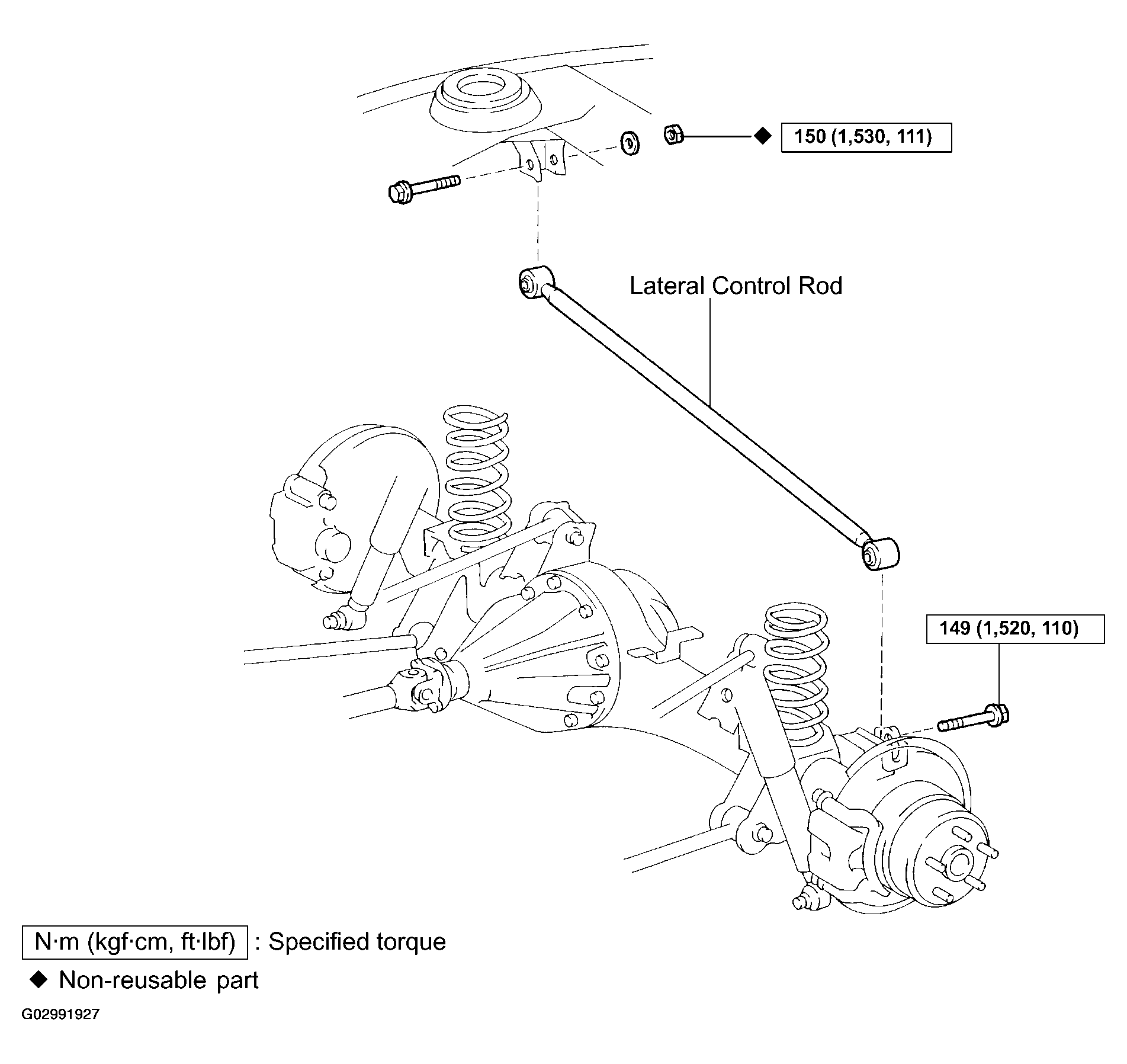

Fig 1: Exploded View Of Rear Lateral Control Rod With Torque Specifications
G02991927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
