Steering Knuckle: Components

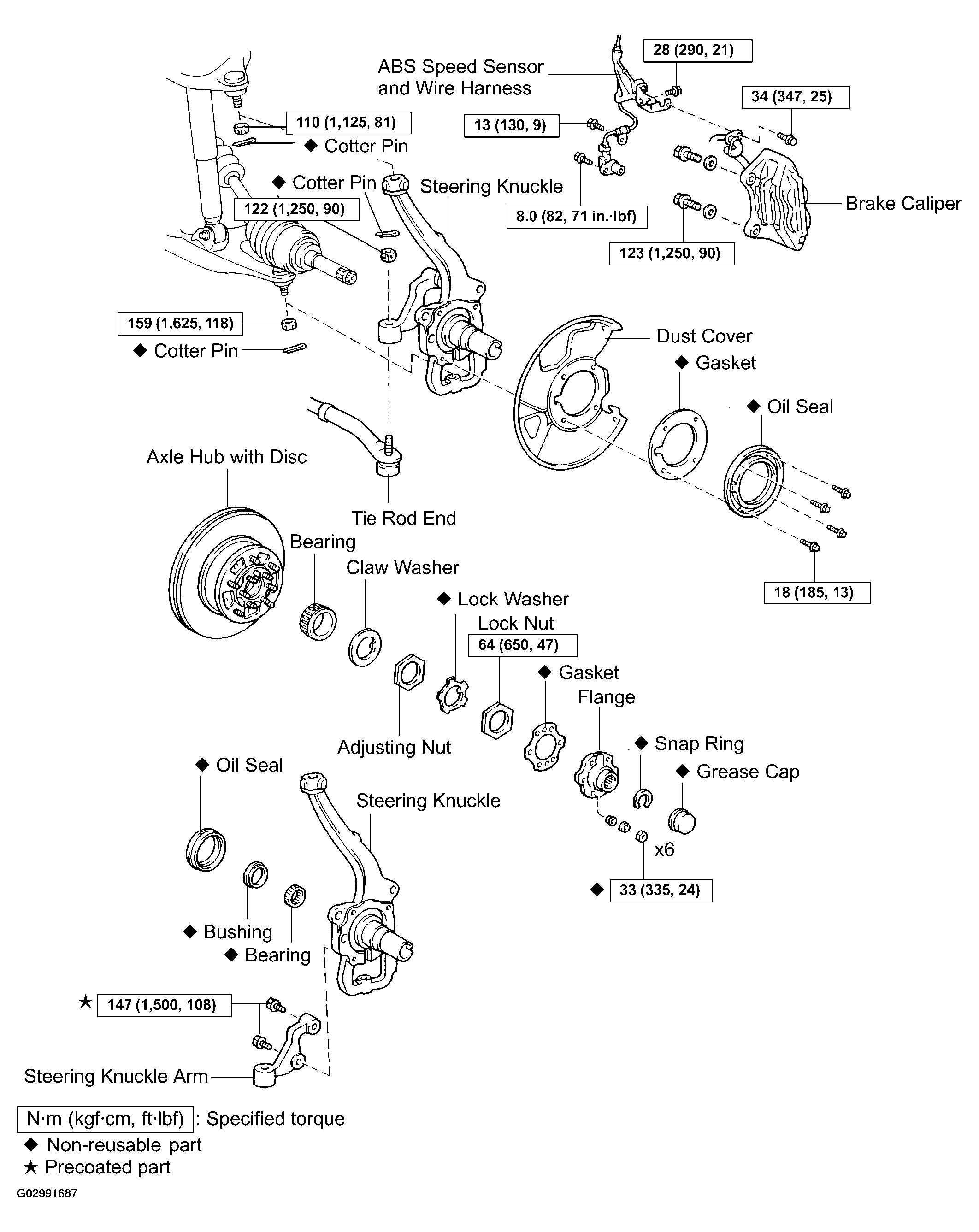

Fig 1: Exploded View Of Steering Knuckle With Torque Specifications
G02991687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
