Floor Shift Assembly: Installation

  1. INSTALL FLOOR SHIFT LEVER ASSEMBLY
    1. Install the floor shift lever assembly with the 6 bolts.

      Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

    2. Connect the connector to the floor shift lever assembly.

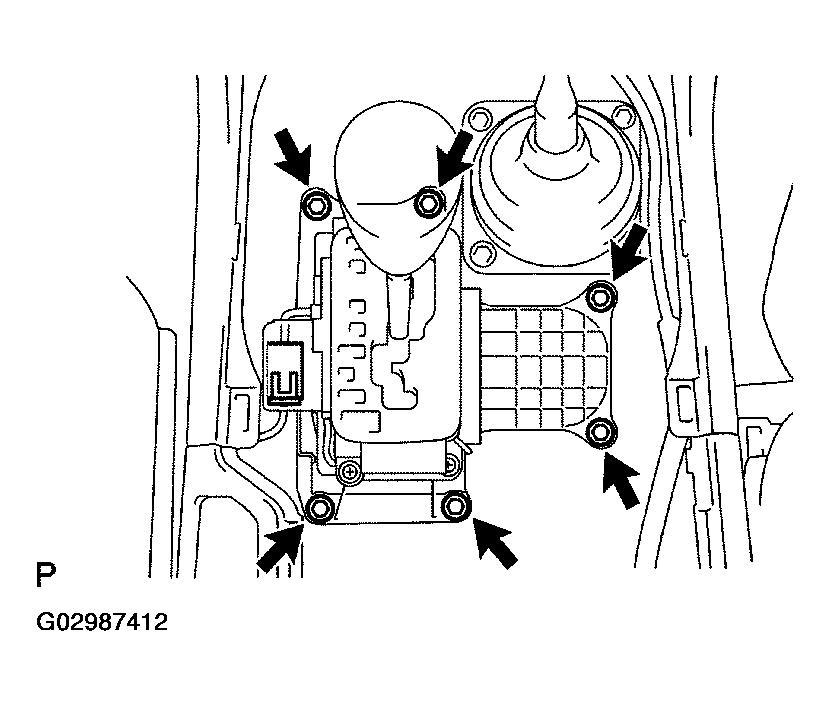

    Fig 1: Installing Floor Shift Lever Assembly With 6 Bolts
    G02987412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL No. 1 FLOOR SHIFT GEAR SHIFTING ROD
    1. Shift into the N position.
    2. Connect the No. 1 floor shift gear shifting rod and the connecting rod swivel with the nut.

      Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

    Fig 2: Connecting Rod Swivel With Nut
    G02987413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL UPPER CONSOLE PANEL (See  REMOVAL  )
  4. INSTALL TRANSFER SHIFT LEVER KNOB
