Automatic Transmission (On-Vehicle Service): Operation

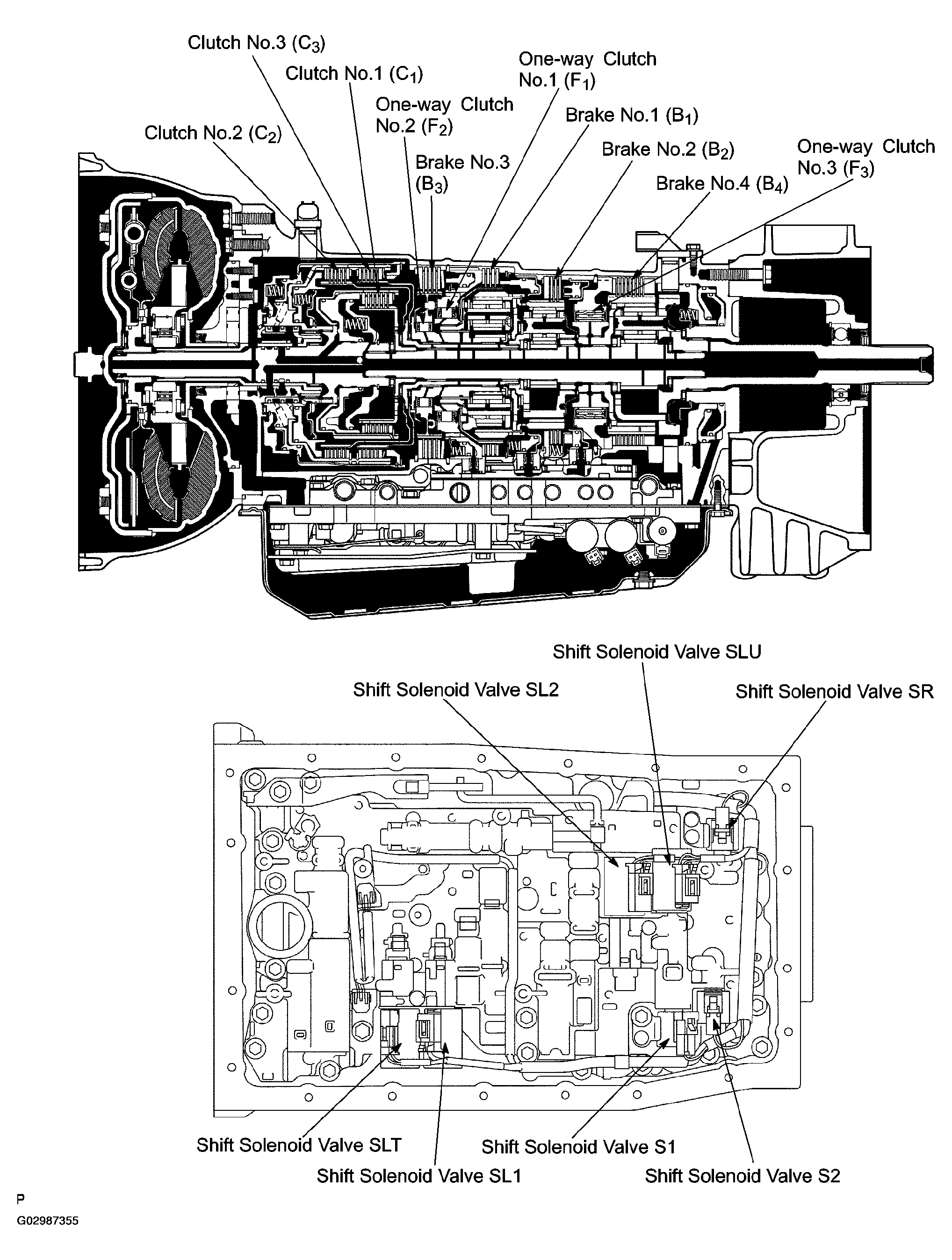

Fig 1: Identifying Automatic Transmission System Components Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Operating Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
