Pattern Select Switch Circuit (2nd Start Switch): Wiring Diagram

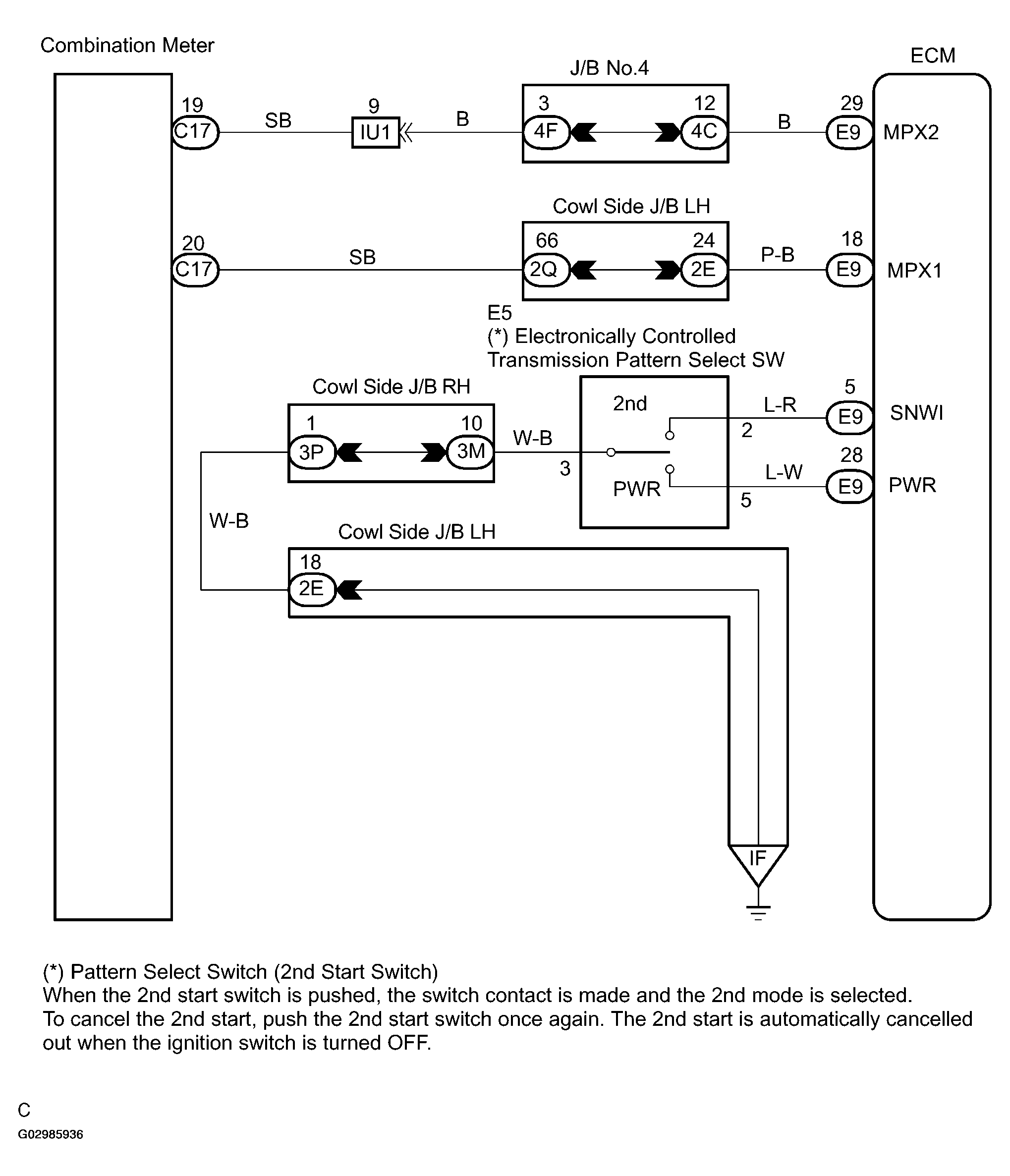

Fig 1: Pattern Select Switch Wiring Diagram
G02985936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
