Front Extension Housing: Components

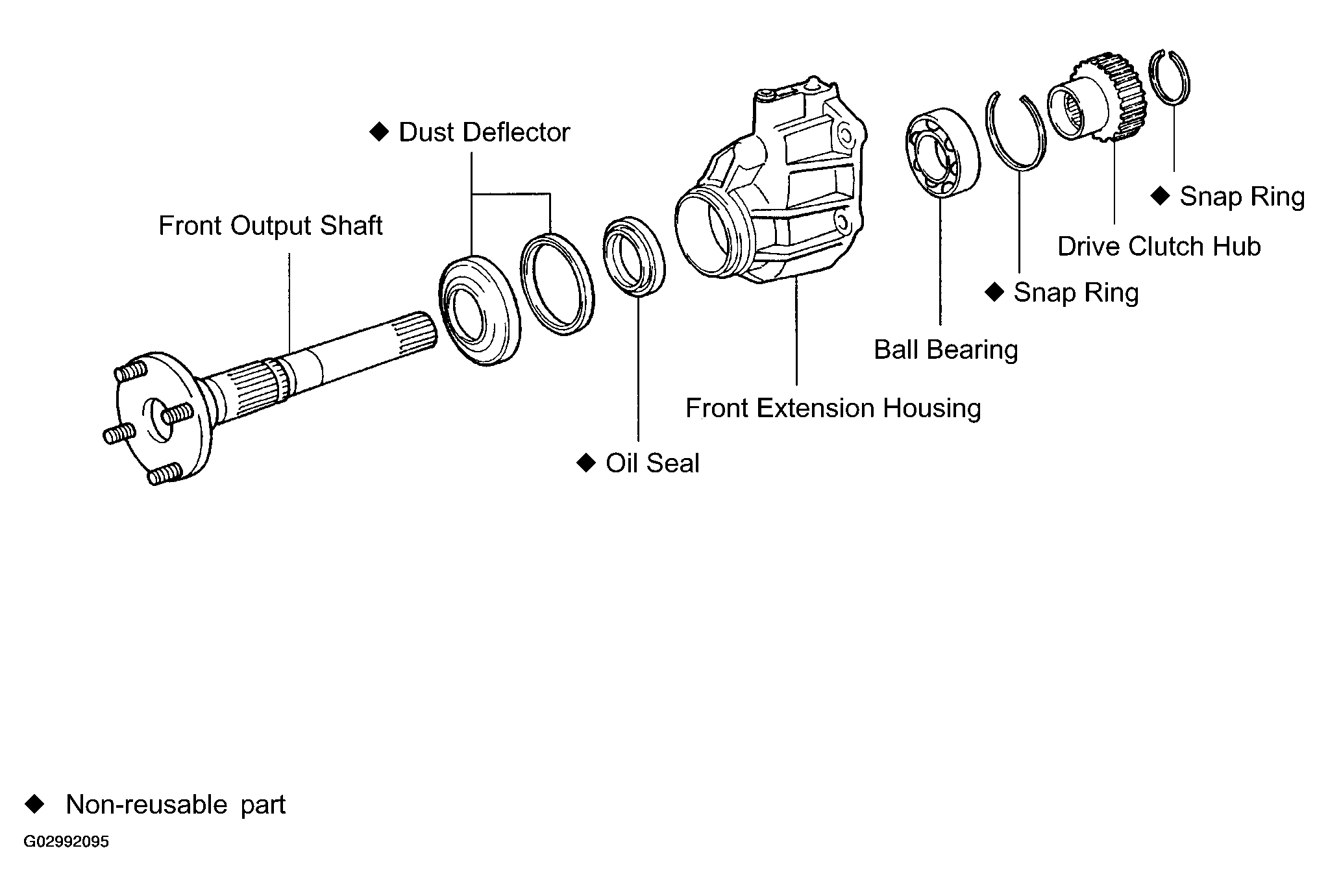

Fig 1: Identifying Components Front Extension Housing
G02992095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
