Transfer Assembly: Components

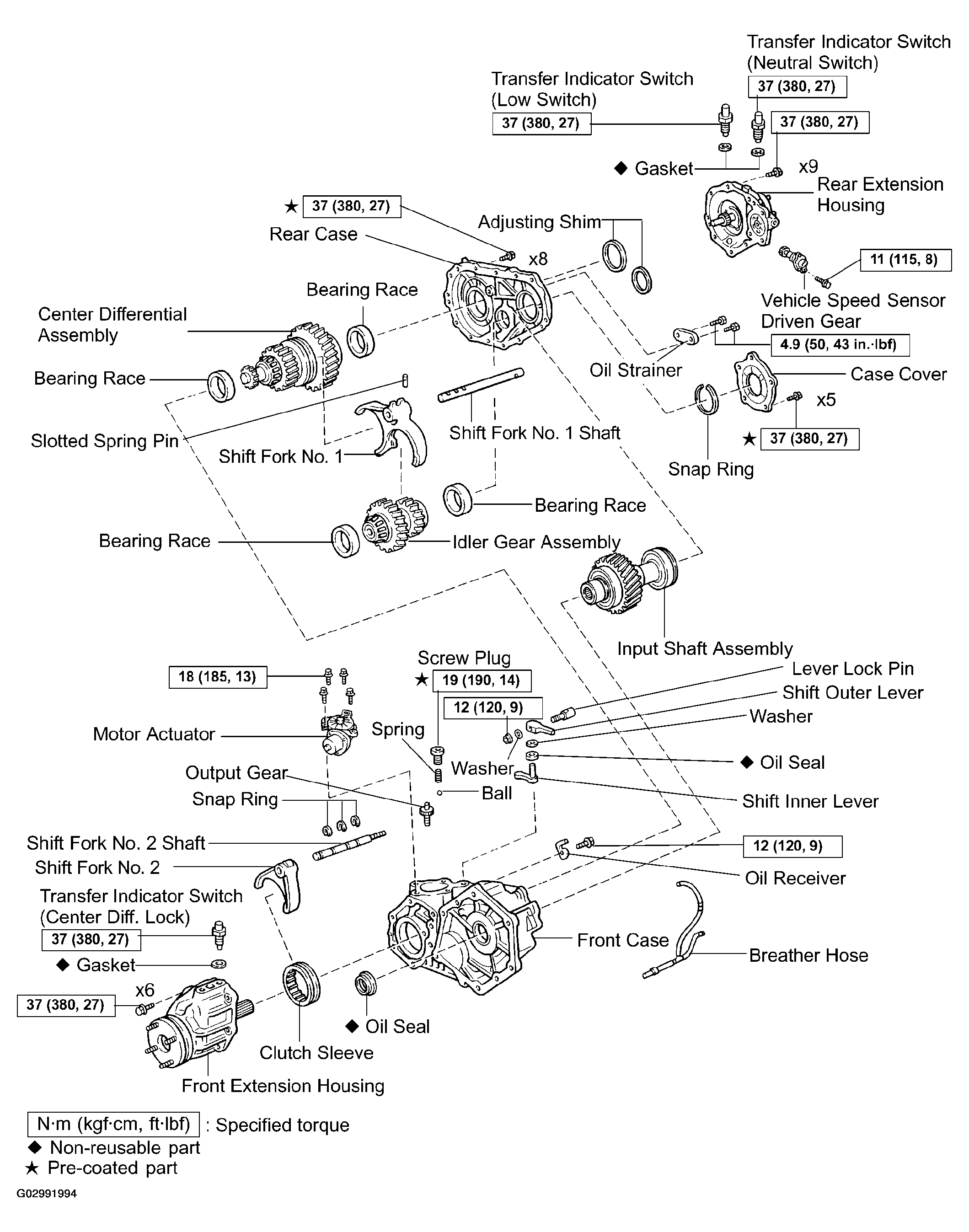

Fig 1: Replacement Components Transfer Assembly With Torque Specifications
G02991994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
