Transfer Unit: Components

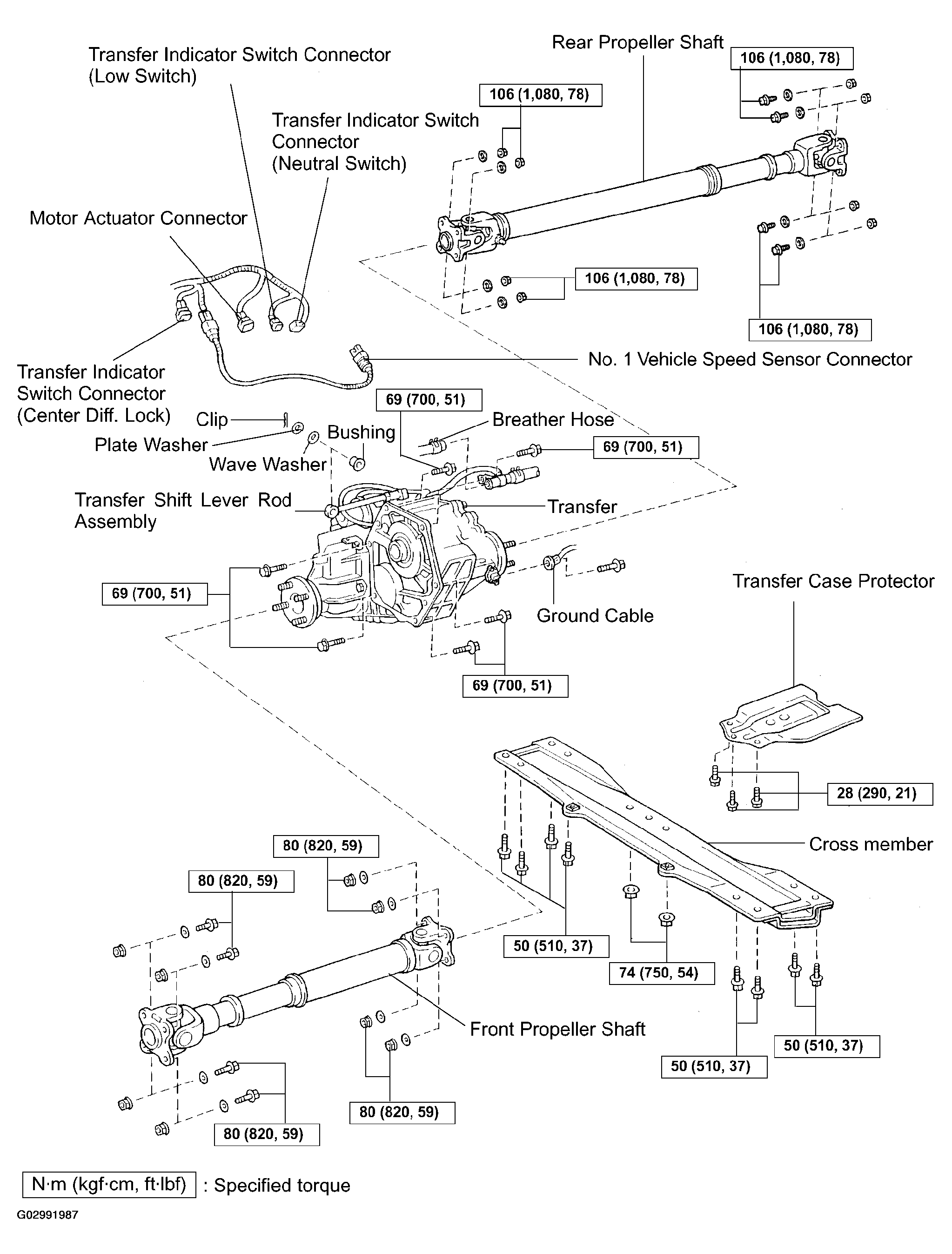

Fig 1: Replacement Components Transfer Unit With Torque Specifications
G02991987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
