Distance Control Ecu Power Source Circuit: Wiring Diagram

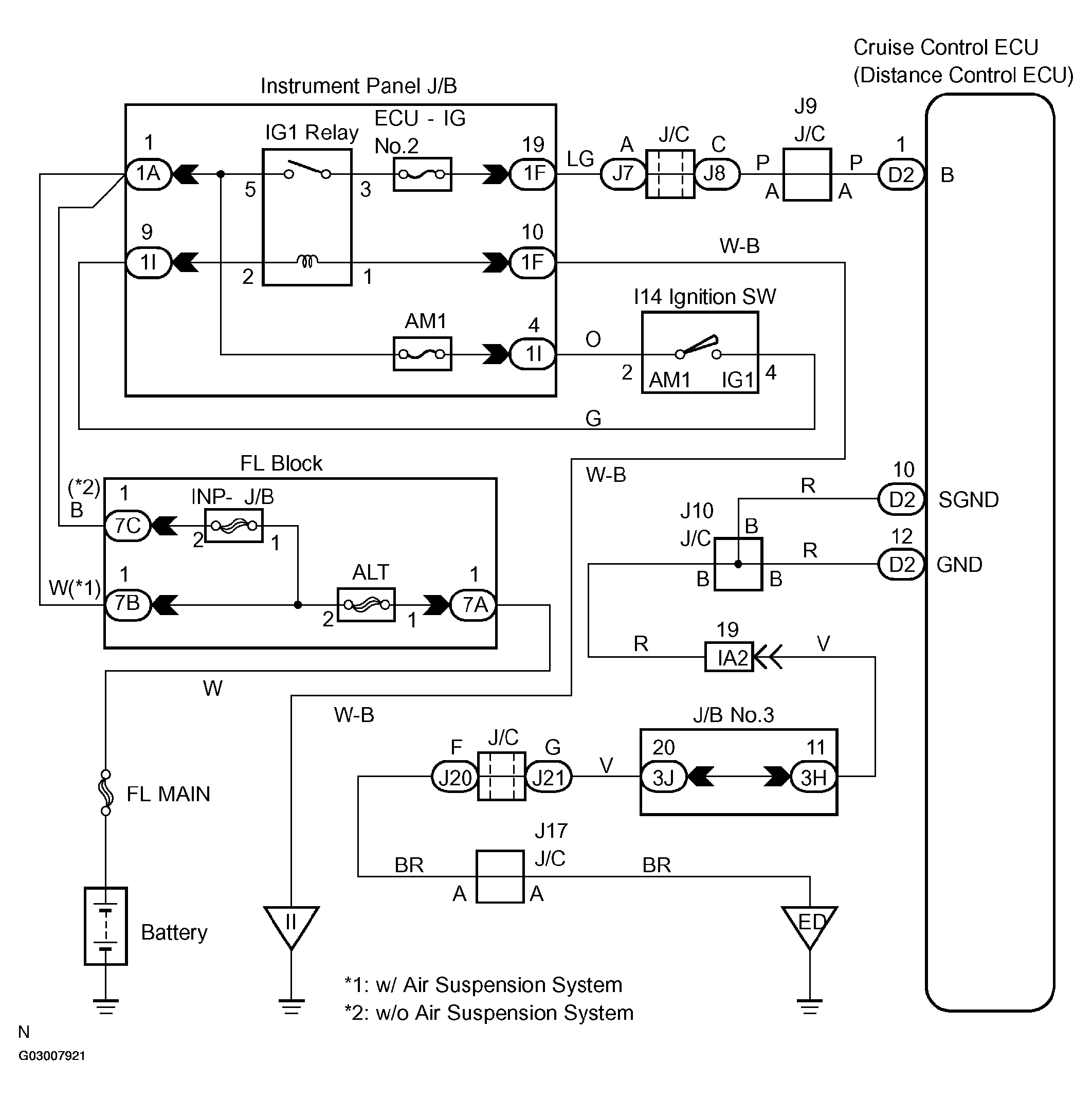

Fig 1: Distance Control ECU Power Source Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
