Power Mirror Control System (W/ Memory) - Diagnostics
›
Location
Power Mirror Control System (W/ Memory) - Diagnostics: Location

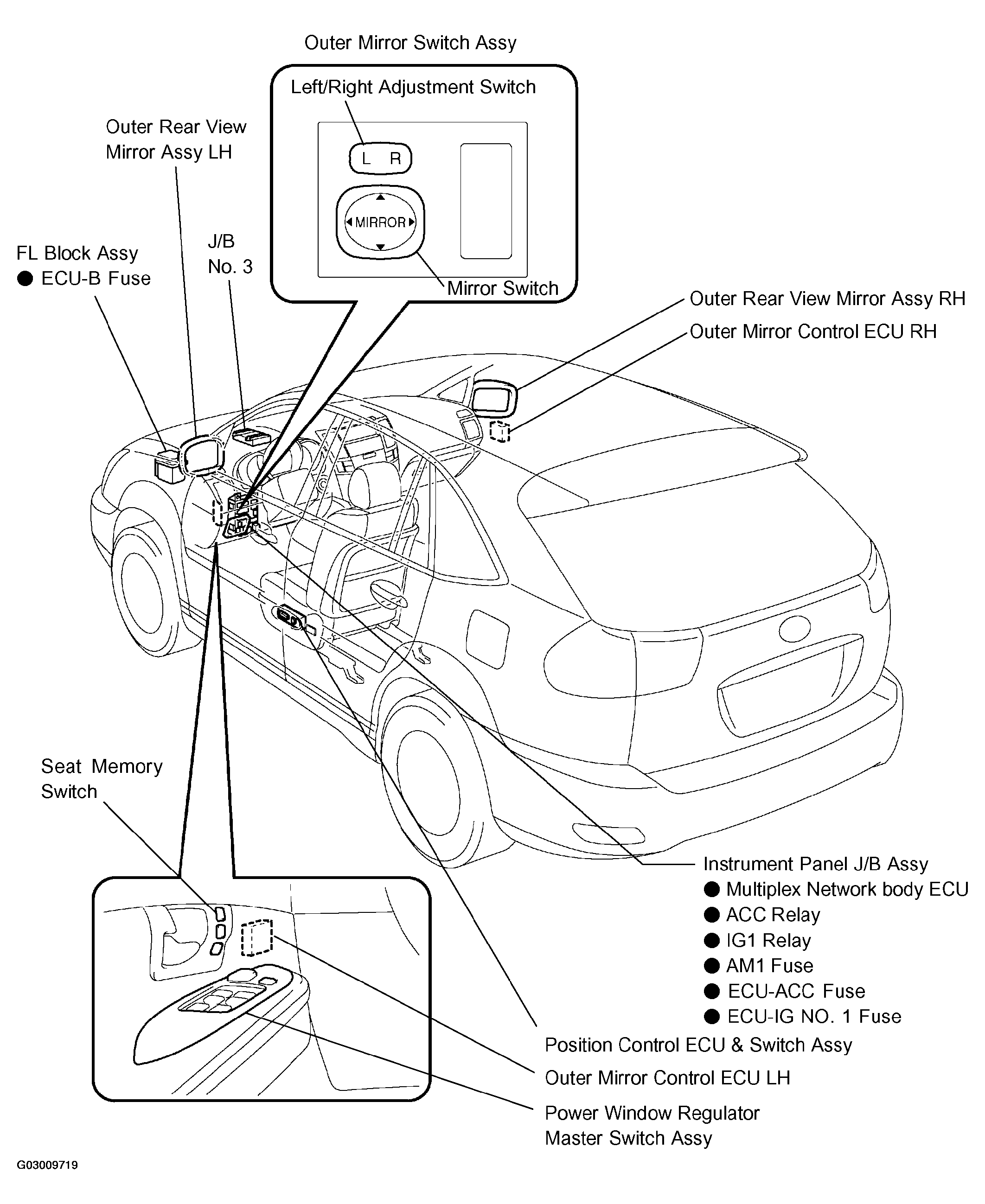

Fig 1: Locating Power Mirror Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
