Power Mirror Control System (W/ Memory) - Diagnostics
›
Remote Control Mirror Switch Circuit
›
Wiring Diagram
Remote Control Mirror Switch Circuit: Wiring Diagram

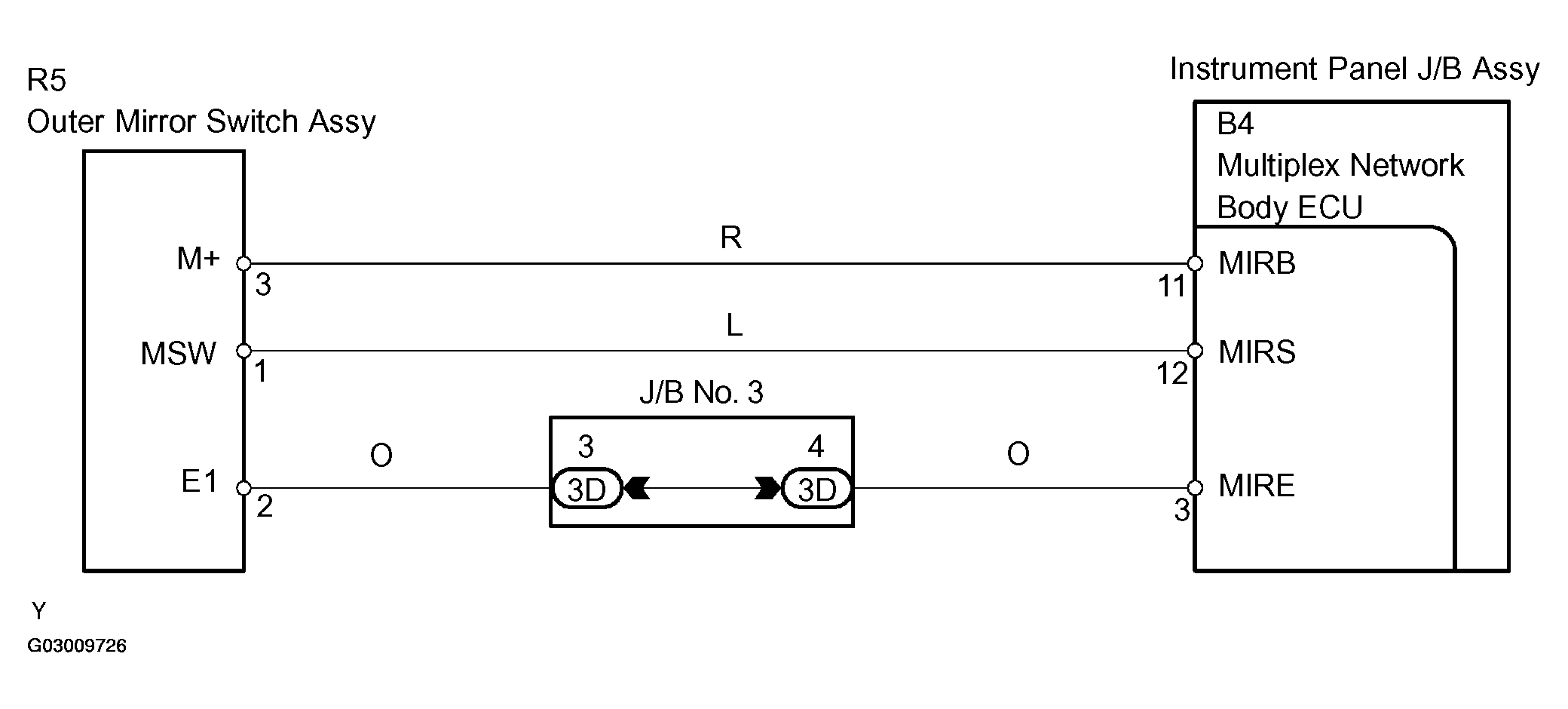

Fig 1: Remote Control Mirror Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
