Front Power Seat Control System - Diagnostics
›
Front Power Seat Control System (W/Memory)
›
Location
Front Power Seat Control System (W/Memory): Location

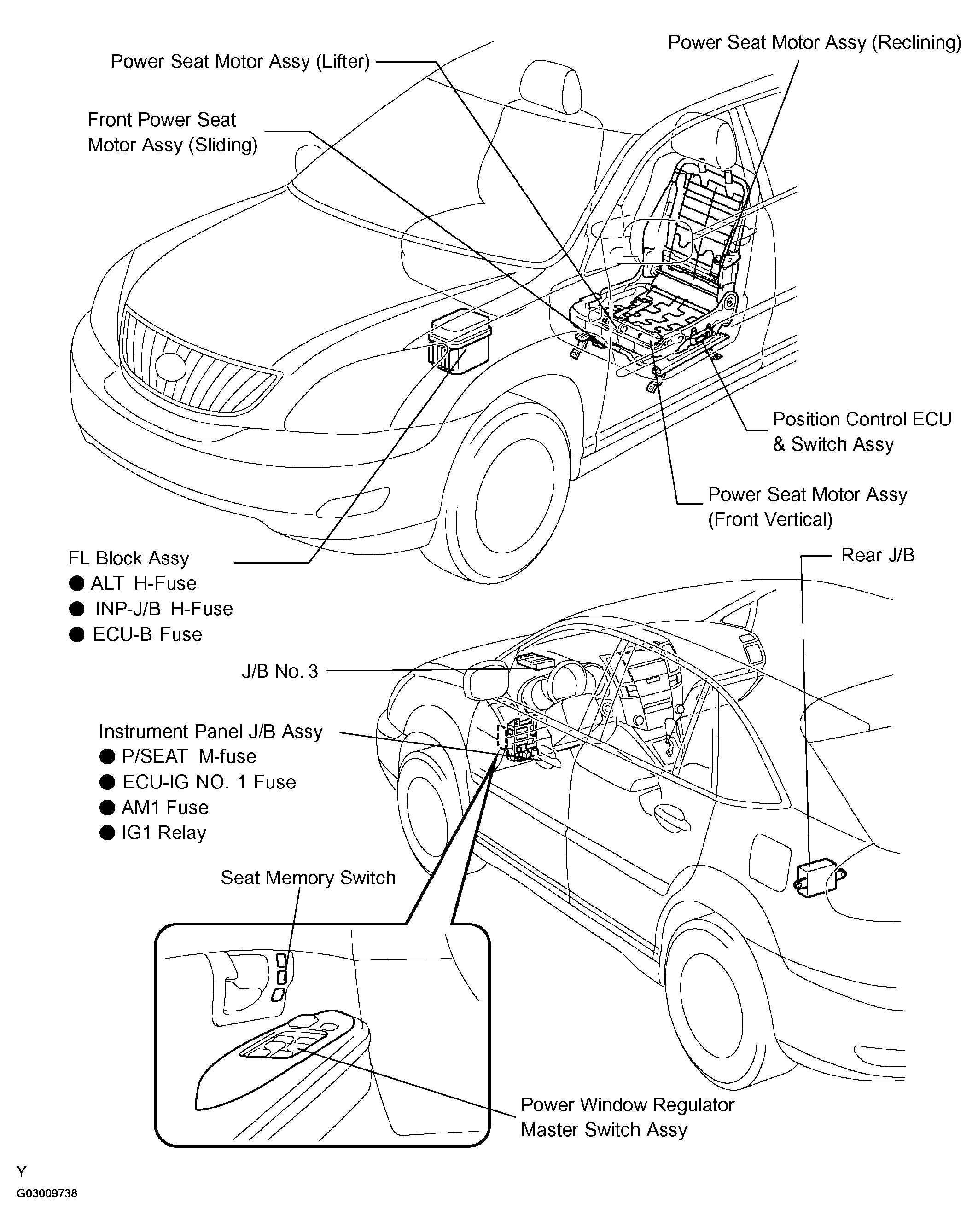

Fig 1: Identifyng Front Power Seat Control System Location (W/Memory)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
