(Door / Hatch): Hood: Components

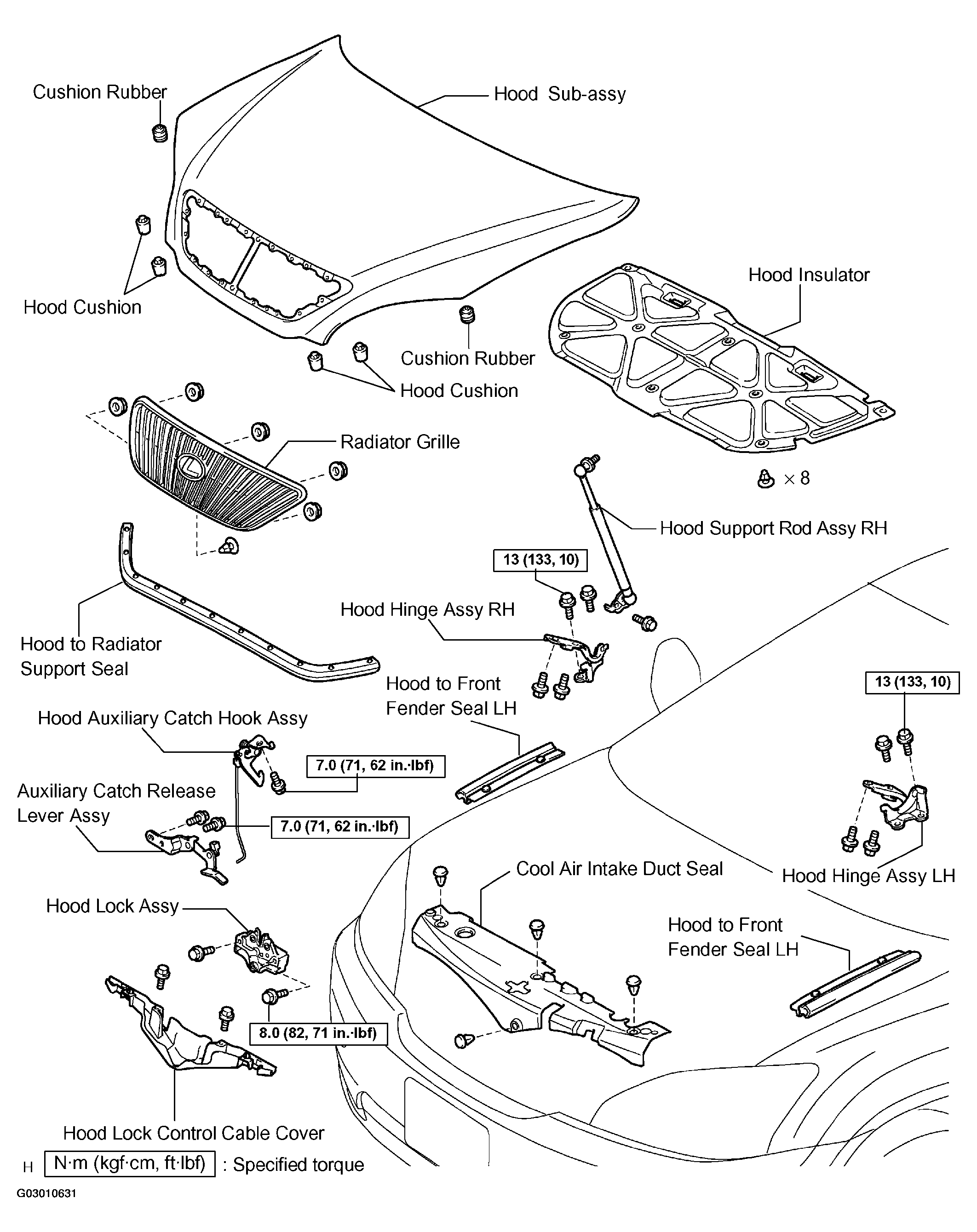

Fig 1: Identifying Hood Components

G03010631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
