Power Back Door: Components

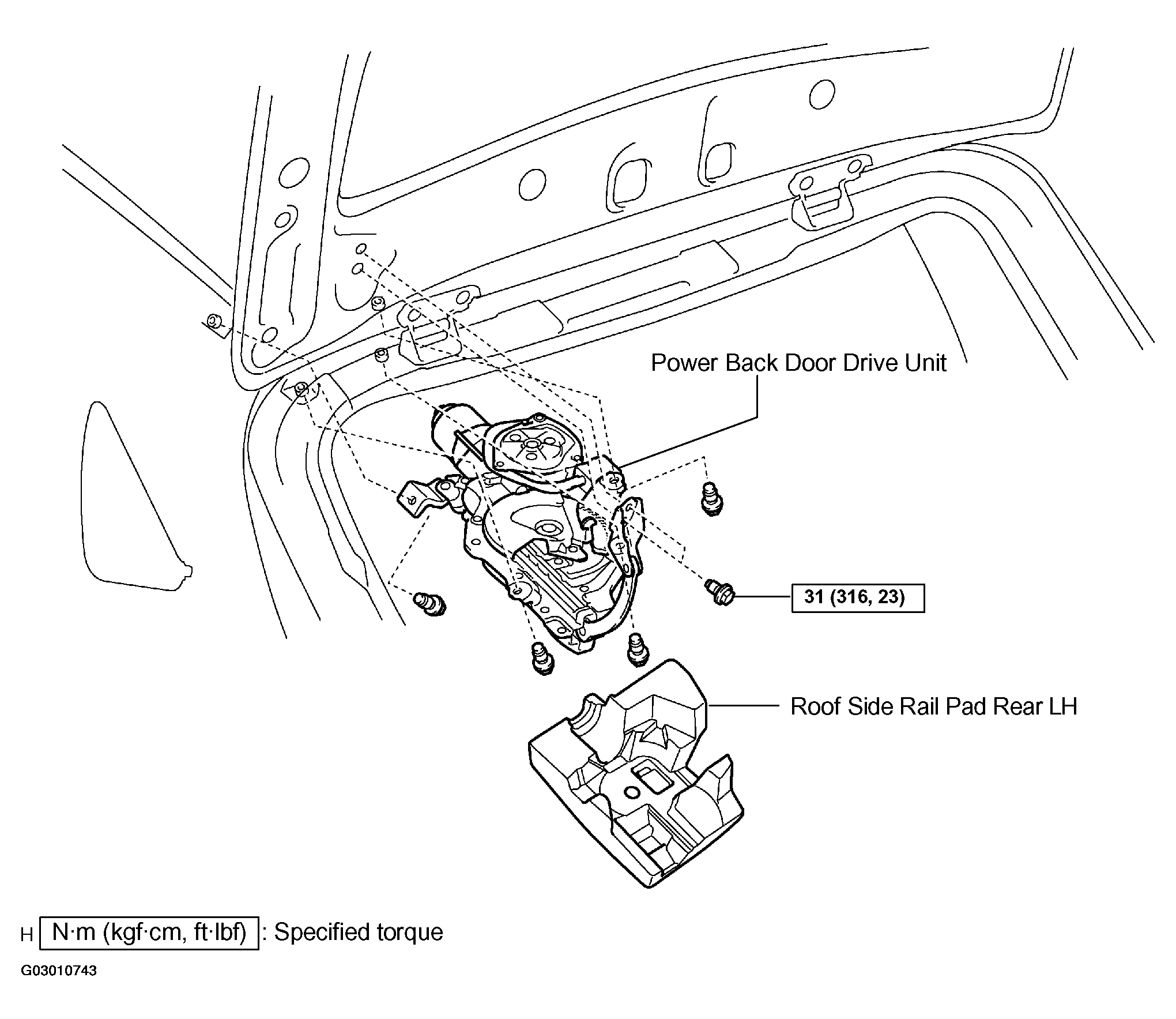

Fig 1: Identifying Power Back Door Component (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

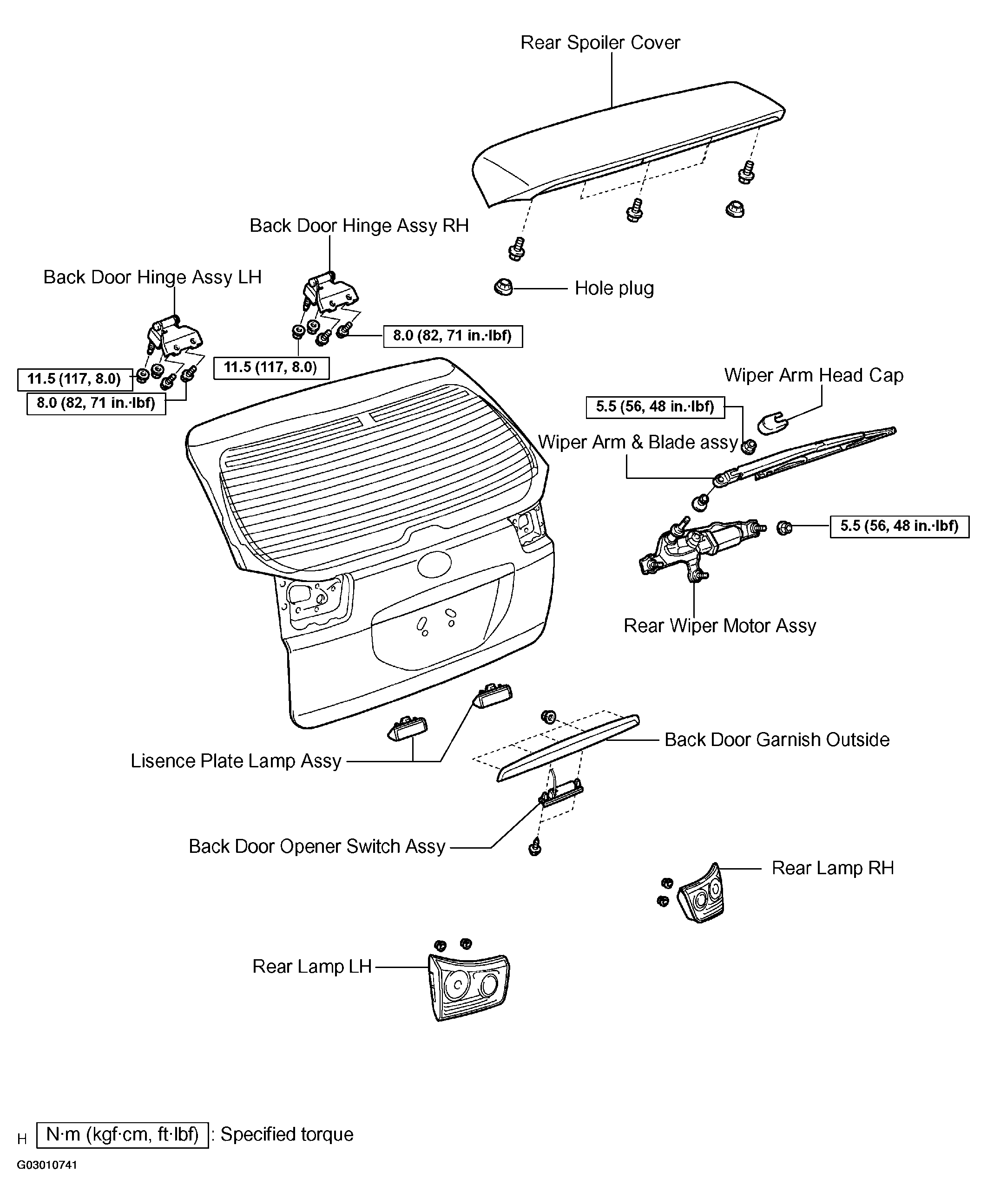

Fig 2: Identifying Power Back Door Component (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

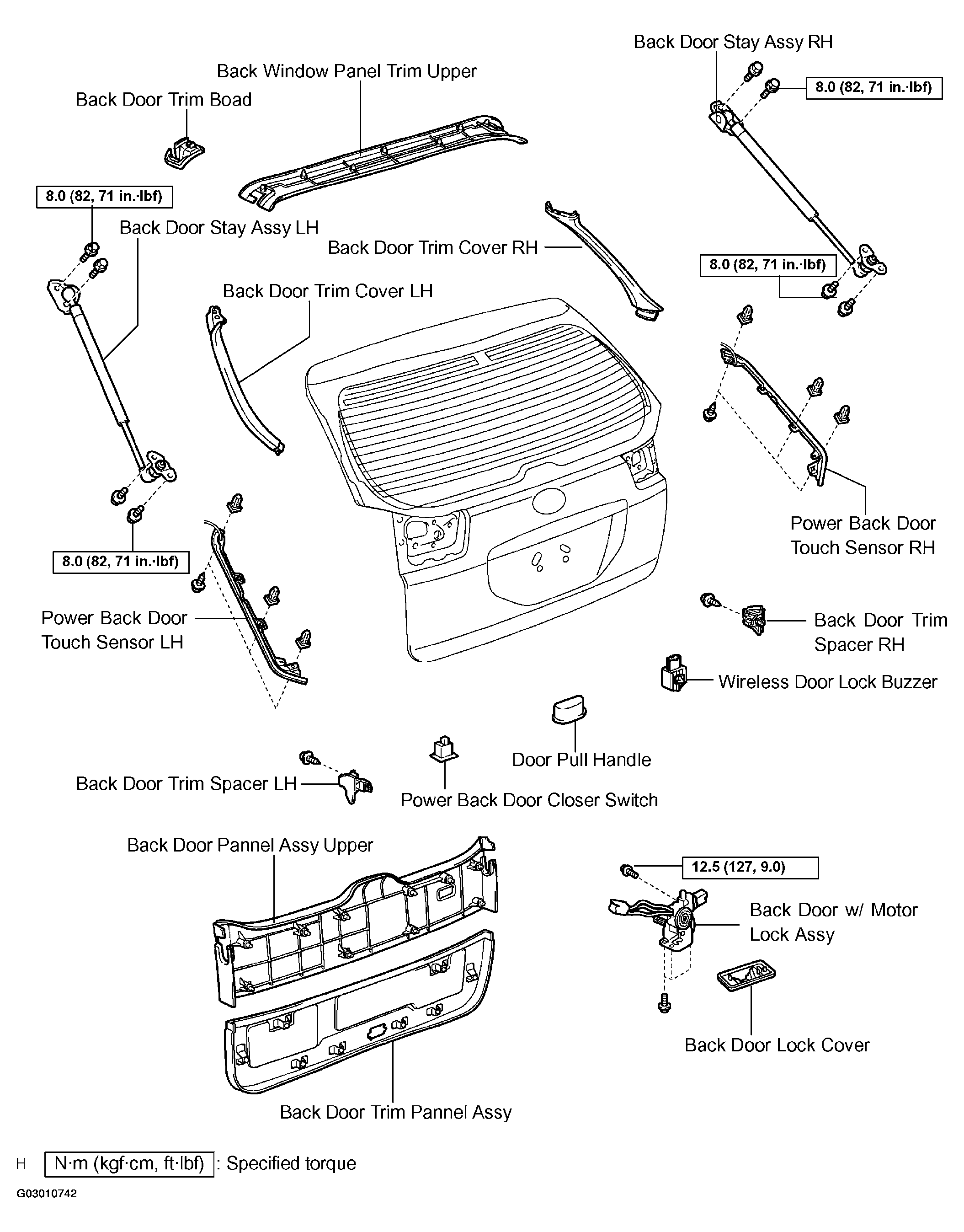

Fig 3: Identifying Power Back Door Component (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
