Power Window Control System - Diagnostics
›
Auto Up/Down Function Does Not Operate On Passenger Side
›
Wiring Diagram
Auto Up/Down Function Does Not Operate On Passenger Side: Wiring Diagram

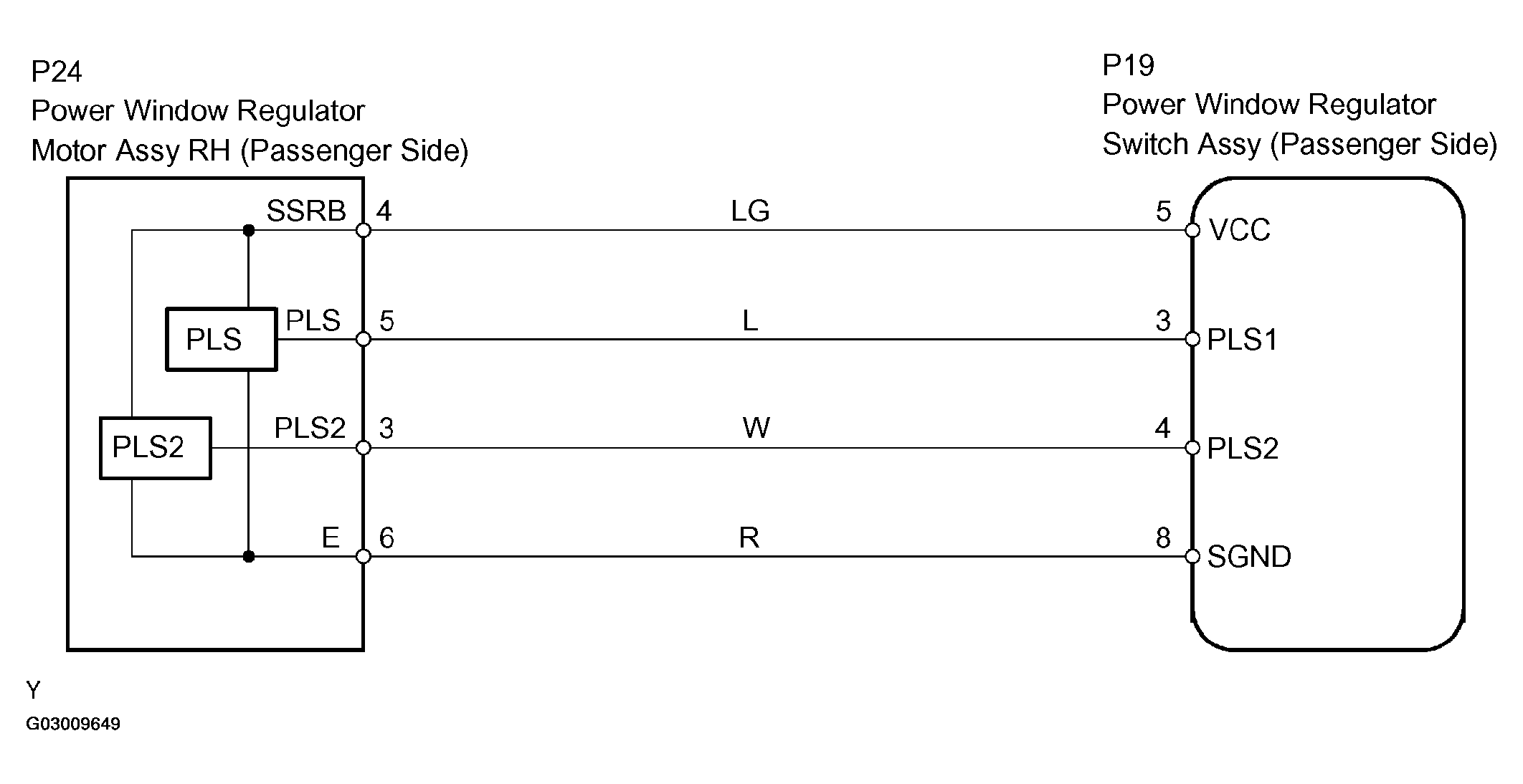

Fig 1: Auto Up/Down Function Does Not Operate On Passenger Side Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
