Rear Window Defogger Does Not Operate (Indicator On)
›
Wiring Diagram
Rear Window Defogger Does Not Operate (Indicator On): Wiring Diagram

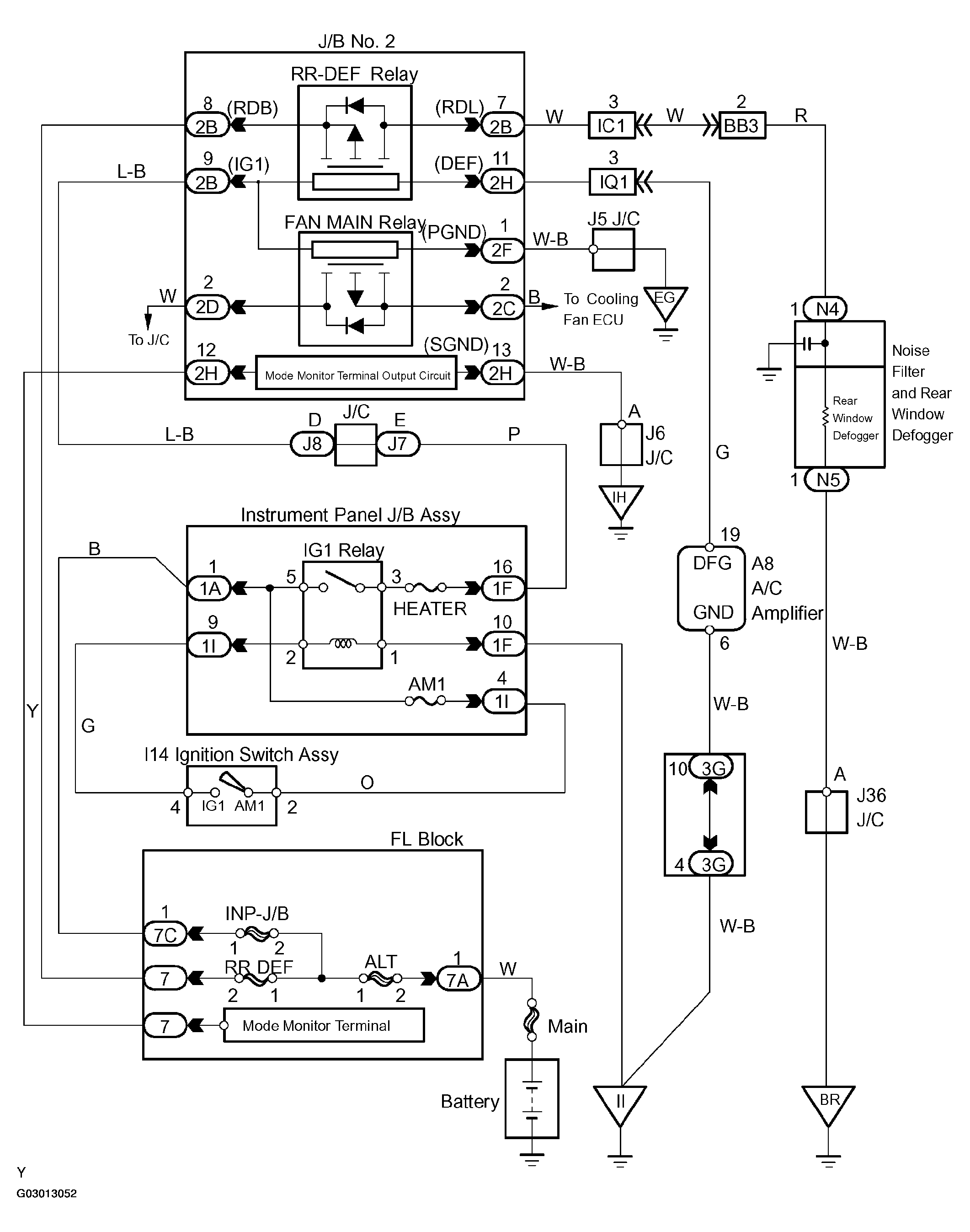

Fig 1: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
