Engine Performance
›
SFI System - Diagnostics
›
Active Control Engine Mount
›
Wiring Diagram
Active Control Engine Mount: Wiring Diagram

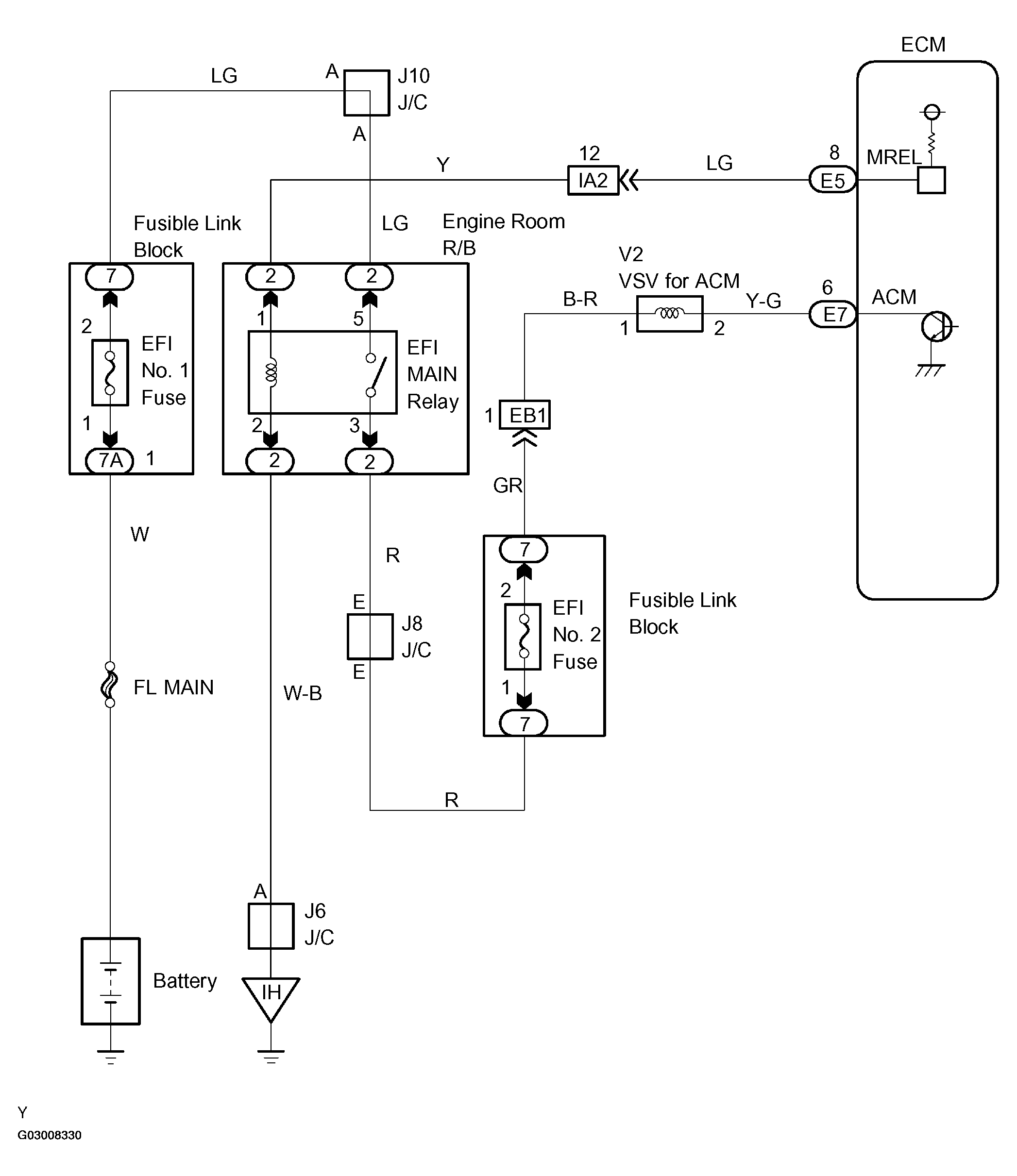

Fig 1: Active Control Engine Mount Wiring Diagram
