Engine Performance
›
SFI System - Diagnostics
›
ECM Power Source Circuit
›
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram

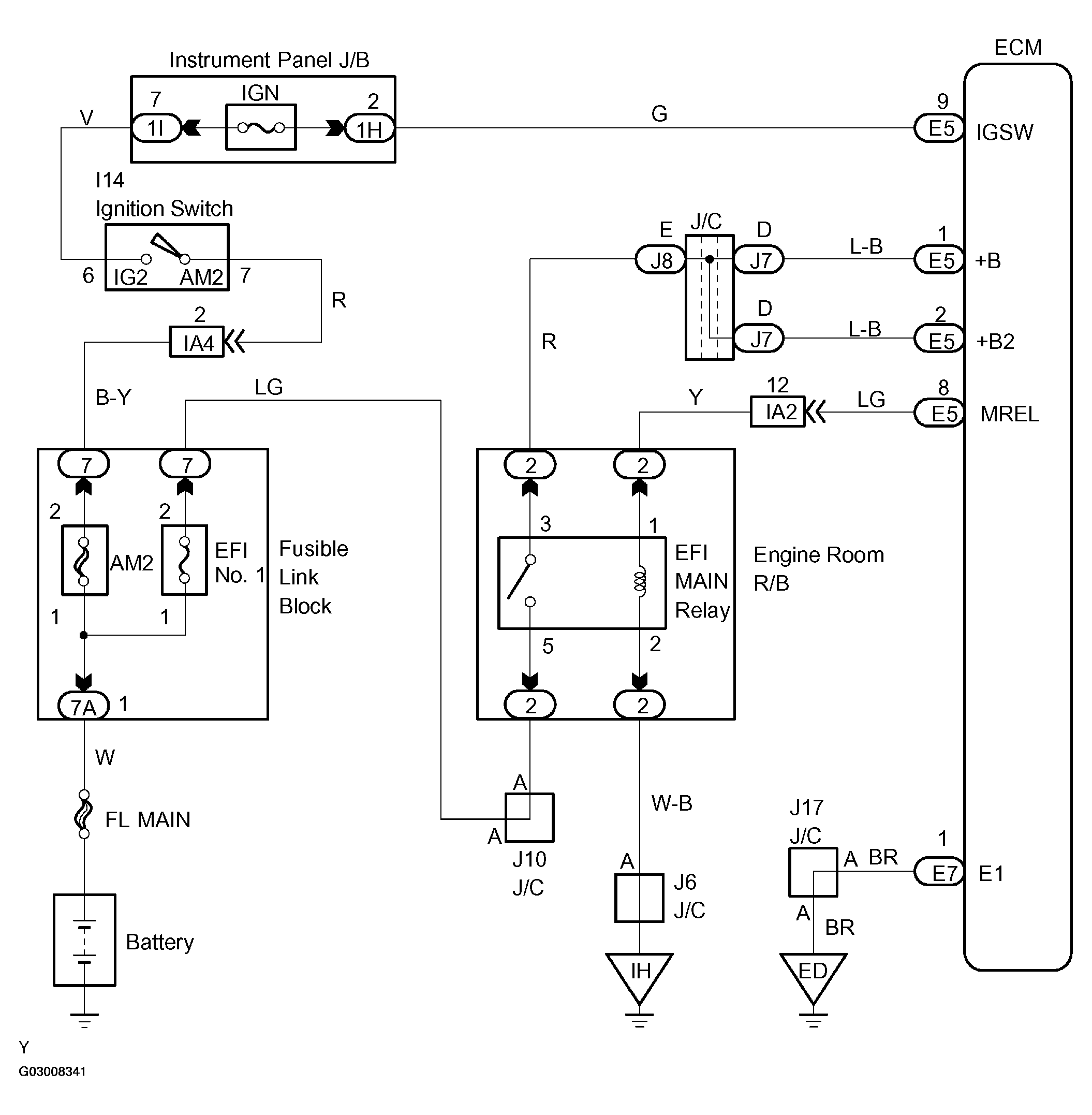

Fig 1: ECM Power Source Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
