Network Gateway Ecu: Replacement
WARNING: This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
COMPONENTS: See COMPONENTS
- REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (See REPLACEMENT )
- REMOVE GLOVE COMPARTMENT DOOR ASSY (See REPLACEMENT )

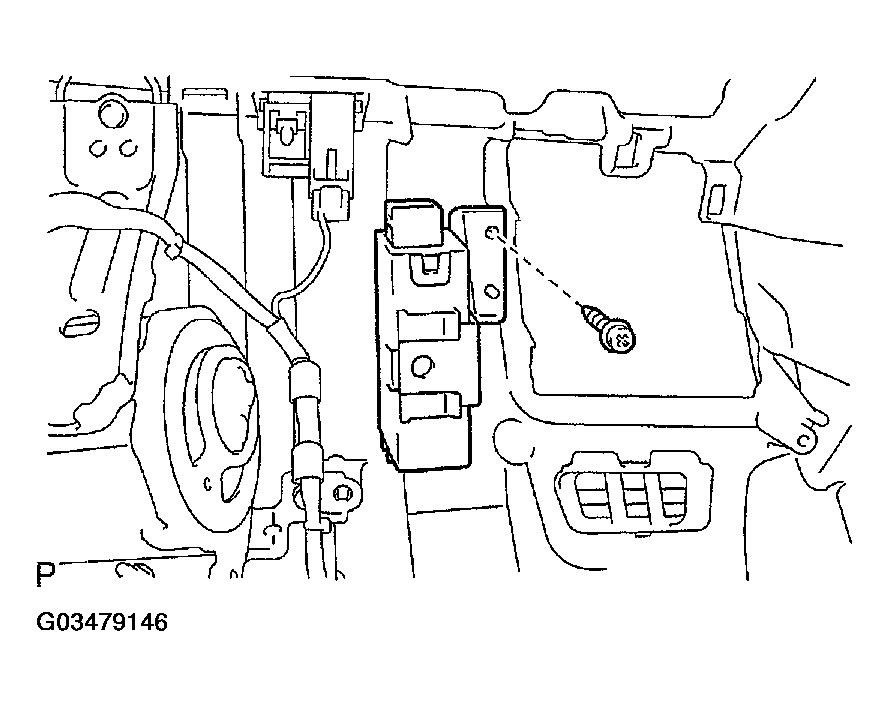

- REMOVE NETWORK GATEWAY ECU
- Disconnect the connector.
- Remove the screw and the network gateway ECU.
