GPS Antenna: Replacement

WARNING: This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See REPLACEMENT )
REMOVE INSTRUMENT PANEL PIN NO.1 (See REPLACEMENT )
REMOVE DEFROSTER NOZZLE ASSY (See REPLACEMENT )
REMOVE GPS ANTENNA
1. Remove the 2 screws.
2. Disconnect the clamp and antenna.

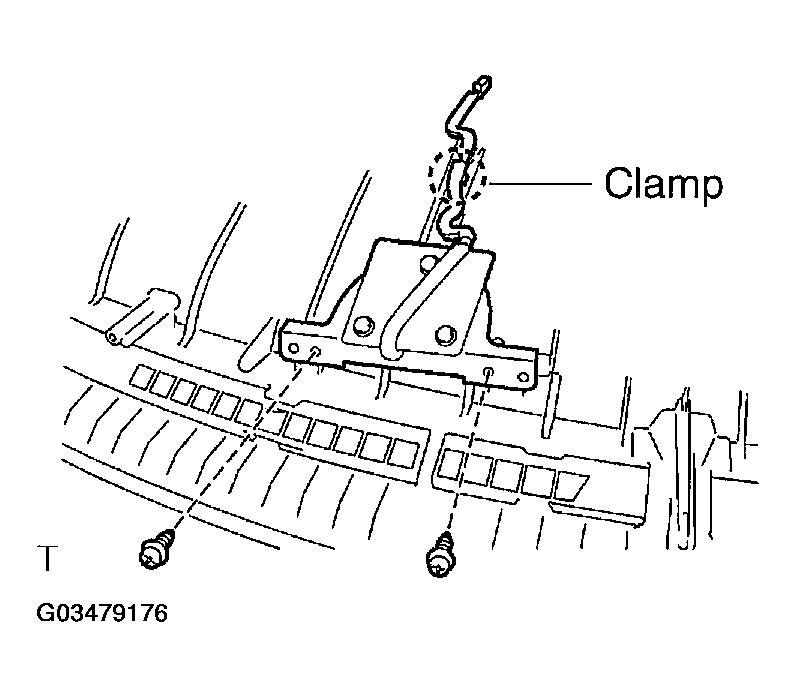

  Fig 1: Removing GPS Antenna
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GPS ANTENNA
1. Install the antenna as shown in the illustration.
2. Install the 2 screws.

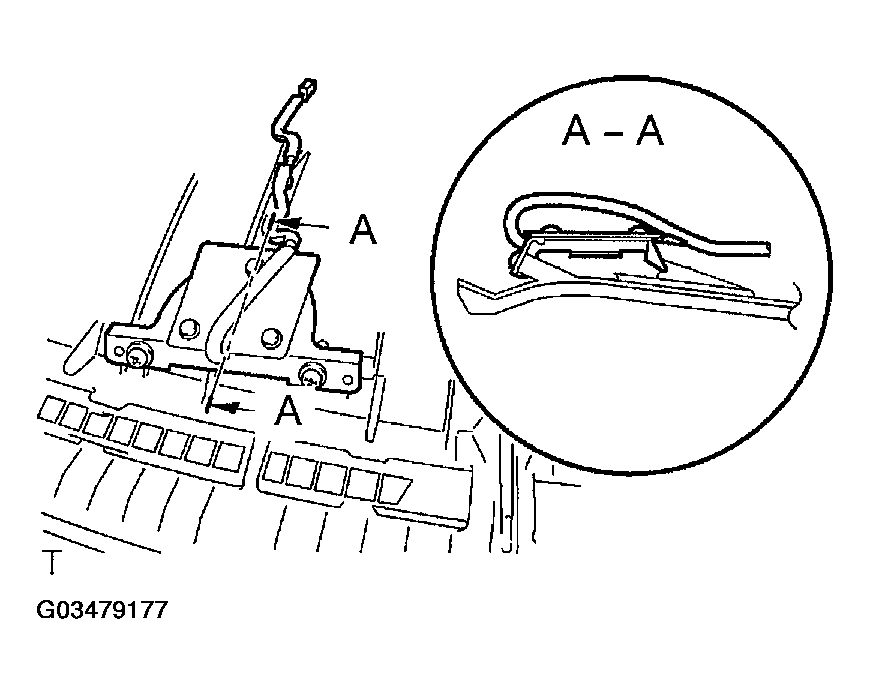

  Fig 2: Installing GPS Antenna
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
