Rear Axle Hub Bolt: Components

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

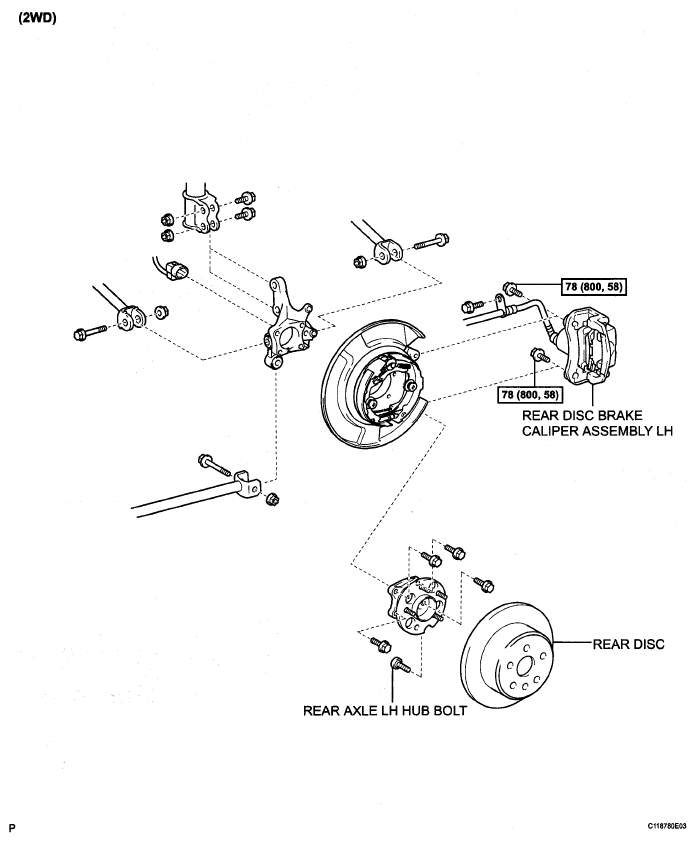

Fig 1: Identifying Rear Axle Hub Bolt Replacement Components With Torque Specifications (2WD)

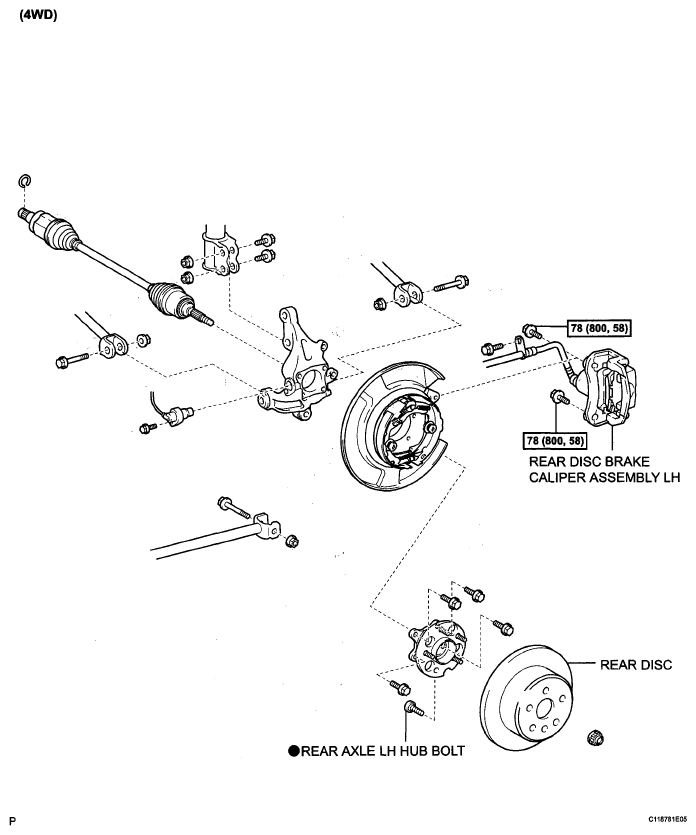

Fig 2: Identifying Rear Axle Hub Bolt Replacement Components With Torque Specifications (4WD)
