Glossary Of Sae And LEXUS Terms

This glossary lists all SAE-J1930 terms and abbreviations used in this information in compliance with SAE recommendations, as well as their LEXUS equivalents.

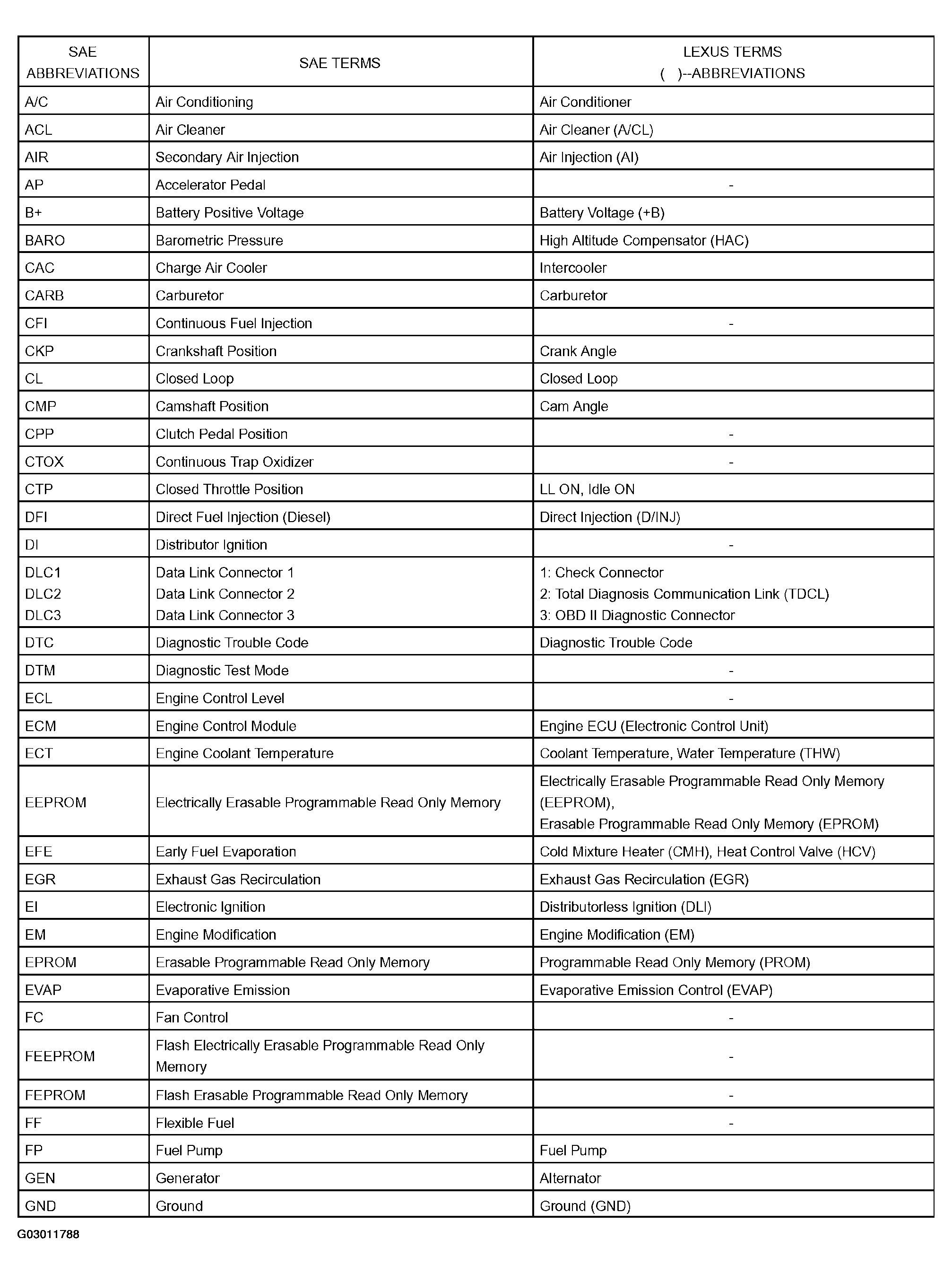

Fig 1: SAE Abbreviation And Terms Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

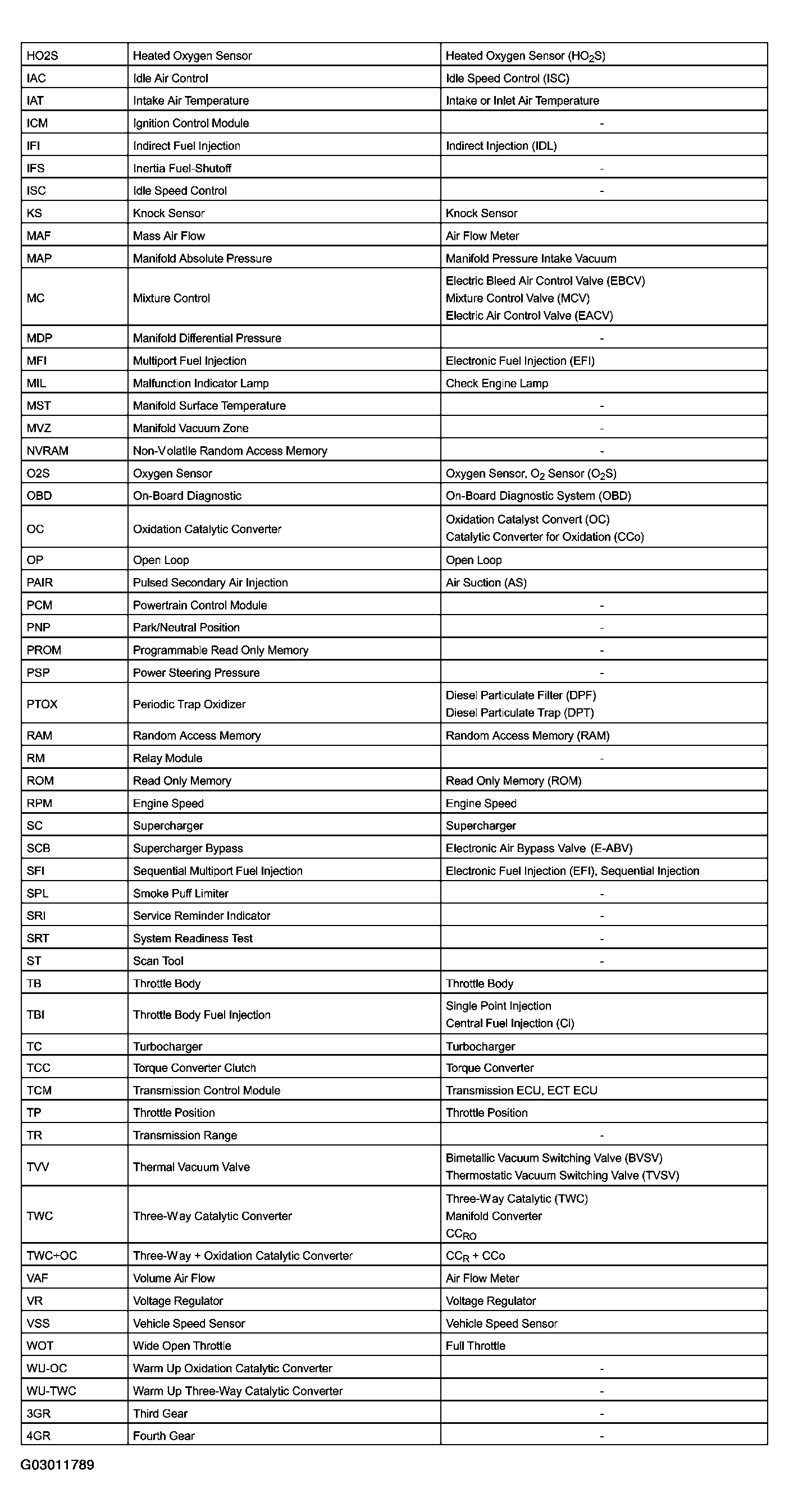

Fig 2: SAE Abbreviation And Terms Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
