Speed Sensor (U151E/U151F): Replacement

  1. REMOVE BATTERY
  2. REMOVE AIR CLEANER ASSY
  3. REMOVE AIR CLEANER HOSE NO. 1
  4. REMOVE AIR CLEANER INLET NO. 2
  5. REMOVE AIR CLEANER BRACKET
  6. REMOVE AIR CLEANER INLET NO. 1
  7. REMOVE SPEED SENSOR (NT SENSOR)
    1. Disconnect the speed sensor connector.
    2. Remove the bolt and speed sensor.

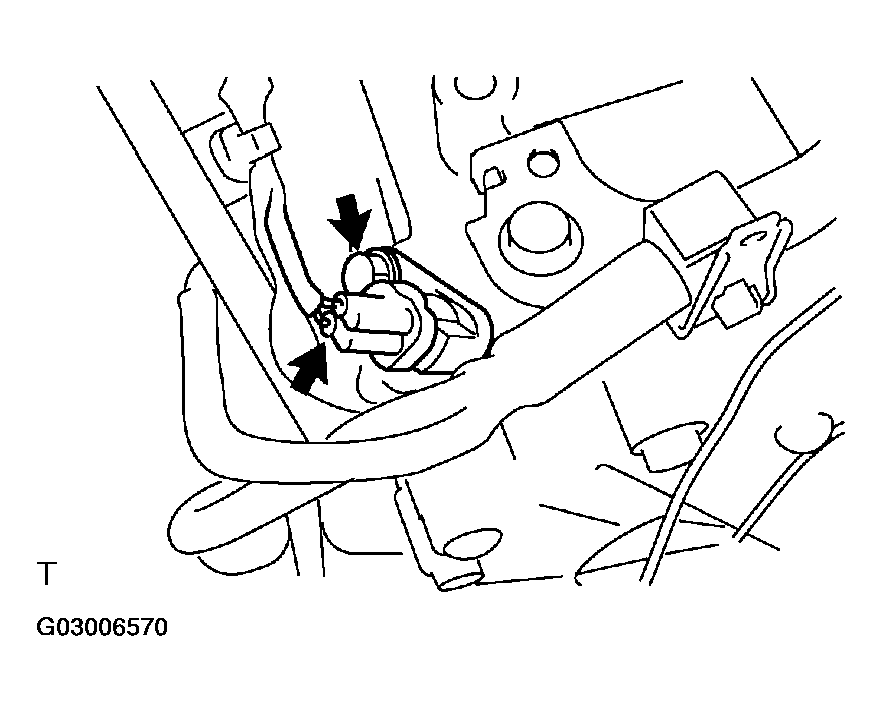

      3. Fig 1: Removing Speed Sensor (NT Sensor)
      G03006570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SPEED SENSOR (NC SENSOR)
    1. Disconnect the speed sensor connector.
    2. Remove the bolt and speed sensor.
      3. Fig 2: Remove Speed Sensor (NC Sensor)
      G03006571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL SPEED SENSOR (NC SENSOR)
    1. Coat the O-ring with ATF.
    2. Install the speed sensor with the bolt.

      Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

      HINT:

      Make sure of the sensor manufacturer's name.

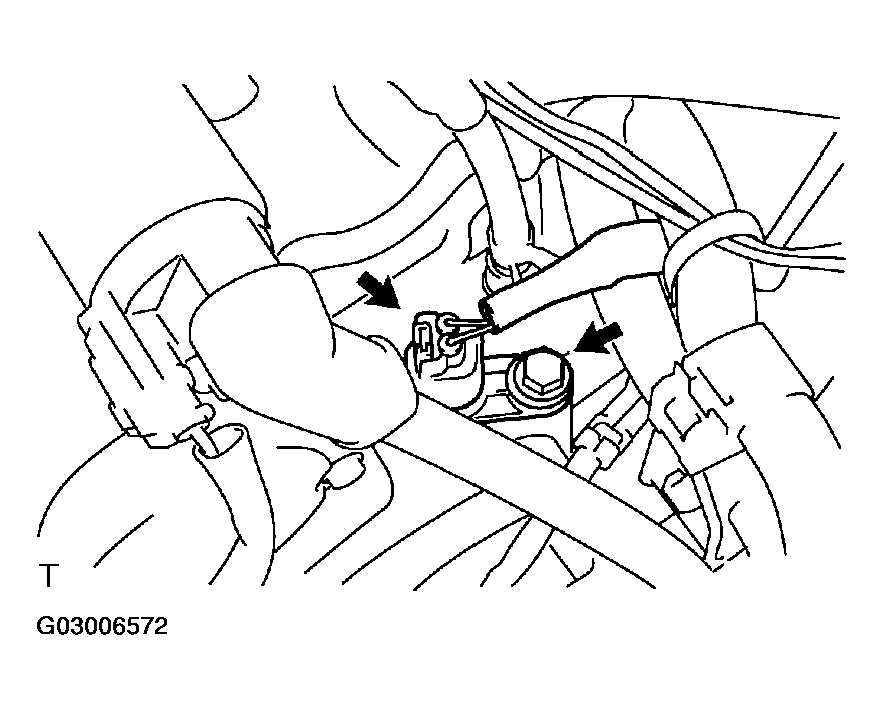

      Fig 3: Installing Speed Sensor With Bolt
      G03006572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the speed sensor connector.
  10. INSTALL SPEED SENSOR (NT SENSOR)
    1. Coat the O-ring with ATF.
    2. Install the speed sensor with the bolt.

      Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

      HINT:

      Make sure of the sensor manufacturer's name.

      Fig 4: Installing Speed Sensor With Bolt
      G03006573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the speed sensor connector.
  11. INSTALL AIR CLEANER INLET NO. 1
  12. INSTALL AIR CLEANER BRACKET
  13. INSTALL AIR CLEANER INLET NO. 2
  14. INSTALL AIR CLEANER HOSE NO. 1
  15. INSTALL AIR CLEANER ASSY
  16. INSTALL BATTERY
