Electronic Controlled Automatic Transaxle (ECT) - Diagnostics: Location

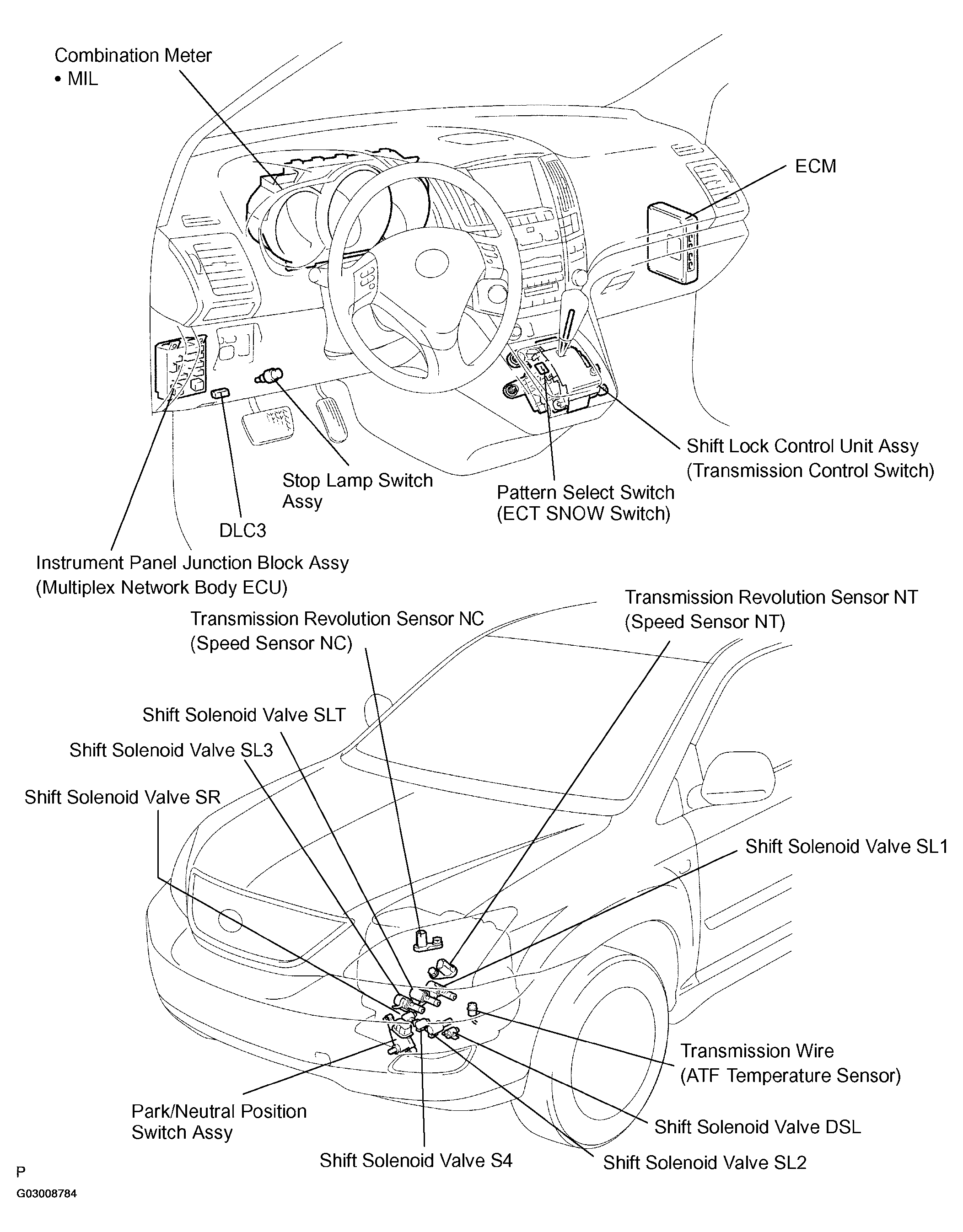

Fig 1: Identifying Electronic Controlled Automatic Transaxle (ECT) Components Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
