Inspection Procedure

1. Disconnect the transmission control switch connector of shift lock control unit assy.
2. Measure the voltage according to the value(s) in the table below.

Standard:

Fig 1: Tester Connection Specified Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying T7 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
2. OK: Go to next step.

1. Measure the resistance according to the value(s) in the table below.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   10 - Body ground	Below 1 Ω

   Fig 3: Checking Harness And Connector (Transmission Control Switch - Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
2. OK: Go to next step.

1. Measure resistance between each terminal of shift lock control unit assy when the shift lever is moved to each position.

   Standard:

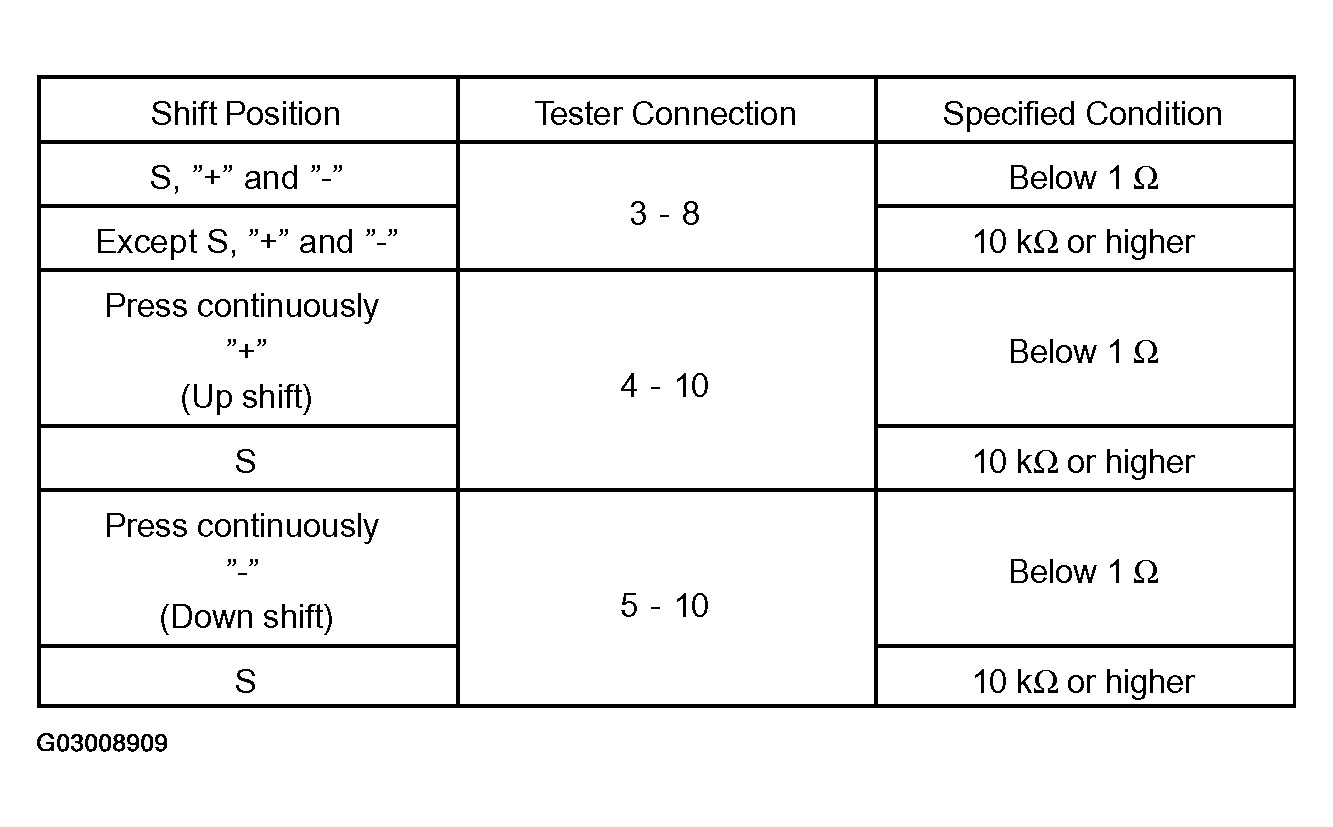

   Fig 4: Tester Connection Specified Condition Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 5: Inspecting Shift Lock Control Unit Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE SHIFT LOCK CONTROL UNIT ASSY (See  SHIFT LEVER ASSY (ATM)  )
2. OK: Go to next step.

1. Connect the transmission control switch connector of shift lock control unit assy.
2. Turn the ignition switch to the ON position, and measure the voltage according to the value(s) in the table below when the shift lever is moved to each position.

   Standard:

   Fig 6: Tester Connection Specified Condition Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 7: Connecting Transmission Control Switch Connector Of Shift Lock Control Unit Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn the ignition switch to the LOCK position.
4. Disconnect the ECM connector.
5. Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

   Standard:

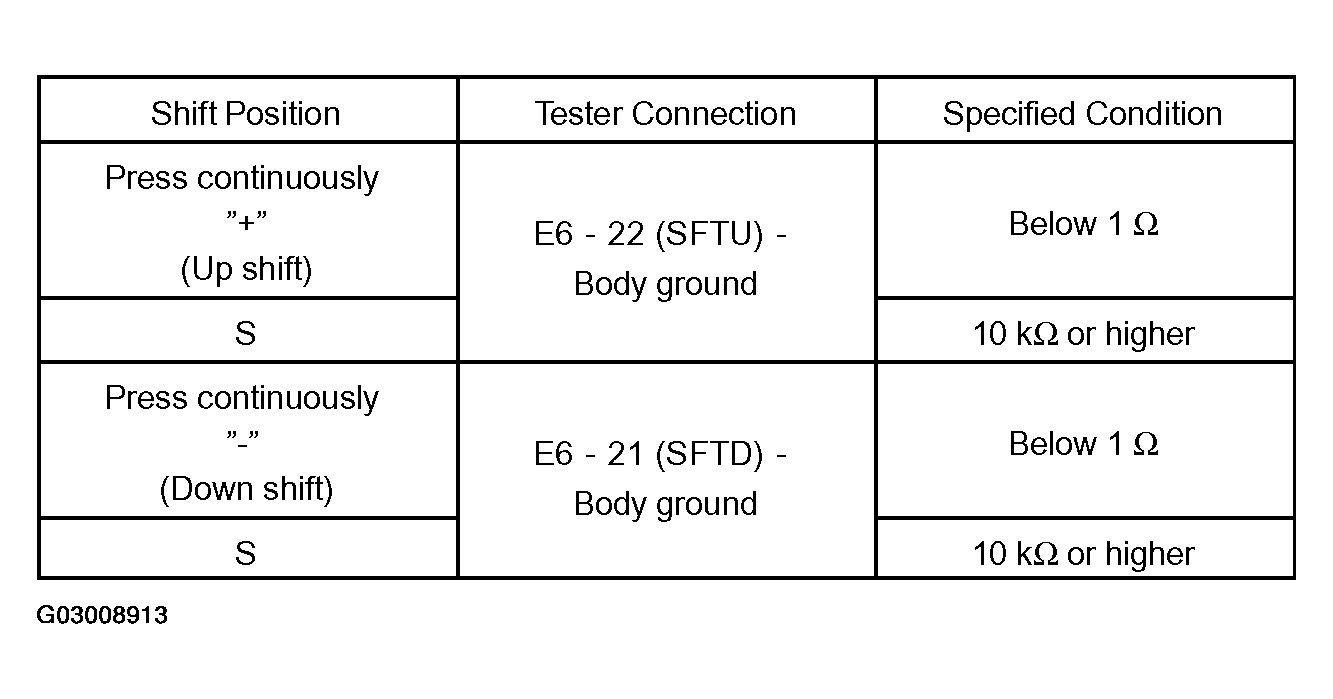

   Fig 8: Tester Connection Specified Condition Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

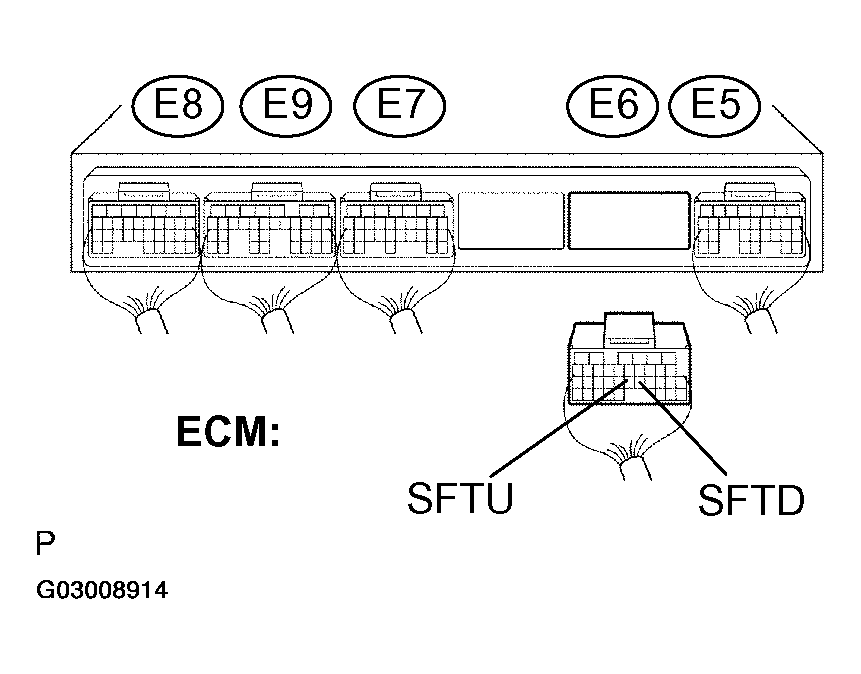

   Fig 9: Disconnecting ECM Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON  PROBLEM SYMPTOMS TABLE
