Power Mirror Control System (W/ Memory) - Diagnostics
›
Driving Position Memory Switch Circuit
›
Wiring Diagram
Driving Position Memory Switch Circuit: Wiring Diagram

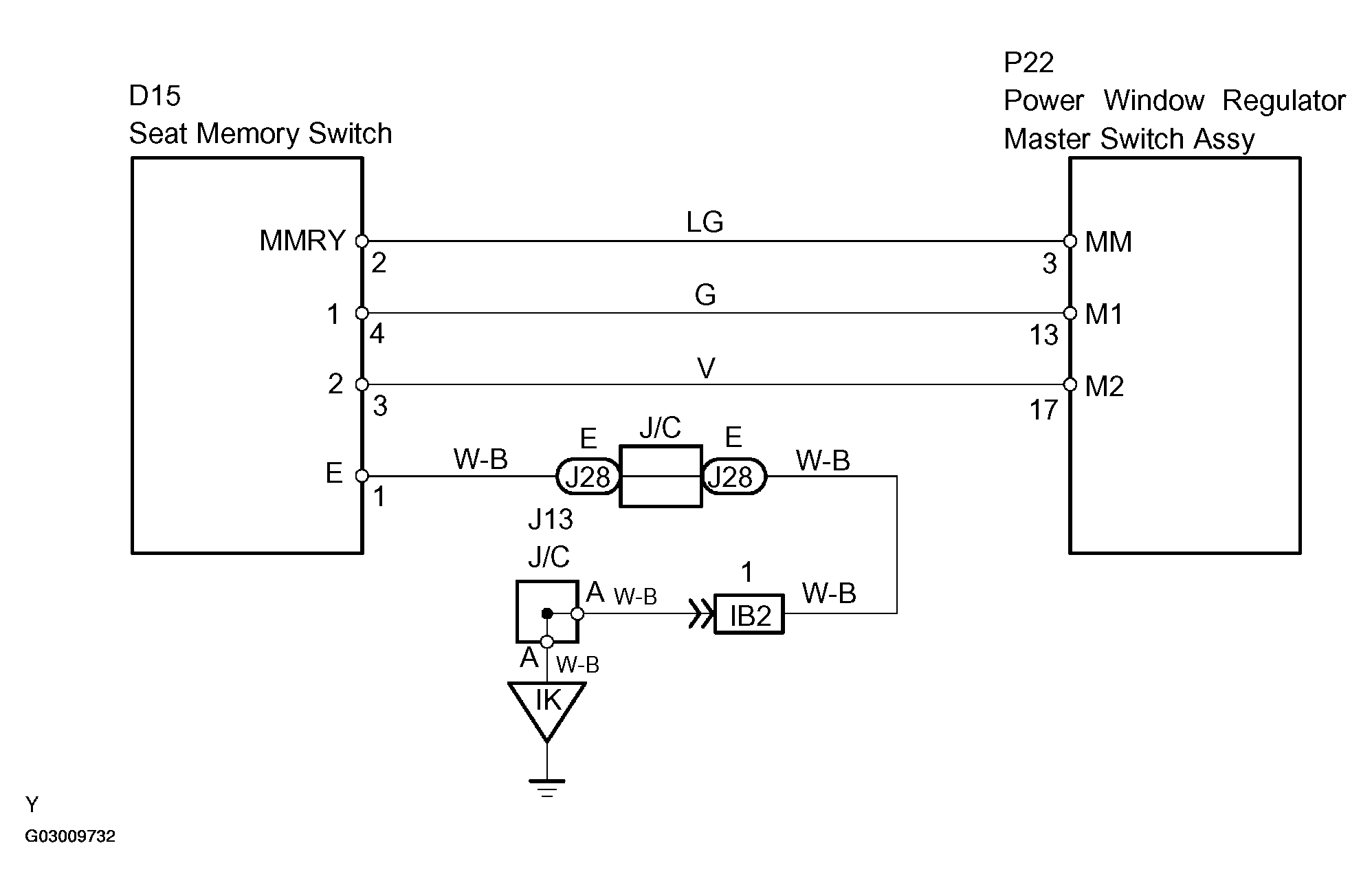

Fig 1: Driving Position Memory Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
