Fuel Pump Control Circuit: Wiring Diagram

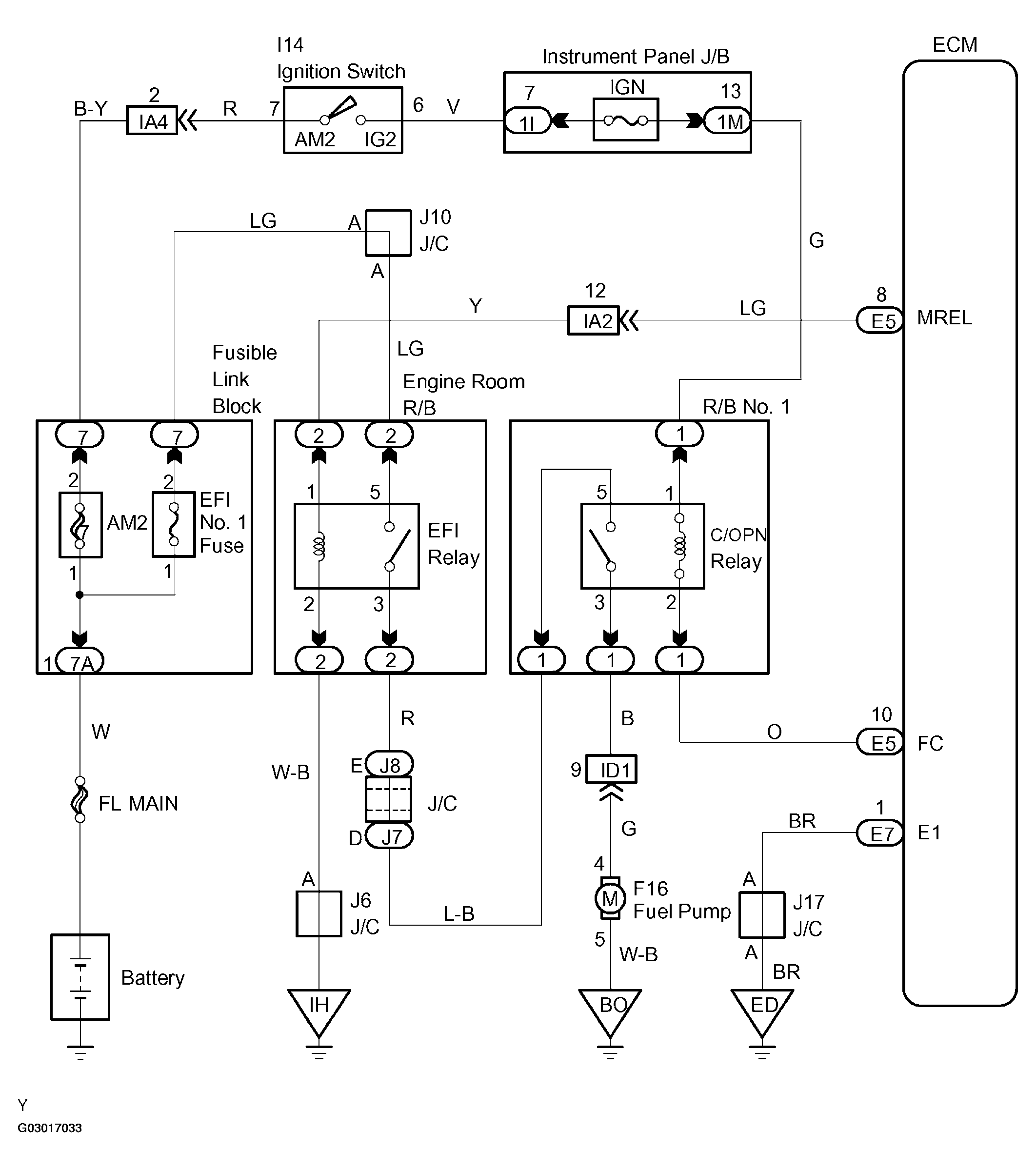

Fig 1: Fuel Pump Control Circuit Diagram
G03017033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
