SFI System - Diagnostics: Location

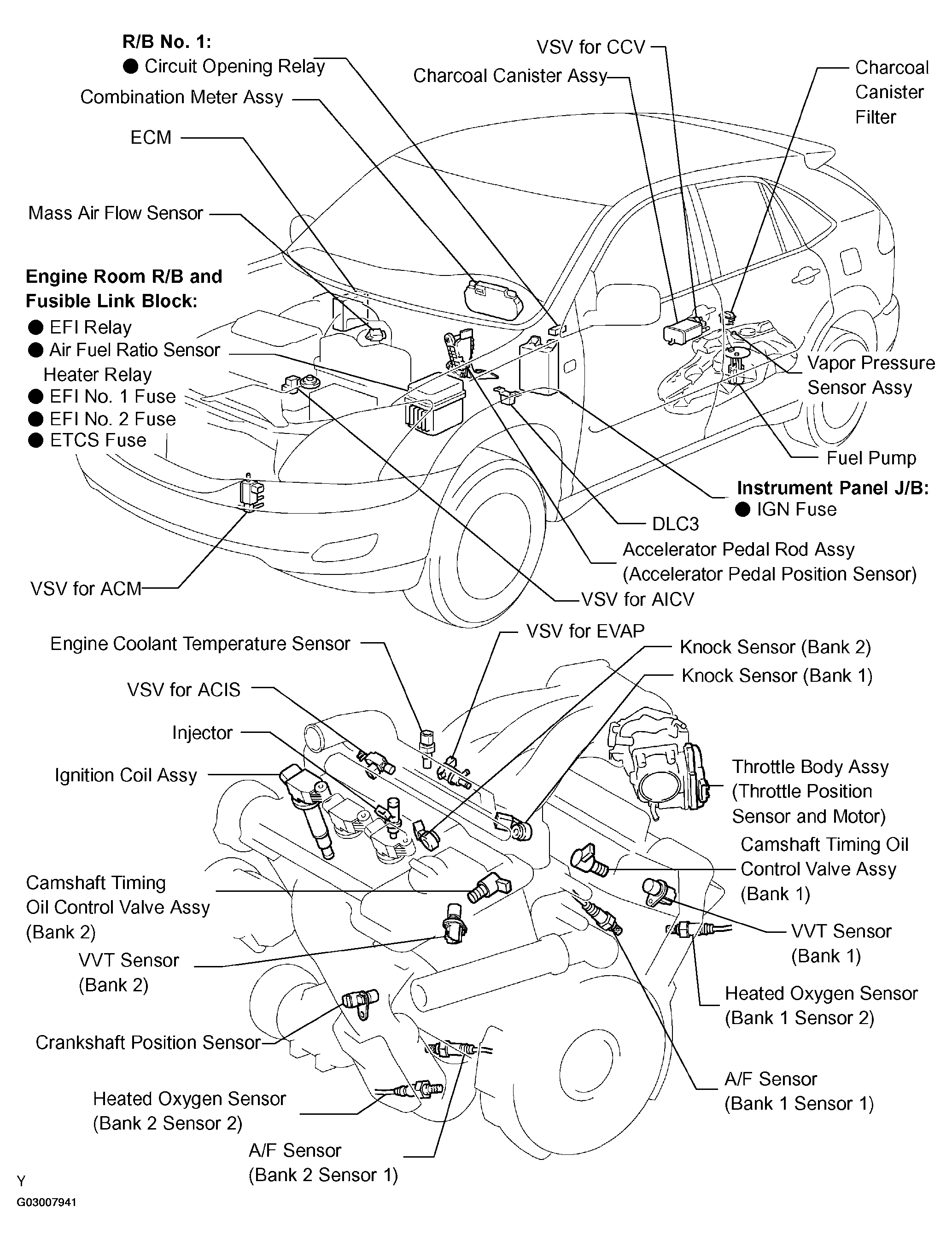

Fig 1: Locating SFI System (3MZ-FE)

G03007941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
